CYLINDER HEAD
Page 4A-18 90-828631R3 MARCH 1999

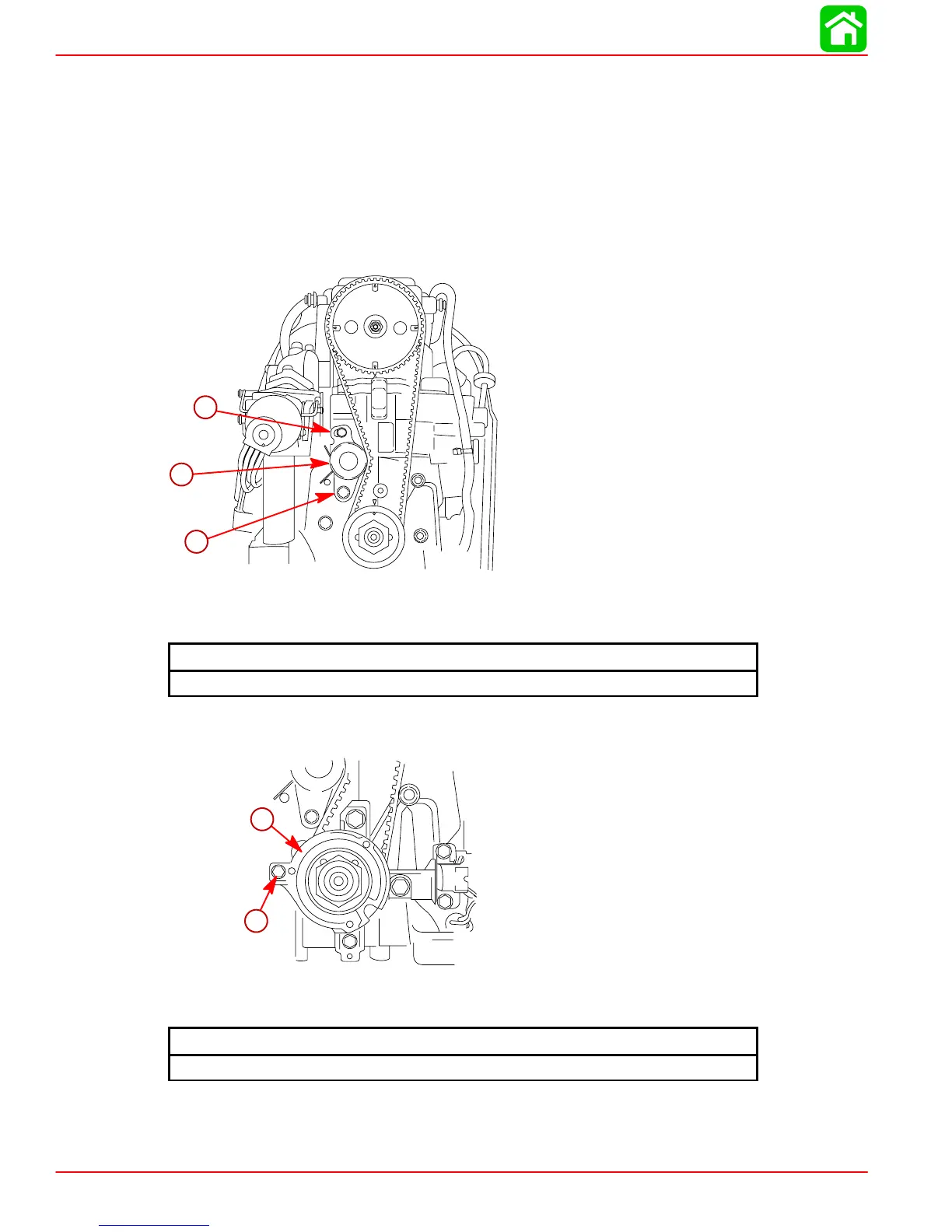

3. Install timing belt as follows:
• Align both gears with their alignment marks (Steps 1 and 2).
IMPORTANT: Make sure the Part Number on the belt is upright, not inverted.
• Install the timing belt around the gears as shown.
NOTE: The spring loaded belt tensioner will automatically apply the correct tension against
the belt.
• Allow the spring loaded belt tensioner to pivot against the belt. Fasten the belt ten-
sioner at this position.
30033
1
4
2
3
a
b
c
a-Belt Tensioner
b-Belt Tensioner Fastening Bolt
c-Belt Tensioner Pivot Bolt
Belt Tensioner Bolt Torque
Fastening Bolt (b) 221 lb–in. (25 Nm) Pivot Bolt (c) 70 lb-in. (8.0 Nm)
4. Reinstall trigger base with four bolts.
30033
a
b
a-Trigger Base
b-Mounting Bolts (4)
Trigger Base Bolt Torque
75 lb-in. (8.5 Nm)
To Next Page
