CYLINDER HEAD
Page 4A-22 90-828631R3 MARCH 1999
Cylinder Head Removal
1. Remove timing belt from driven gear.
2. Remove spark plugs leads from spark plugs.
3. Remove the throttle and shift levers from side of cylinder head.
4. Remove the cylinder head mounting bolts.
5. Separate the cylinder head from the block.
53727
a
b
c

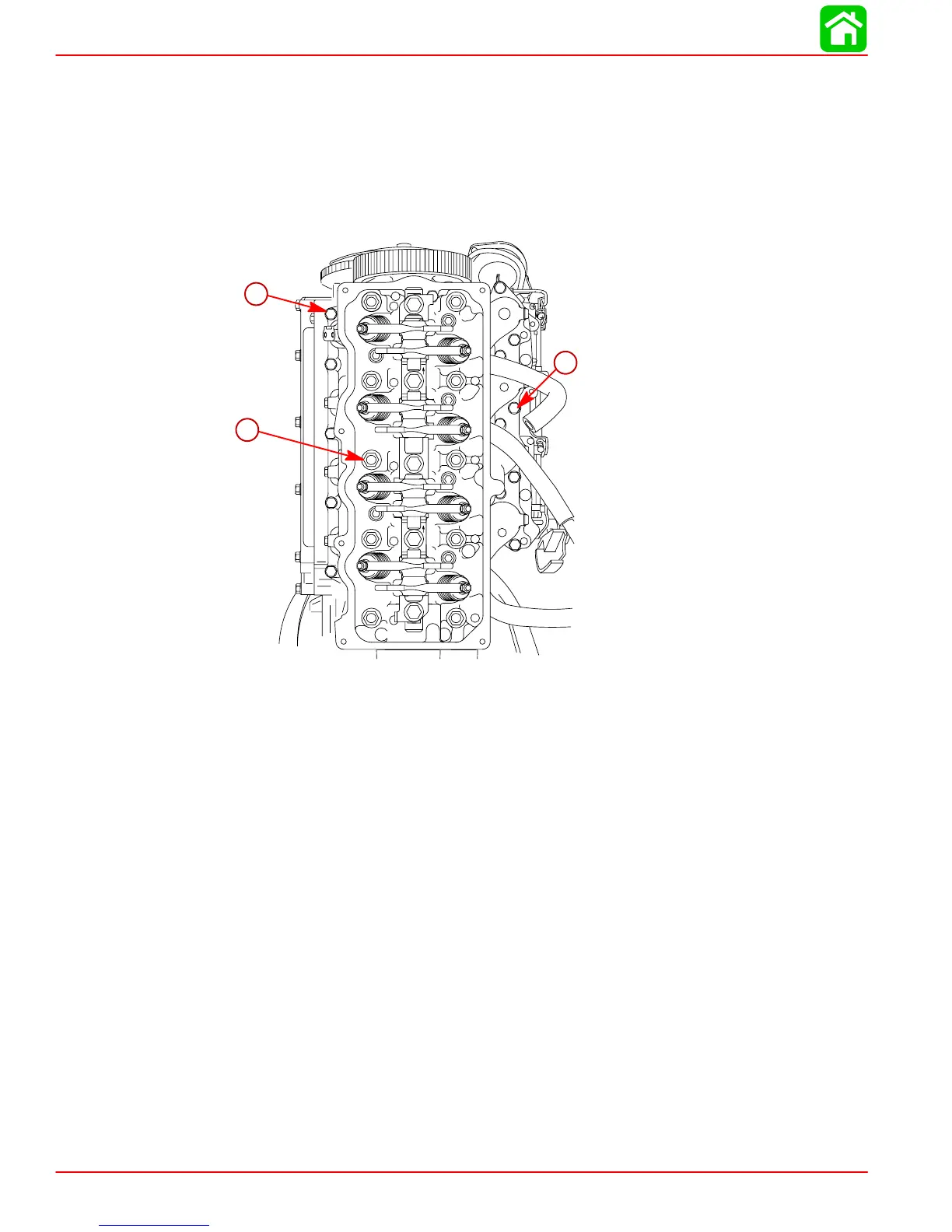

a-Center Bolts (10)
b-Flange Bolts (5)
c-Carburetor Bolts (8)
