POWER TRIM
Page 5B-40 90-828631R3 MARCH 1999

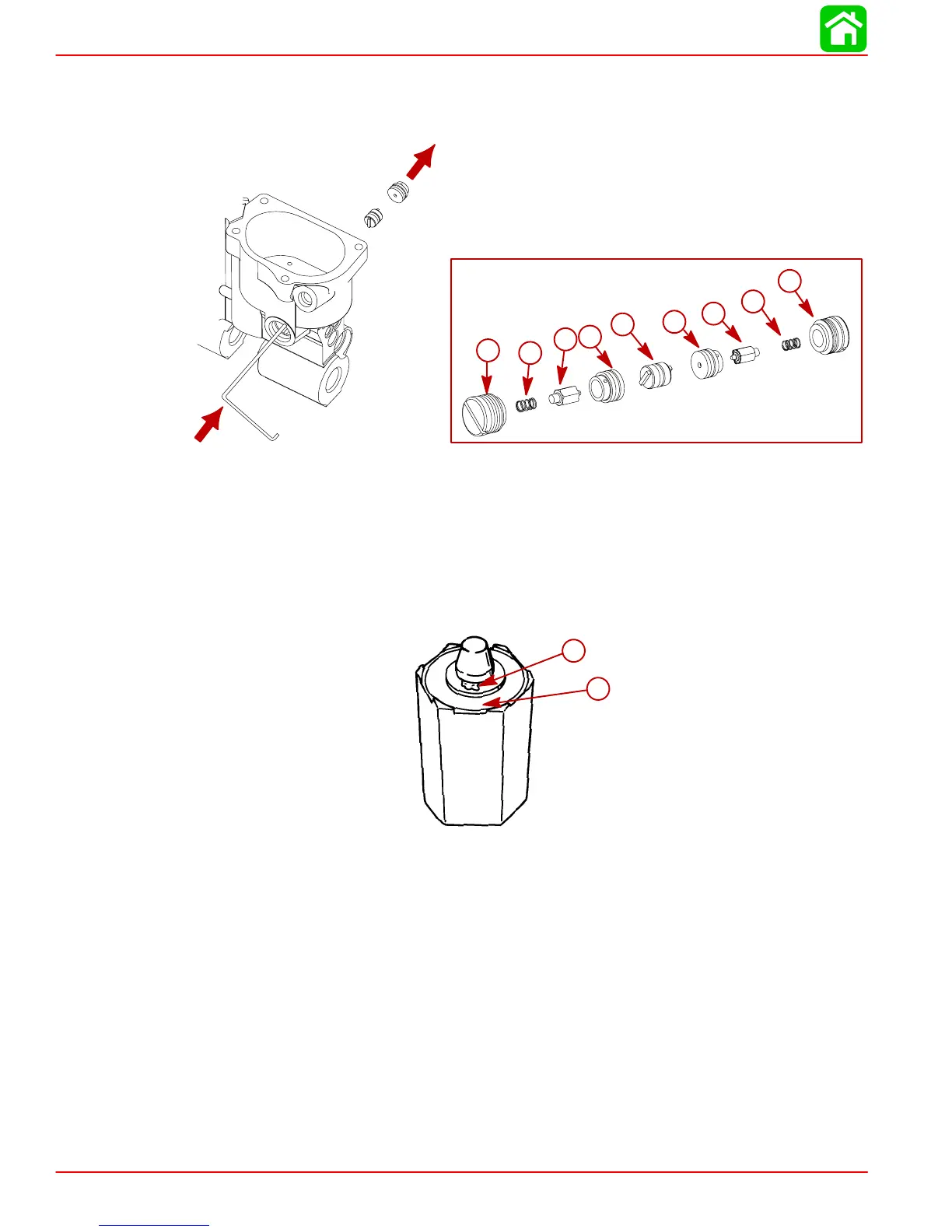

3. Use the (.060 wire) removal tool (see previous page) and push out the spool and one
seat.
4. From opposite side, use a punch and push out the remaining seat.
a
b
c
d
e
d
c
b
a
a-Plug (2)
b-Spring (2)
c-Poppet Assembly (2)
d-Seat (2)
e-Spool (1)
IMPORTANT: Inspect poppet assemblies for debris in the area shown. If debris is
found on poppets replace poppets.
a
b
a
b
a-Debris Under Valve Tip
b-Rubber Seat

Mercury 40 Specifications

General

Horsepower	40 hp
Starting System	Electric
Steering	Remote
Fuel Induction System	EFI (Electronic Fuel Injection)
Shaft Length	20"
Full Throttle RPM Range	6000
