Mercury 40 Service Manual

POWER TRIM
Page 5B-52 90-828631R3 MARCH 1999

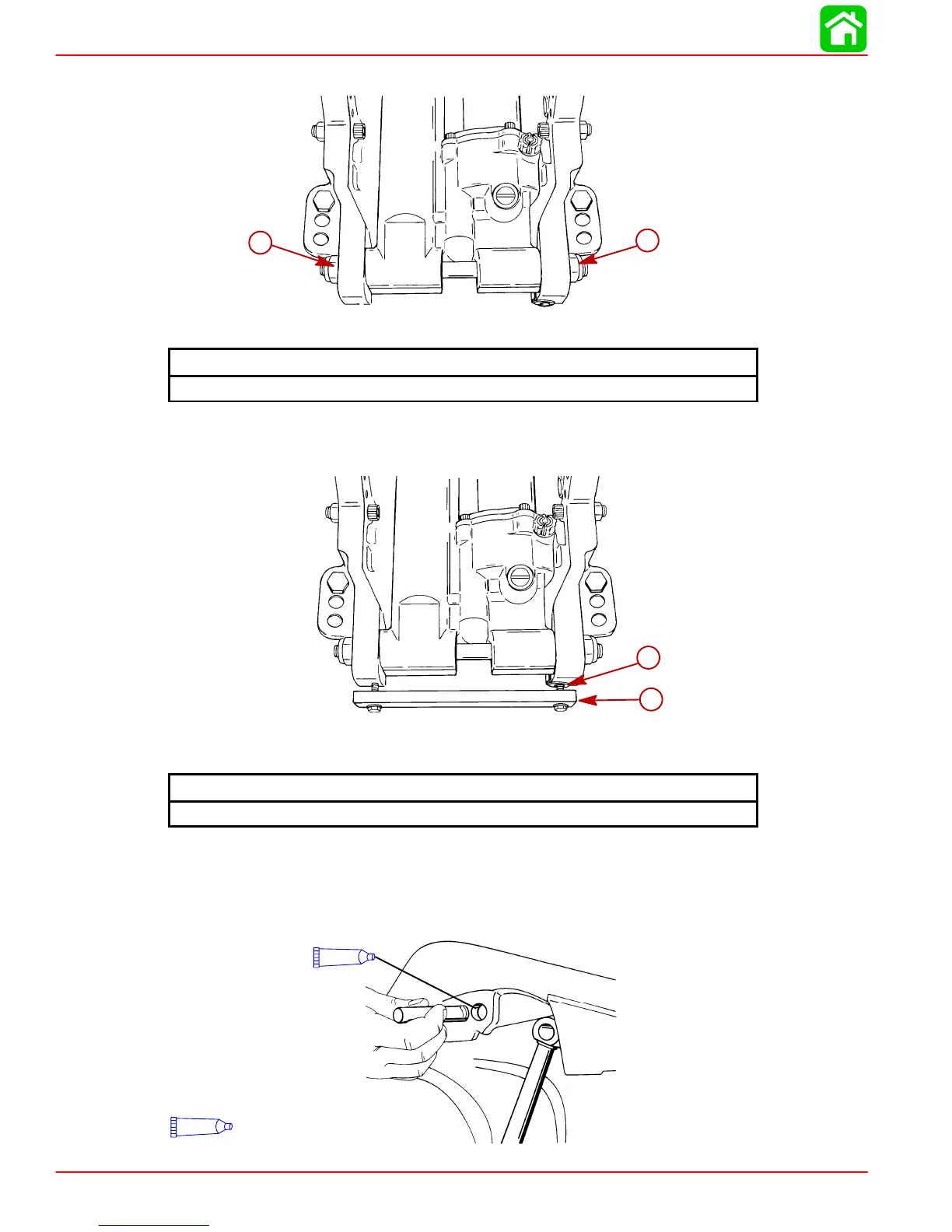

3. Install lower pivot pin. Secure with flat washers and nuts. Torque nuts to specified torque.
a
a
a-Nuts
Nut Torque
18 lb-ft (24.4 Nm)
4. Install sacrificial anode to clamp brackets. Fasten ground strap between anode and
clamp bracket. Torque bolts to specified torque.
a
b
a
b
a-Ground Wire
b-Sacrificial Anode
Bolt Torque
60 lb-in. (6.8 Nm)
5. Lubricate the upper pivot pin and mounting holes with 2-4-C Marine Lubricant.
6. Fasten shock rod with the upper pivot pin.
NOTE: Pivot pin should be installed with grooved end inserted first.
95
2-4-C w/Teflon (92-850736A1)
95

Mercury 40 Specifications

General

Horsepower	40 hp
Starting System	Electric
Steering	Remote
Fuel Induction System	EFI (Electronic Fuel Injection)
Shaft Length	20"
Full Throttle RPM Range	6000
