POWER TRIM
90-828631R3 MARCH 1999 Page 5B-53

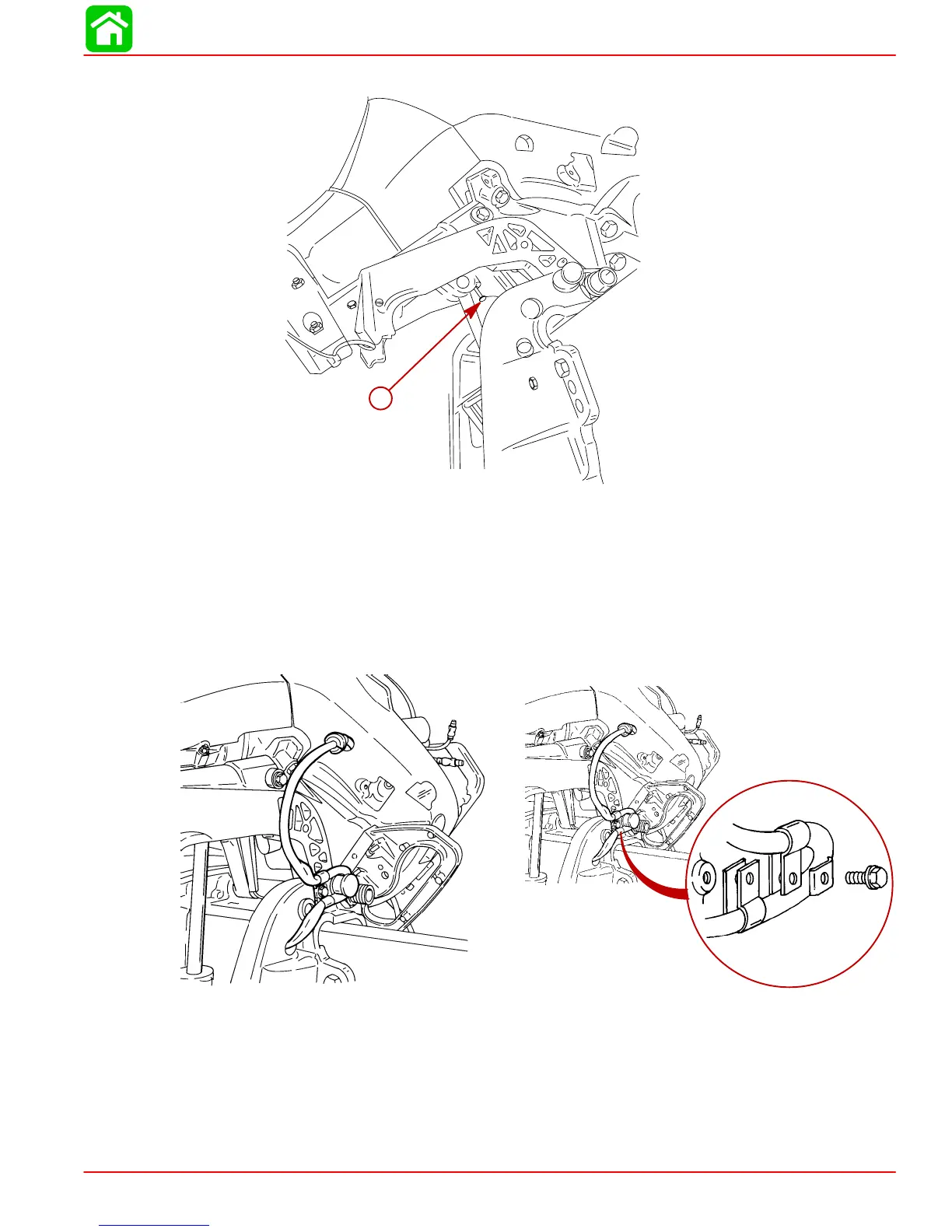

7. Secure upper pivot pin with trilobe pin. Press trilobe pin in until its fully seated.
a
a
a-Trilobe Pin
8. Re-connect trim wire harness leads (see wiring diagram Section 2D for proper connec-
tions).
9. Recheck fluid level (tilt/trim rod fully extended).
10. Route wire harness through clamp bracket and cowling.
11. Secure wire harness with clamps as shown.
