Mercury 40

POWER TRIM
Page 5C-14 90-828631R3 MARCH 1999
Trim Down
Up Pressure
1625 psi (30-60 hp)
2800 psi (75-125 hp)
minimum
Í
Í
Í
Í

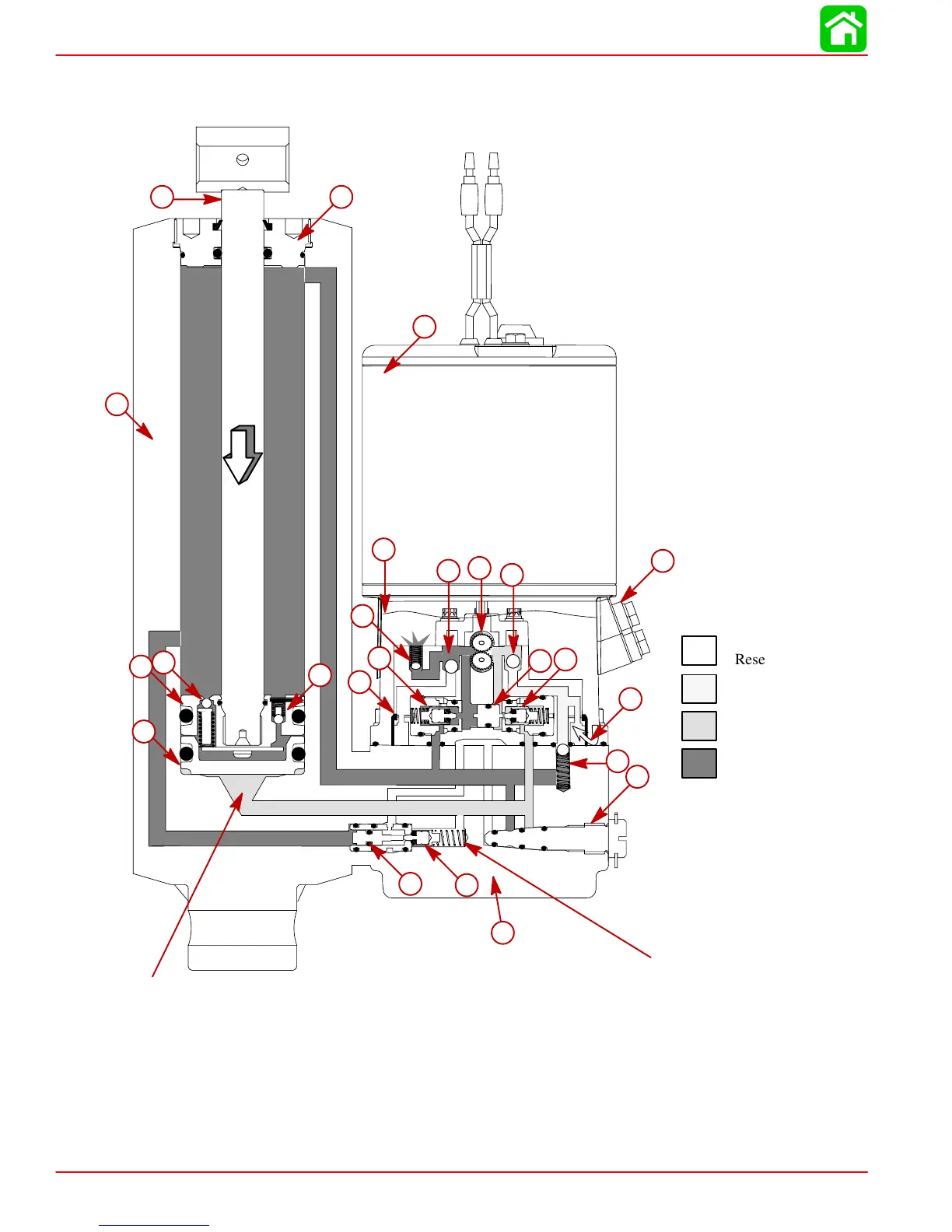

Reservoir Oil
Filtered Feed Oil
Oil Under Pressure
Return Oil
Tilt Relief Pressure
250-400 psi (30-60 hp)
500-700 psi (40-60 hp Bigfoot)
540-990 psi (75-125 hp)
Impact Relief Pressure #22
880-1110 psi (30-60 hp)
1220-1420 psi (75-125 hp)
