BIGFOOT GEAR HOUSING
90-828631R3 MARCH 1999 Page 6B-31

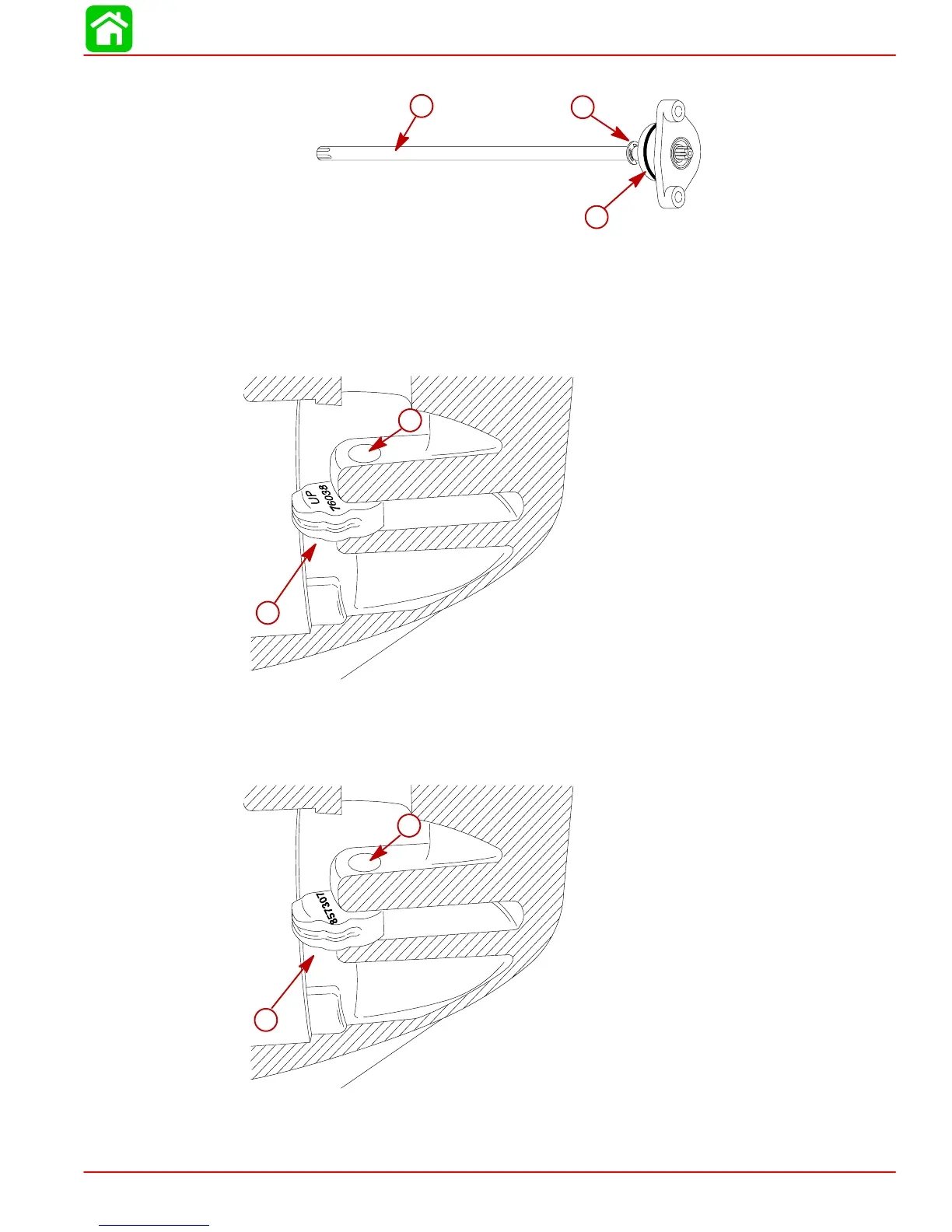

5. Assemble components as shown.
53928
a
b
c
a-Shift Shaft
b-“E” Clip
c-Shift Shaft Bushing
6. Install shift cam; align hole in shift cam with hole in gear housing.
60 Bigfoot 75/90/100/115/125
51117
a
b
a-Shift Cam (marked with “UP” and part number)
b-Gear Housing Hole
60 Bigfoot 75/90/100/115/125
51117
a
b
a-Shift Cam (marked with part number only)
b-Gear Housing Hole
