BIGFOOT GEAR HOUSING

Page 6B-34 90-828631R3 MARCH 1999

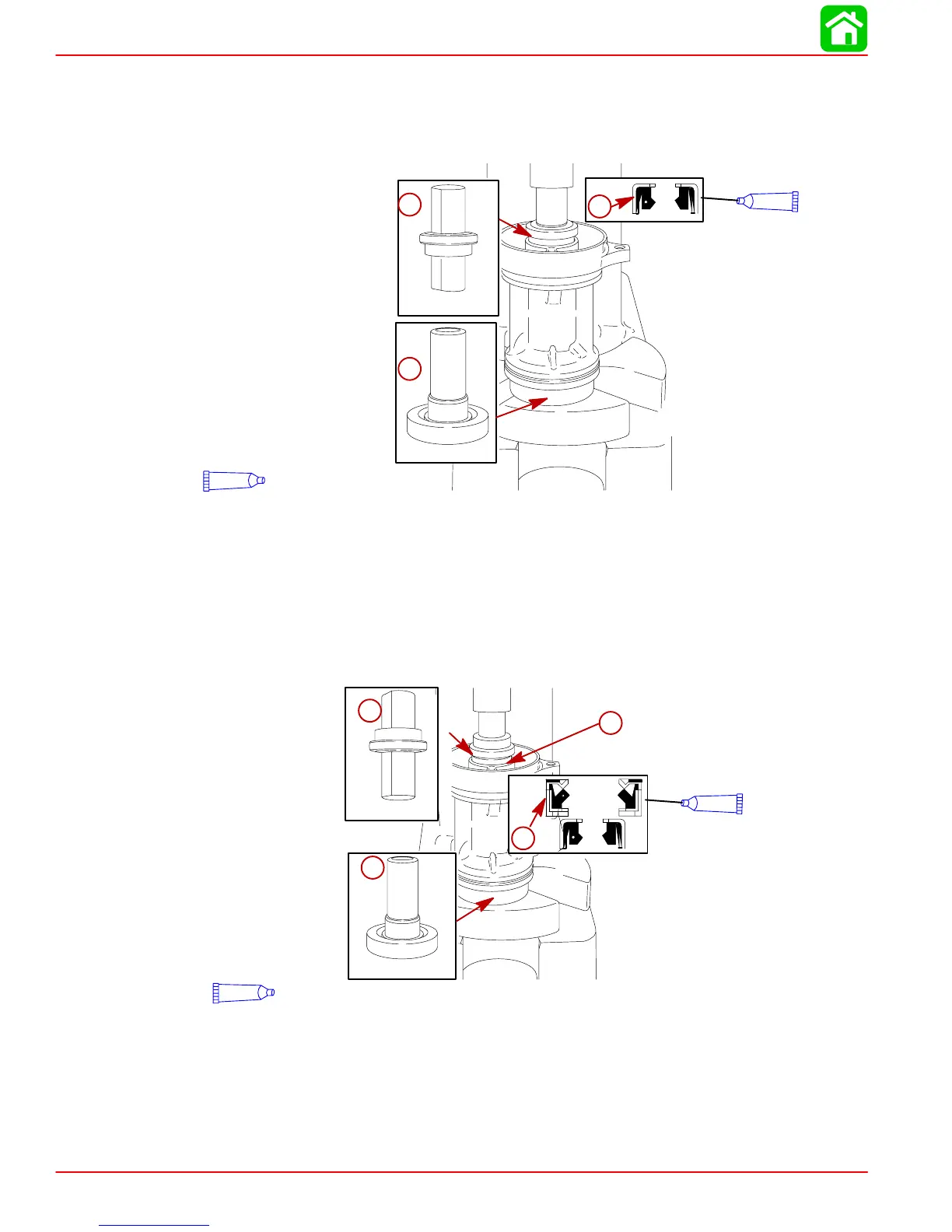

4. Place smaller diameter seal on longer shoulder of Oil Seal Driver (91-31108) with seal

lip away from shoulder.

5. Protect lip on front side of bearing carrier using Bearing Installation Tool (91-13945).

Apply Loctite 271 on O.D. of seal. Press seal into carrier until tool bottoms.

21040

Loctite “271” (92-809819)

91-31108

91-13945

a-Seal

b-Oil Seal Driver (91-31108)

c-Bearing Installation Tool (91-13945)

6. Place larger diameter seal on shorter shoulder of Oil Seal Driver (91-31108) with seal

lip toward shoulder.

7. Protect lip on front side of bearing carrier using Bearing Installation Tool (91-13945).

Apply Loctite 271 on O.D. of new seal. Press seal into carrier until tool bottoms.

21041
