BIGFOOT GEAR HOUSING
90-828631R3 MARCH 1999 Page 6B-59
Models 60 Bigfoot

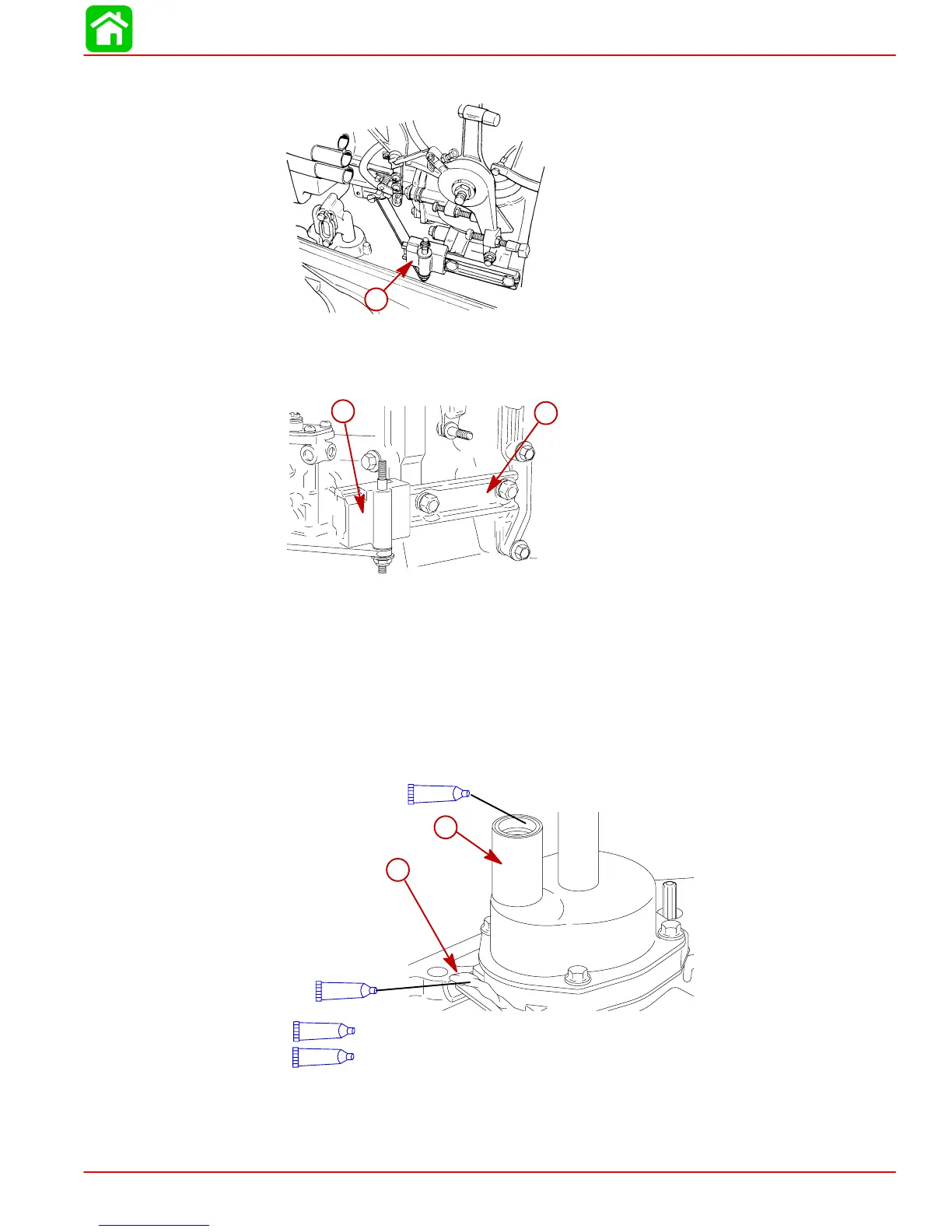

a
a-Shift Block
Models 75/90/100/115/125
19879
a
b
a-Shift Block; Front of Block MUST Extend 1/8 in. (3.2 mm) Past Front of Rail.
b-Rail
2. Tilt engine to full up position and engage tilt lock lever.
3. Shift gear housing into neutral position. Propeller shaft will rotate freely in either direc-
tion.
4. Install water tube seal; lube I.D. of seal with Quicksilver 2-4-C w/Teflon.
5. Apply a bead of RTV Sealer as shown.
53938
a
b
95
2-4-C w/Teflon (92-850736A1)
85
RTV Silicone Sealer (92-91601-1)
85
95
a-Water Tube Seal
b-RTV Sealer
