Section 5 - Maintenance
Page 108 90-866938081 MAY 2009

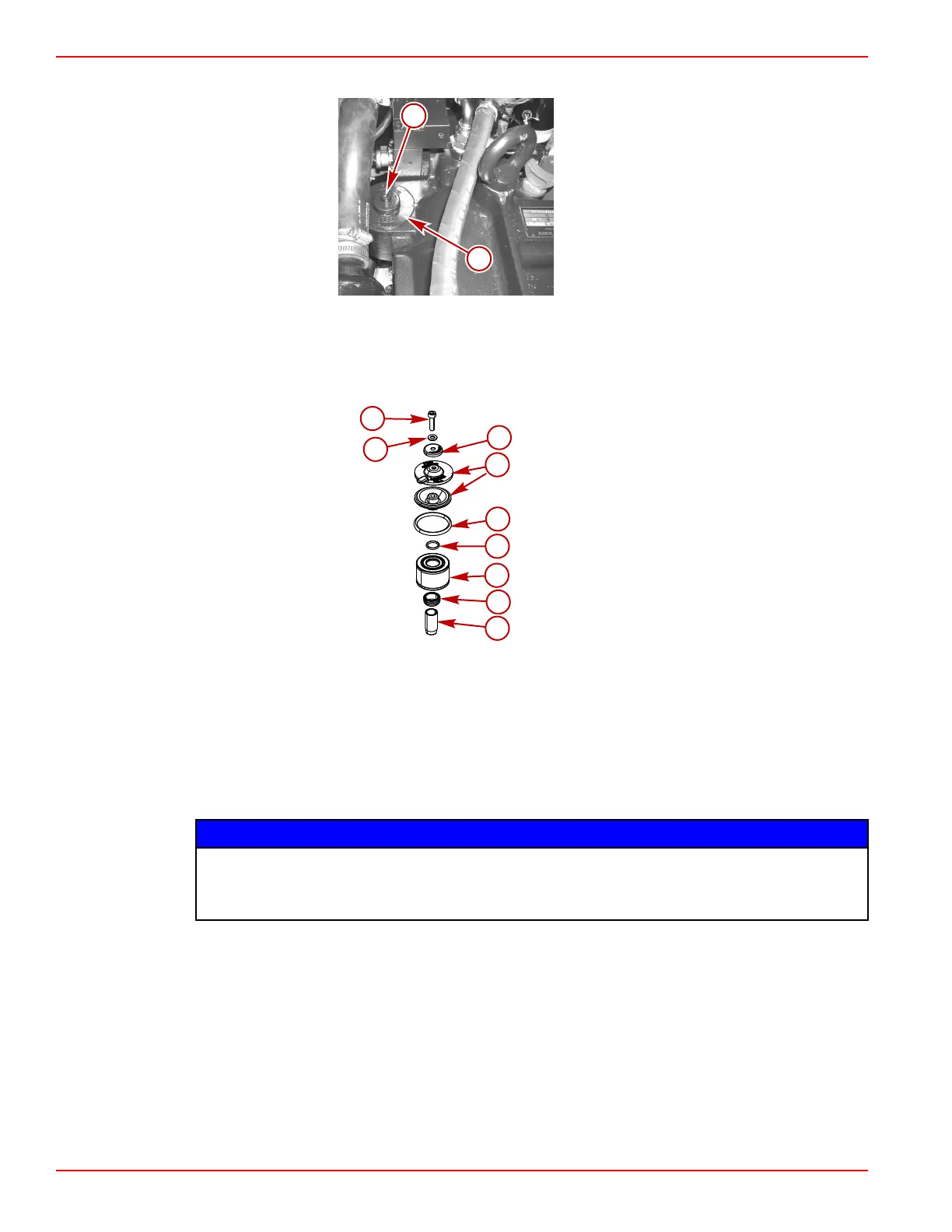

7. Use a 6M Allen wrench and remove the oil filter assembly screw.
a - Fluid filter assembly
b - Assembly screw
8. Remove the filter cover assembly.
9. Remove and discard the filter element and the O‑rings.
a - Assembly screw
b - Washer
c - Cover
d - Filter cover assembly
e - O‑ring
f - O‑ring
g - Filter element
h - Seal
i - Oil pipe
10. Coat the new O‑rings with transmission oil.
11. Install the new O‑rings and filter element.
NOTICE
Improper installation of the transmission fluid filter assembly may cause the fluid to foam
or leak out, resulting in decreased efficiency and damage to the transmission. Properly
seat the transmission fluid filter during installation.
12. Install the oil filter assembly in the transmission cavity by turning the assembly
clockwise during installation.
