Meva MevaLite - Page 10

ML-10
MevaLite
System Panel Sizes
High degree of flexibility
The formwork is extended in
height using panels assembled
vertically or horizontally on top
of the lower panels. The wide
range of panel heights and widths
ensures:
Æ Economical height extension
in 6” incre ments through
combined horizontal and vertical
assembly.
Æ Uniform joint grid.
Vertical joints:
For 3’ high panels, you need just
one 5/8” (15 mm) tie.
The 4’ and 6’ high panels require 2
ties and the 9’ high panels require
3 ties.
In general, all tie positions pre-
determined by the system must
be used.

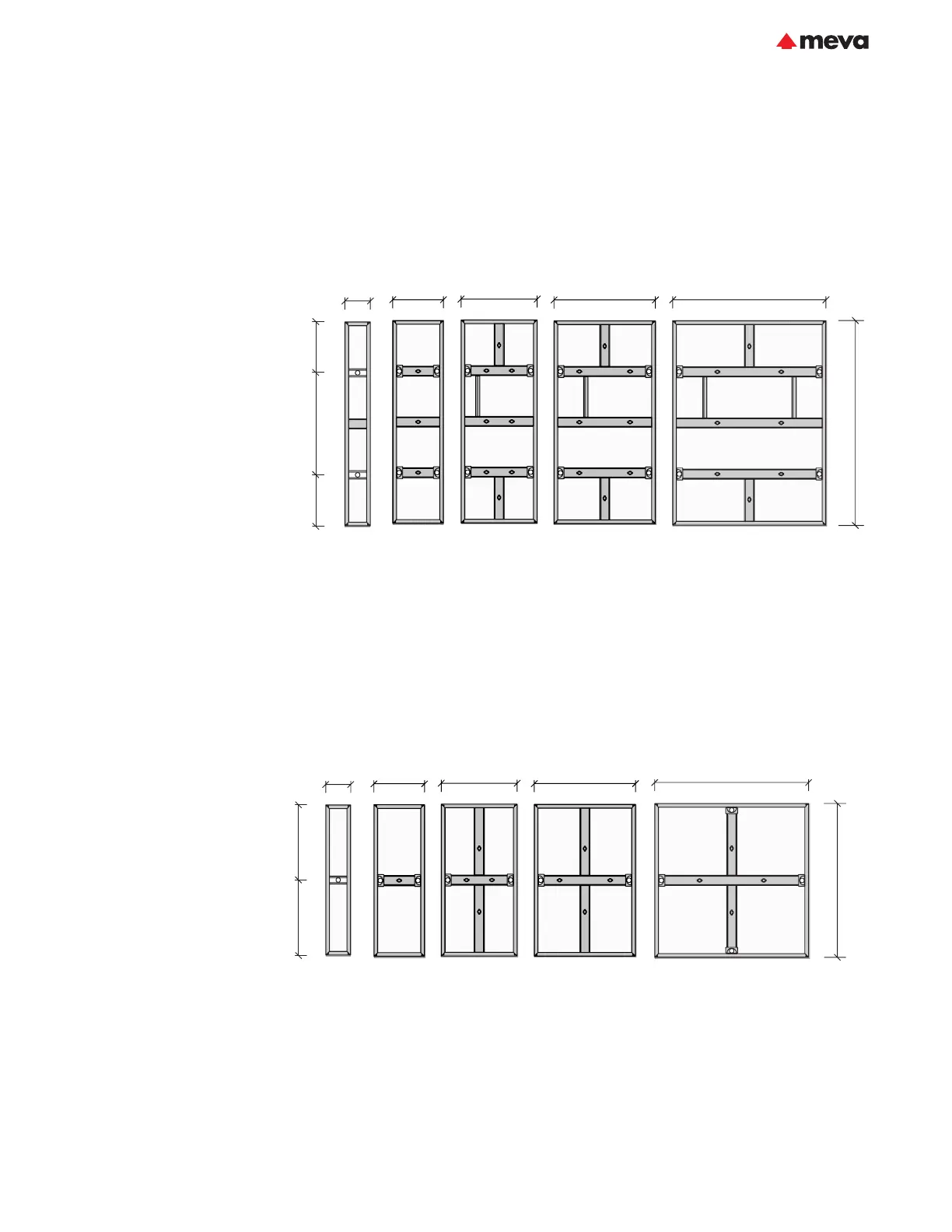

Panel height: 4’
Panel height: 3’
Fig. 10.1 Fig. 10.2 Fig. 10.3 Fig. 10.4 Fig. 10.5
1'
6" 1'
1'-6"
2'
3'
4'
4 x 1
4 x 1.5
4 x 2
4 x 3
4 x 0.5
1'
2'
Fig. 10.6 Fig. 10.7 Fig. 10.8 Fig. 10.9 Fig. 10.10
1'-6"
6"
1' 1'-6"
2'
3'
3'
3 x 1
3 x 1.5
3 x 2
3 x 3
3 x 0.5
1'-6"
Wall formwork
Technical Instruction Manual / June 2022
