MevaLite
ML-11
System Panel Sizes
Multi-purpose panels
The multi-purpose panels are ideal
for forming 90° corners, columns,
pilasters, bridge abutments and
connections to existing walls.
The panels are provided with
multi-adjustment profiles where
column clamps or ties are
mounted.
The panels come with pilot holes
on the back side for drilling
selected tie holes at exact
locations.
Plug the unneeded tie holes with
Plug D27/30.
The 9’ panels have 3
multi-adjustment profiles, the
6’ and 4’ panels have 2 multi-
adjustment profiles and the 3’
panel has 1 multi-adjustment
profile.
Threaded sleeves are also provided
on the frame sides at each tie hole
elevation for tensioning screw
connections.

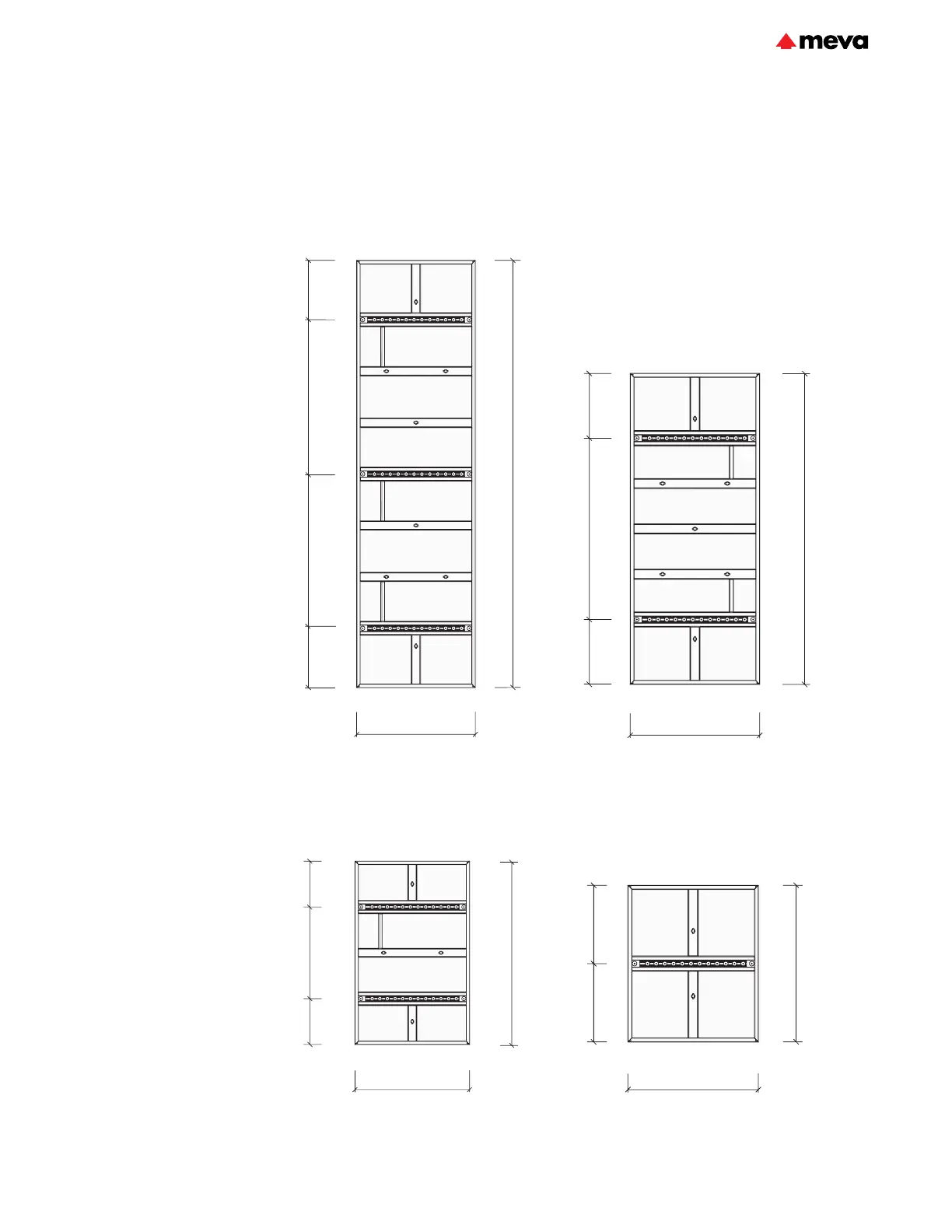

Fig. 11.1 Fig. 11.2
Fig. 11.3 Fig. 11.4
1'-3"
2'-6"
1'-3"
1'-3"1'-3"
3'-3" 3'-3"
3'-6"
9'
6'
2'-6"
2'-6"
2'-6"
1' 1'
2'
1'-6"
1'-6"
4'
3'
MPP 9 x 2.5
MPP 6 x 2.5
MPP 4 x 2.5
MPP 3 x 2.5
Wall formwork
Technical Instruction Manual / June 2022
