Stripping Corners - Retract and Reset Tool
Stripping Corner - Retract and
Reset Tool
The retract and reset tool
(Fig.24.1) is used to easily activate
the stripping corner from above
with an impact wrench, a ratchet
or a wrench.
The retract and reset tool has a
hexagonal nut that is operated
with tools with a width across flats
of 36mm (1 17/16").
Assembly
Temporarily remove wedge from
top of stripping corner, then place
the retract and reset tool onto the
connecting device at the top of the
stripping corner.
Connect the retract and reset tool
to the stripping corner with the
head bolt and cotter pin that are
both integrated into the tensioning
screw of the retract and reset tool
(Fig.24.2).
Lock the retract and reset tool to
the stripping corner by driving
the stripping corner’s wedge with
a few hammer blows into the
opening of the retract and reset
tool (Fig.24.2).
Description Ref.-No.
ML-stripping corners
9’...............................................22-508-00
6’...............................................22-508-10
4’...............................................22-508-20
Stripping corner retract and
reset tool ...................................29-306-32
EA-assembly lock .......................29-205-50
Uni-assembly lock 22 .................29-400-85

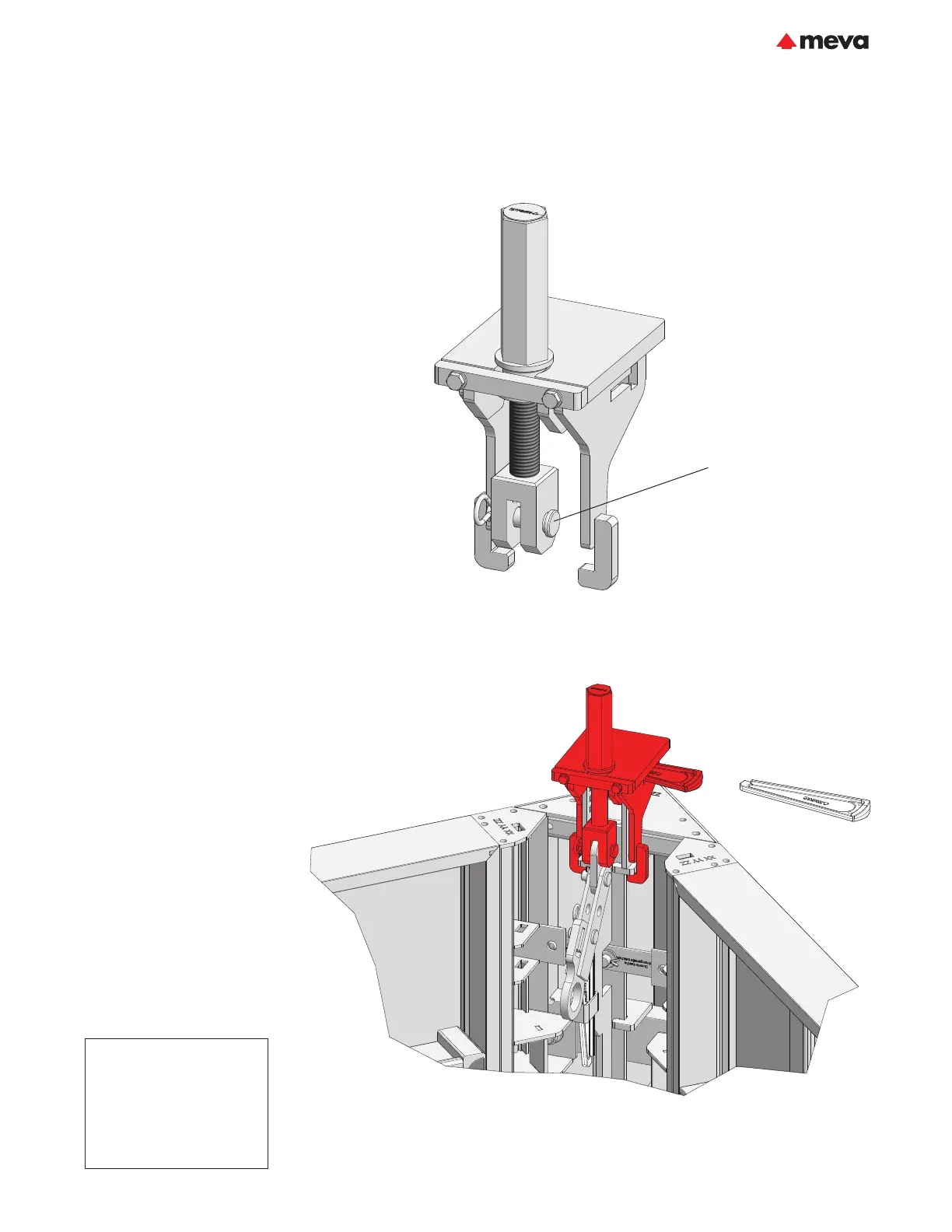

Fig. 24.1
Fig. 24.2
Head bolt and cotter pin
Wall formwork
