ML-26
MevaLite
Stripping Corners - Retract and Reset Tool
Re-setting:
To reset the corner again, just
push the stripping mechanism
downwards by using the same
tools (Fig.26.1 - Fig.26.4).
Once the inner channel is pushed
all the way down, the corner is
reset into place.
Remove the tool and reinstall the
wedge.
Description Ref.-No.
ML-stripping corners
9’...............................................22-508-00
6’...............................................22-508-10
4’...............................................22-508-20
Stripping corner retract and
reset tool ...................................29-306-32
EA-assembly lock .......................29-205-50
Uni-assembly lock 22 .................29-400-85

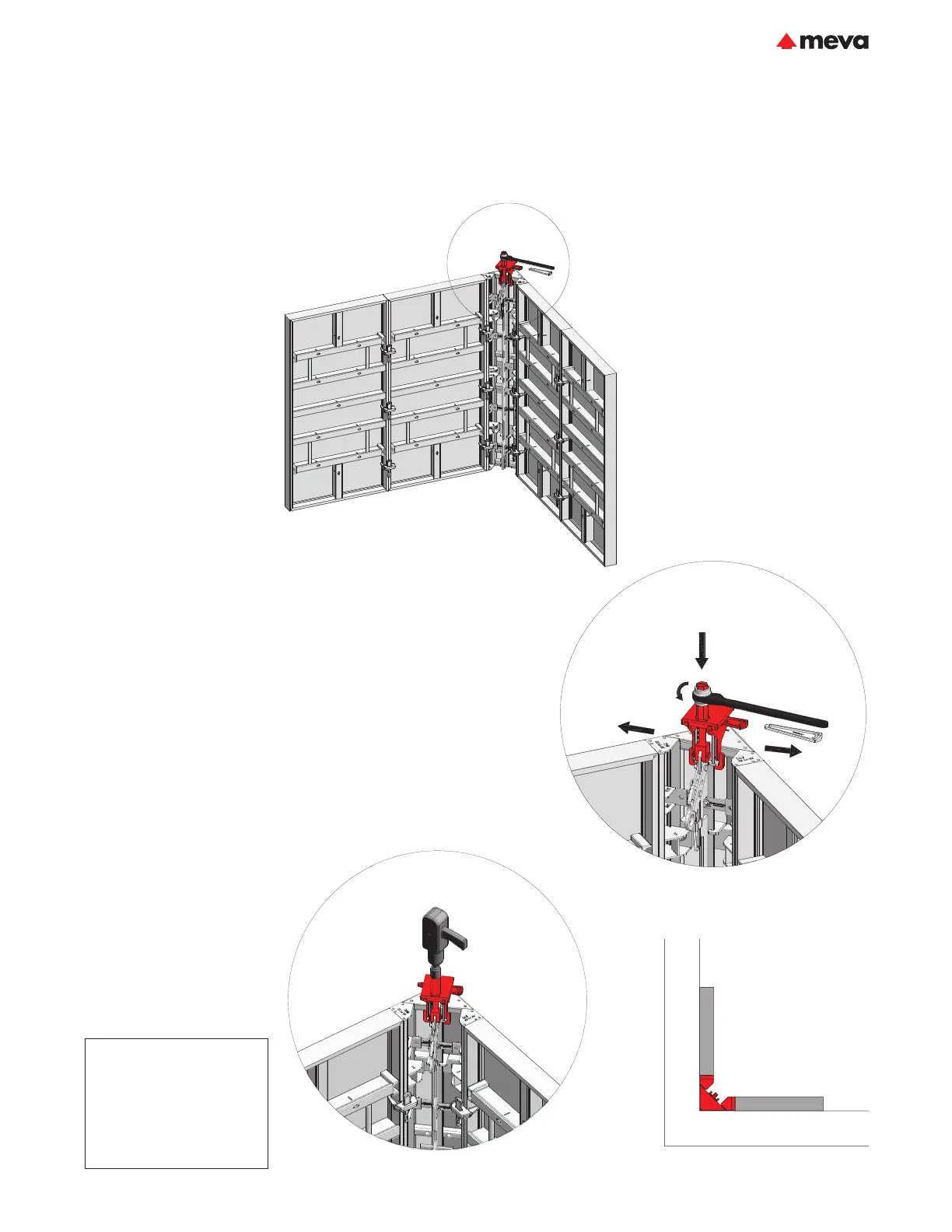

Fig. 26.4 Expanded (reset/pouring) position
Fig. 26.1
Fig. 26.2
Fig. 26.3
