MFZ Ovitor Control CS 310 - Page 10

10 – Control CS 310 / Rev.I 1.55 Control CS 310 / Rev.I 1.55 – 11
Key switch
A
C
X3
5.6 / 5
Legend :
A Button / DOWN input
B Button / pulse input
C Button / UP input (UP inside, with active two-way
control)
D STOP button

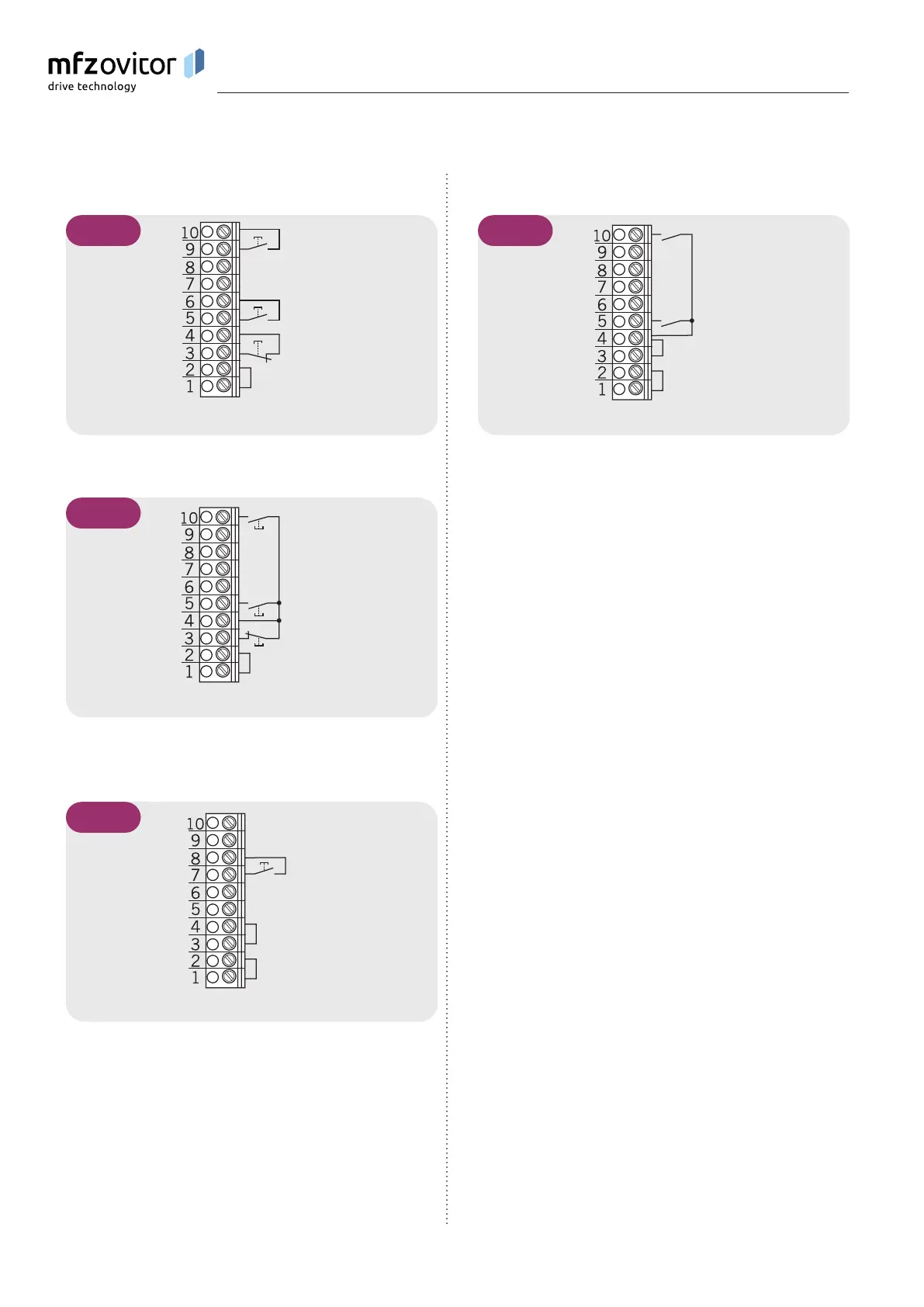

Installation
UP / STOP / DOWN button (6-wire solution)
X3
A
C
D
5.6 / 2
UP / STOP / DOWN button (4-wire solution)
X3
A
C
D
5.6 / 3
Pulse button
Not active in manual mode (Dead-man)
B
X3
5.6 / 4
