5.7 Connection of closing edge safety
device1
The closing edge safety device will be recognised and
programmed automatically during initial use and following
a RESET. If a closing edge safety device is not connected, the
input will be queried every time the power supply is switched
on again, until a closing edge safety device is recognised. If a
change is made at a later date, the relevant system must be
selected via a parameter setting in INPUT mode.
➔ “10.2 Input operating mode“
NOTICE:
Closing edge protective device 1 only active in CLOSE
direction.
Optoelectronic closing edge protective device (OSE)
Parameter SKS = MOD1
+
-
1
2
3
4
5
6
7
8
9
12
11
10
X4
WH
GN
BN

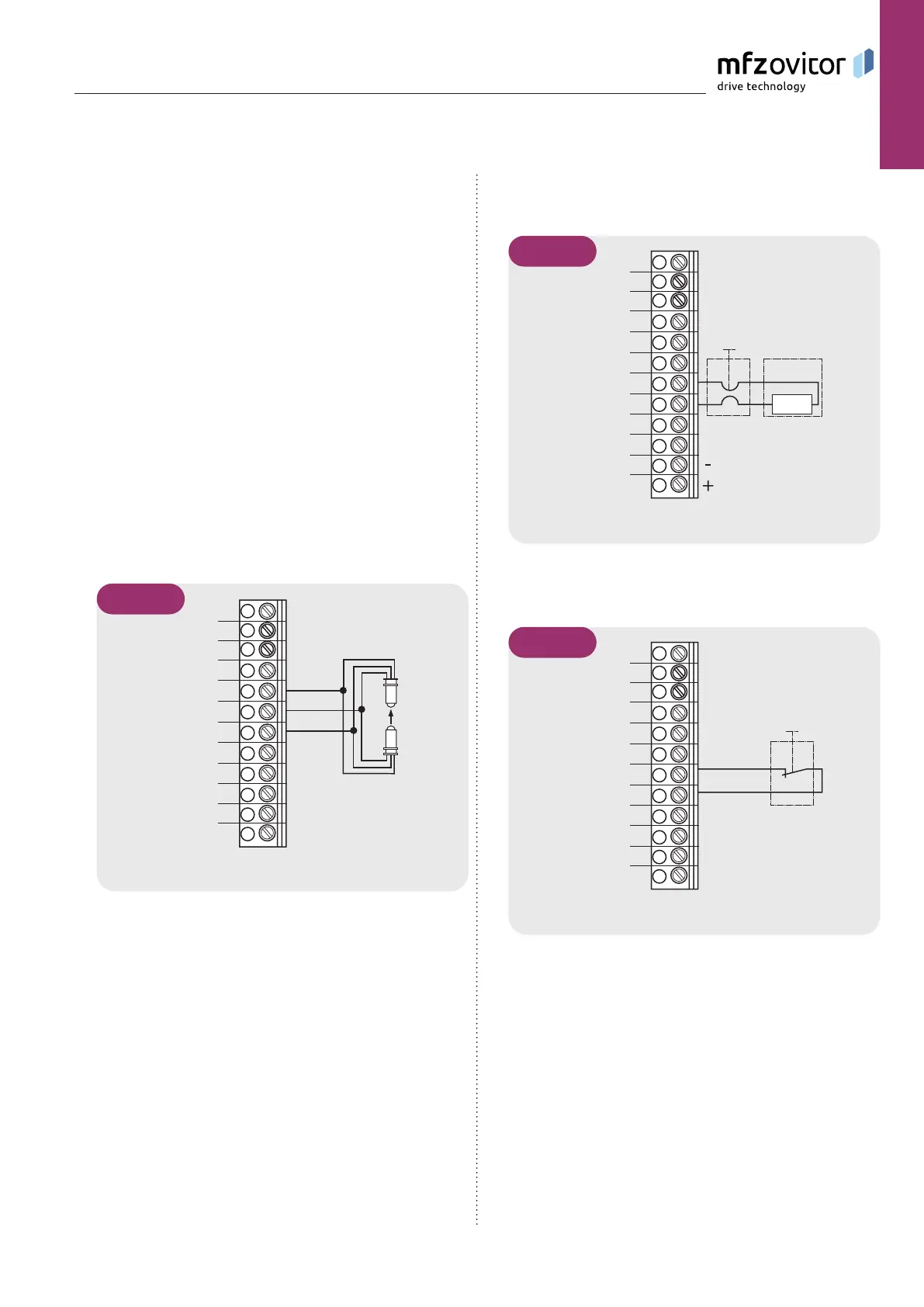

5.7 / 1
Legend:
WH White
GN Green
BN Brown
Electrical closing edge protection (8.2 kOhm)
Parameter SKS = MOD2
8k2
1
2
3
4
5
6
7
8
9
12
11
10
X4
5.7 / 2
Pneumatic closing edge protection (DW)
Parameter SKS = MOD3 / testing automatically active
+
-
1
2
3
4
5
6
7
8
9
12
11
10
X4
5.7 / 3
