Workstation 5 Field Service Guide 1-3
Introduction to the WS5 FRUs
Casework and Mag Card Reader
Casework and Mag Card Reader
Figure 1-1, below illustrates all plastic components and the Mag Stripe Reader
Assembly.

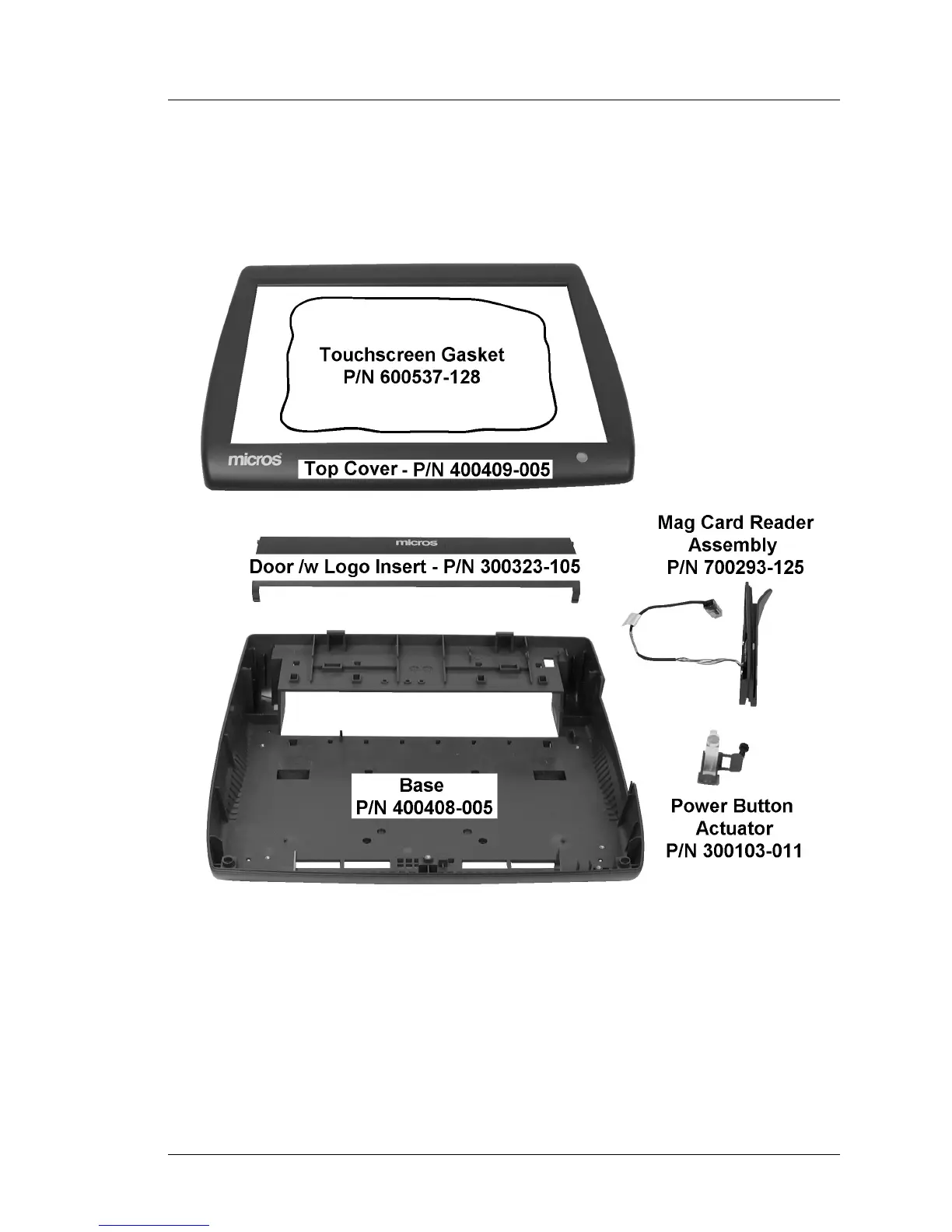

Figure 1-1: Workstation 5 Casework and Mag Card Reader
• Touchscreen Gasket, Workstation 5 - P/N 600537-128
The touchscreen gasket is pressed into a groove around the inside of the
Top Cover.
• Top Cover, Workstation 5 - P/N 400409-005
Includes Operator LED lens and captive mounting screws pre-installed.
Touchscreen Gasket not included.
