1-8 Workstation 5 Field Service Guide

Introduction to the WS5 FRUs

LCD and Touchscreen Assembly

Figure 1-4, displays the FRUs associated with Workstation 5 LCD and

Touchscreen Assembly.

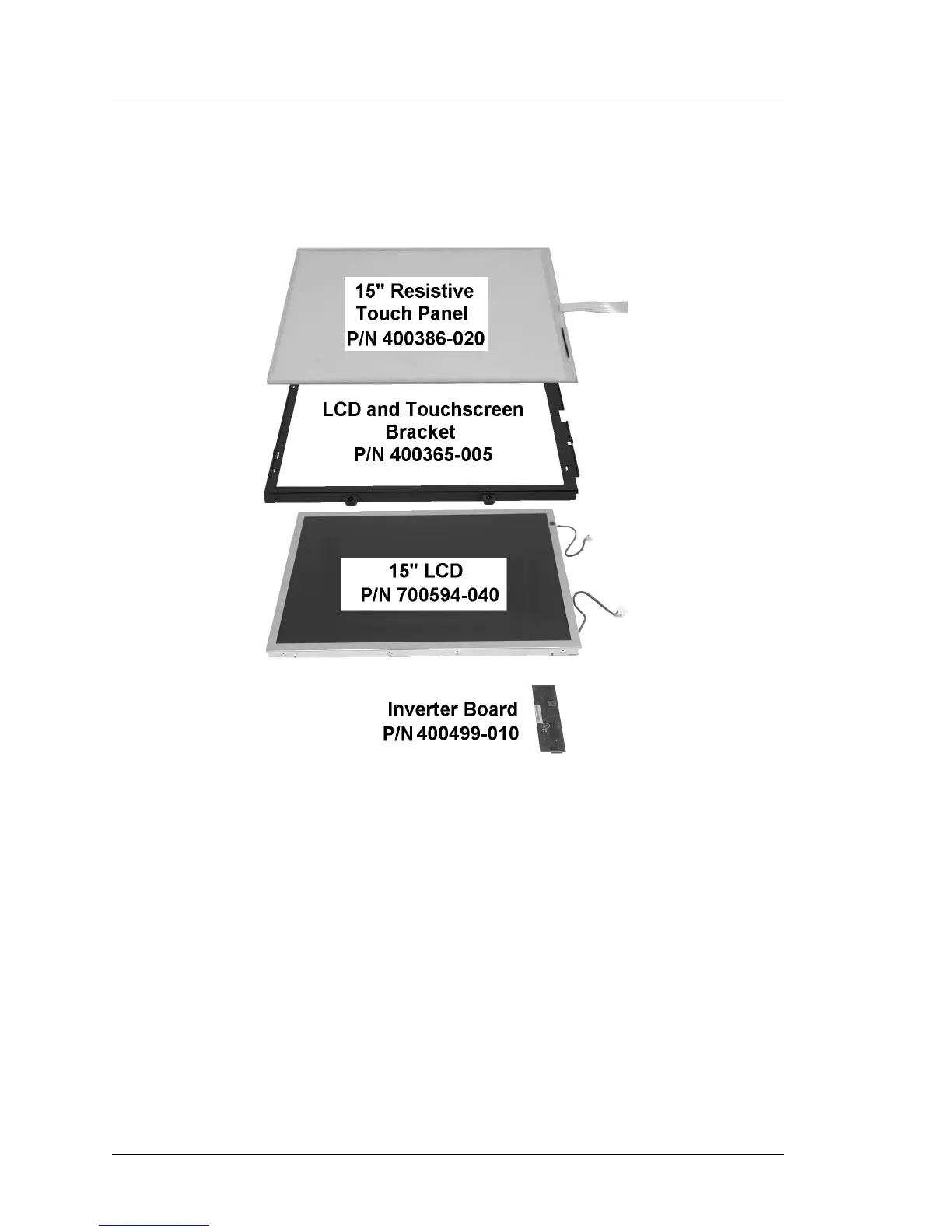

Figure 1-4: LCD and Touchscreen Assembly FRUs

• Touchscreen Panel, 15.0” Resistive, ELO E055550 or ELO E457626 - P/N

400386-020

Five-wire resistive touch panel.

• Bracket, LCD and Touchscreen Assy, /w captive screws - P/N 400365-005

This bracket houses the touchscreen glass and the LCD panel.

• Display 15” LCD, WS5 - P/N 700594-040

Replacement 15” Sharp or AUO LCD Panel. See Chapter 3 for jumper

configurations.

• Inverter Board, WS5 - P/N 400499-010

Workstation 5 compatible push-pull Backlight Inverter Board. Mounts to

the LCD plate. Compatible only with the Workstation 5.
