Workstation 5 System Board Technical Descriptions
System Board Power Distribution
System Board Power Distribution

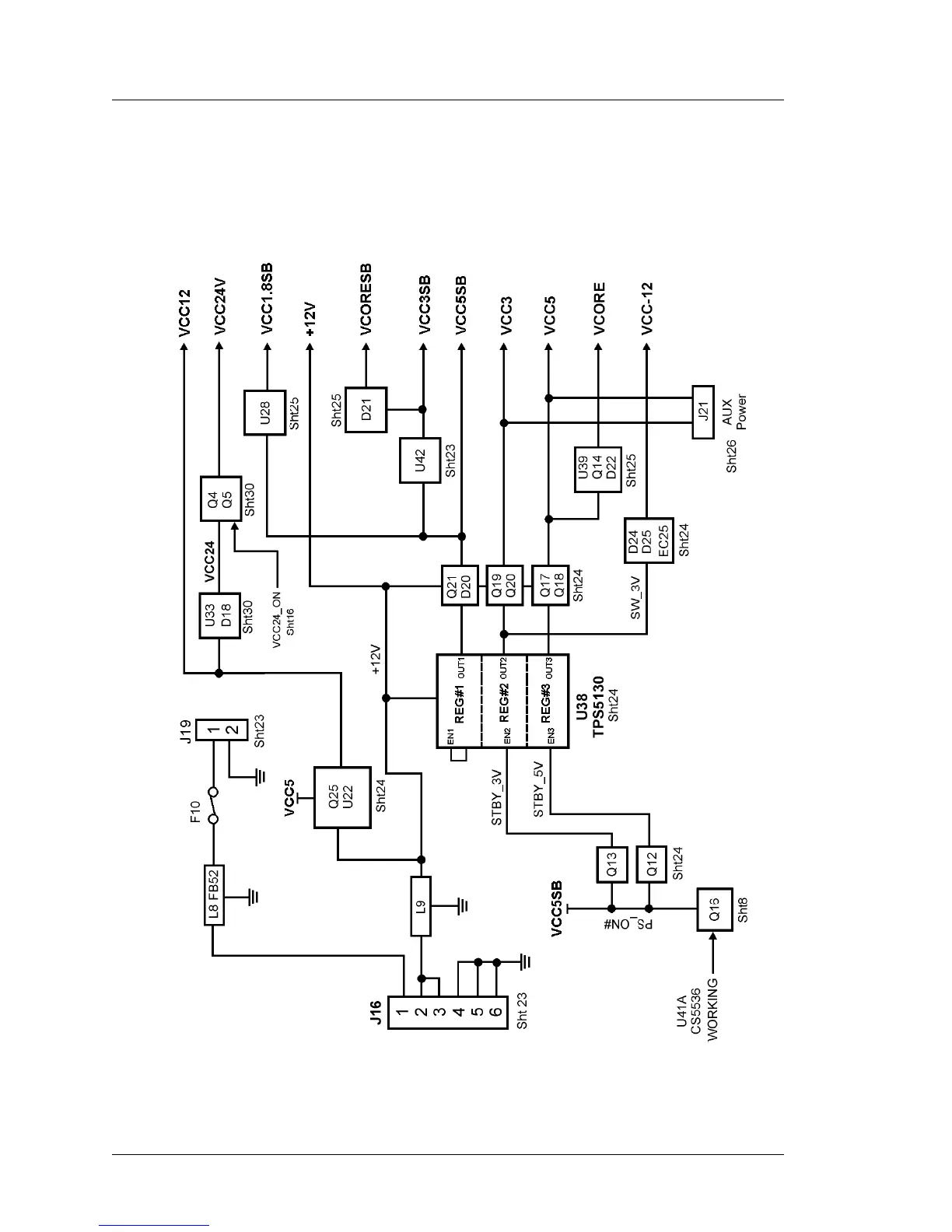

Figure 2-17 is a diagram of all Standby and Working domain voltage regulators
and switches.
Figure 2-17: WS5 System Board Power Distribution
