Workstation 5 Field Service Guide 1-5
Introduction to the WS5 FRUs
System Board and Components
System Board and Components
Figure 1-2, below lists the System Board FRU and available components.

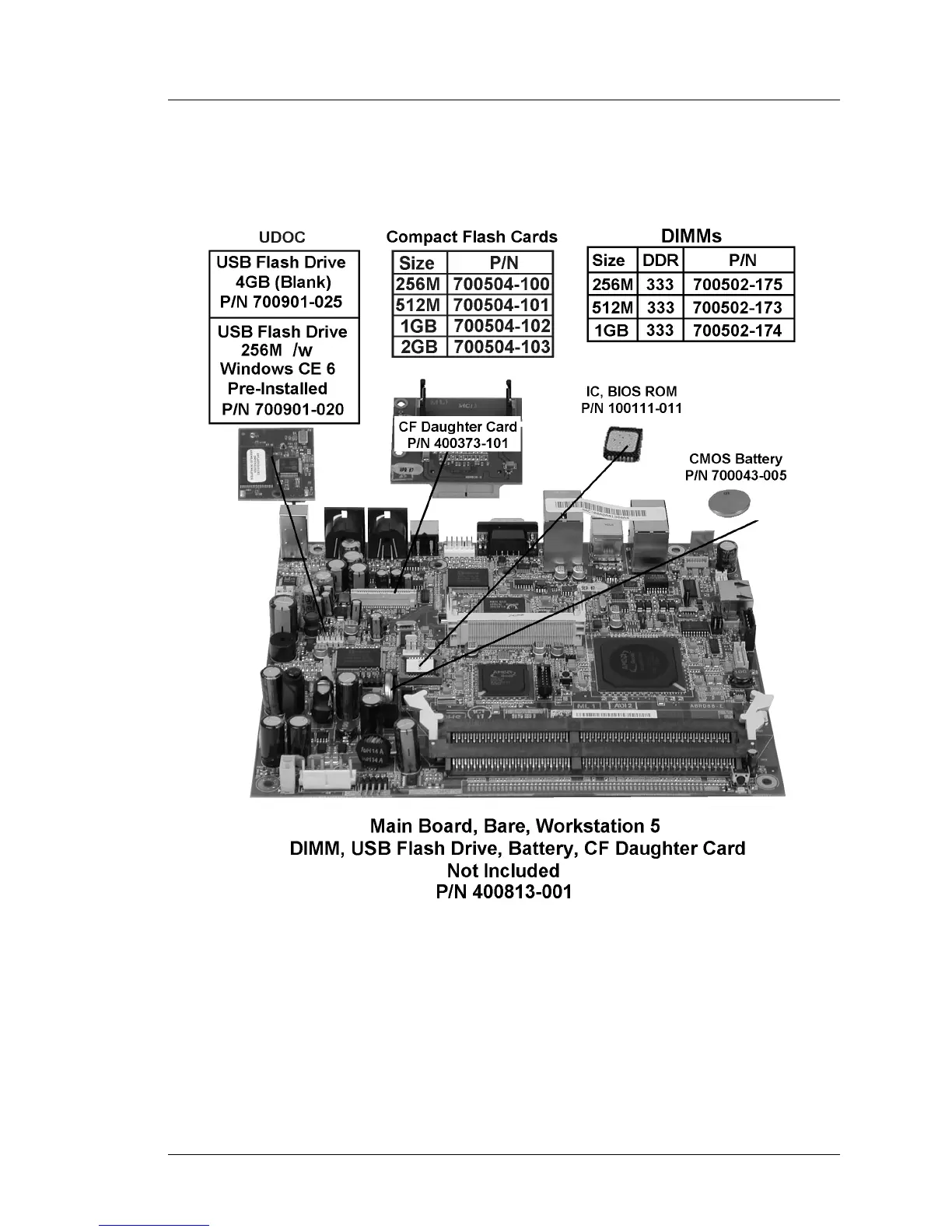

Figure 1-2: Workstation 5 System Board and Components
• Main Board, Bare, Workstation 5 - P/N 400813-001
Bare ABRD88 system board supplied without DIMM, BIOS ROM, USB
Flash Drive, CMOS Battery, or CF Daughter Card.
• USB Flash Drive, 4GB - P/N 700901-025
Blank 4GB USB Flash Drive for WEPOS. Kit P/N 000218-050, the
WEPOS Recovery Kit can be used to restore the WEPOS Flash Drive.
