3-26 Workstation 5 Field Service Guide
Workstation 5 Troubleshooting
LCD Display Related

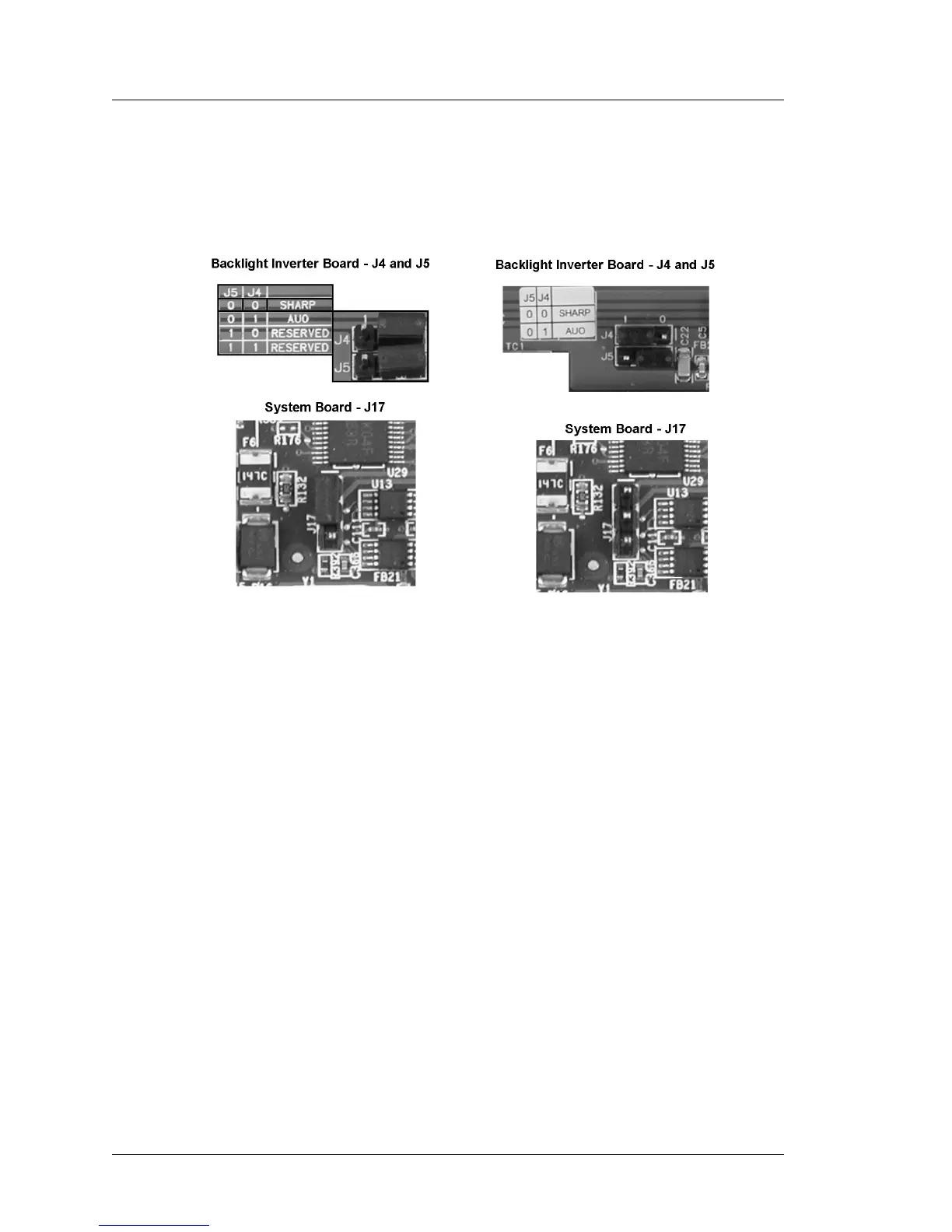

Figure 3-8, below shows the LCD configuration jumpers for the Sharp LG45
and AUO XG03 15” LCD Panels.
Figure 3-8: Configuring the LCD Panel Jumpers
The AUO XG03 LCD Panel is currently in production.
Sharp LG45
AUO XG03
