Midmark M9 - Installation and Setup; Environment, Location, and Electrical Requirements

SECTION I
GENERAL INFORMATION
© Midmark Corporation 2002 SF-1803 Printed in U.S.A.
Page 1 - 5

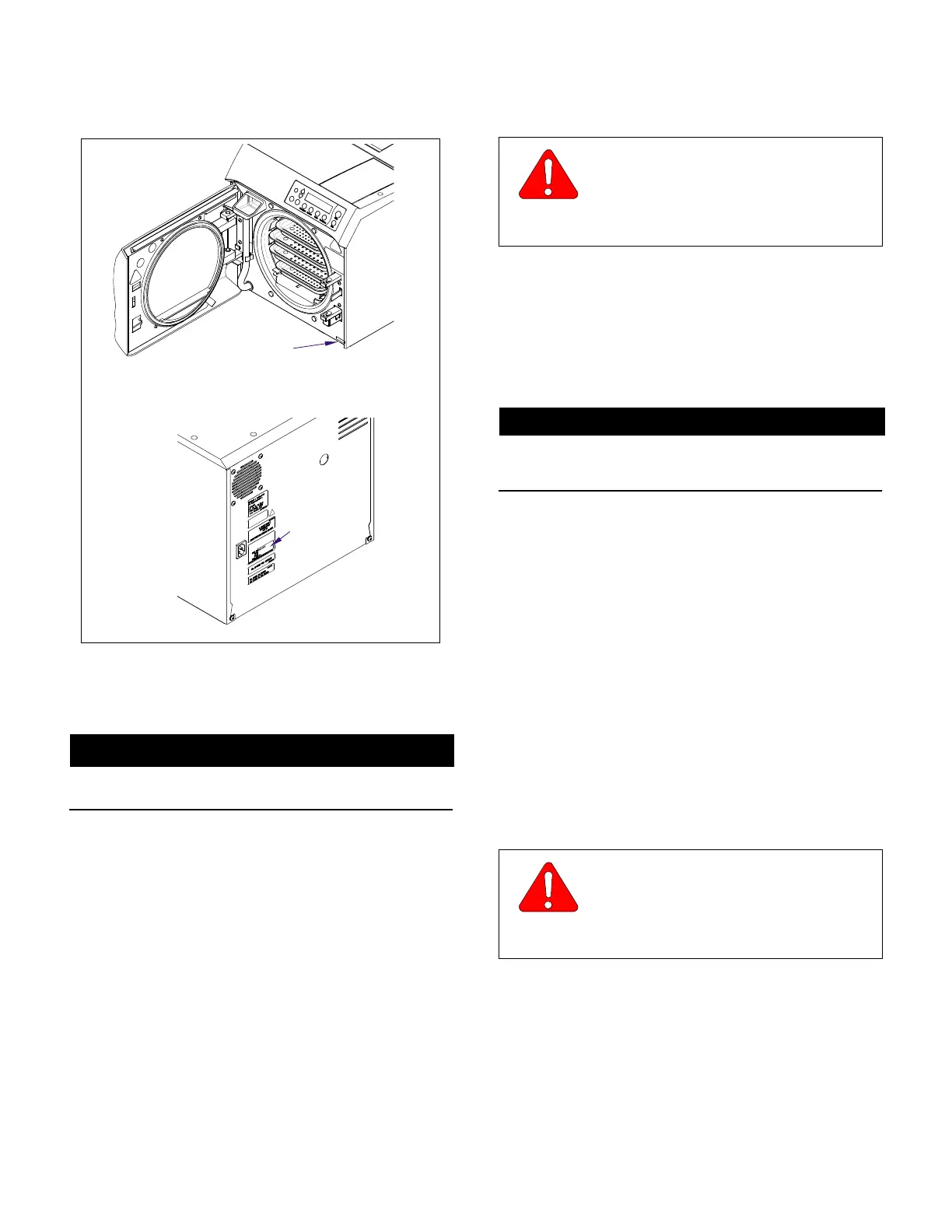

1.2 Model / Serial Number Location
1.3 Specifications
Factual data for the M9 & M11 Sterilizer is provided in
Tables 1-1 & 1-2
Table 1-1. Specifications
Description Data
Front Height (A, Fig.1-4)............ 15 13/16 in. (40.1 cm)
Width (B) ..................................... 15 5/16 in. (38.9 cm)
Depth w/Plug (C)........................... 20 1/8 in. (51.0 cm)
Back Height (D)........................... 15 5/16 in. (39.1 cm)
Chamber Size:......................... Diameter 9 in. (22.9 cm)
Depth 15 in. (38.1 cm)
Shipping Carton: ....24.2 in."L" x 20.5 in."W" x 21 in."H"
(66 cm x 54.6 cm x 52.8 cm)
Weight:
With Reservoir Empty .....................73.0 lbs (33.1 kgs)
With Reservoir Full.............................. 82.0 lbs (37 kg)
Shipping weight..................................81 lbs (36.7 kgs)
Water Reservoir Capacity ................... Apprx. 1.1 gallon
(4.1 Liters) to full mark
Electrical Requirements:
115 VAC Unit .................................115 VAC, 50/60 HZ
15 amp, single phase
230 VAC Unit.................................230 VAC, 50/60 HZ
10 amp, single phase
Power Consumption:
115 VAC Unit .......... 1425 Watts, 12 amps @ 120 VAC
230 VAC Unit ............1500 Watts, 7 amps @ 240 VAC
Table 1-2. Specifications
Description Data
Front Height (A, Fig.1-4) ............17 13/16 in. (45.2 cm)
Width (B)........................................17 3/4 in. (45.2 cm)
Depth (C) .......................................22 3/4 in. (57.8 cm)
Back Height (D) .............................17 5/8 in. (44.2 cm)
Chamber Size: .......................Diameter 11 in. (27.9 cm)
Depth 18 in. (45.7 cm)
Shipping Carton: ....26.2 in."L" x 21.5 in."W" x 21 in."H"
(66.0 cm x 54.6 cm x 52.8 cm)
Weight:
With Reservoir Empty.....................99.0 lbs (44.9 kgs)
With Reservoir Full .......................111.0 lbs (50.4 kgs)
Shipping weight ............................131.0 lbs (59.4 kgs)
Water Reservoir Capacity ....................Apprx. 1.4 gallon
(5.3 Liters) to full mark
Electrical Requirements:
115 VAC Unit .................................115 VAC, 50/60 HZ
12 amp, single phase
230 VAC Unit.................................230 VAC, 50/60 HZ
6.5 amp, single phase
Power Consumption:
115 VAC Unit ..........1425 Watts, 12 amps @ 120 VAC
230 VAC Unit ............. 1500 Watts, 7 amps @240 VAC
MA616300i
Serial Number
Model / Serial
Numbers
M9 / M9D Sterilizer
WARNING
Use 104 - 127 VAC, 50/60 HZ alternat-
ing current only for 115 VAC rated
models and 207 - 253 VAC, 50/60 HZ alternating
current only for 230 VAC rated models.
WARNING
Use 104 - 127 VAC, 50/60 HZ alternat-
ing current only for 115 VAC rated
models and 207 - 253 VAC, 50/60 HZ alternating
current only for 230 VAC rated models.
M11 / M11D Sterilizer
