SECTION IV
MAINTENANCE / SERVICE
© Midmark Corporation 2002 SF-1803 Page 4-16 Printed in U.S.A.
(2) Disconnect tube of Pressure Gauge Test Har-
ness from pressure transducer (2)
(3) Connect tube (1) to pressure transducer (2) and
secure with high temperature
cable tie.
(4) Run unit and check for leaks, then install
panel(s).
EQUIPMENT ALERT
Use a High Temperature cable tie when
securing tube (1) to pressure transducer.
(Refer to Section 6, Parts List, for correct part num-
ber).
2
MA617800
1
High Temp.
Cable Tie

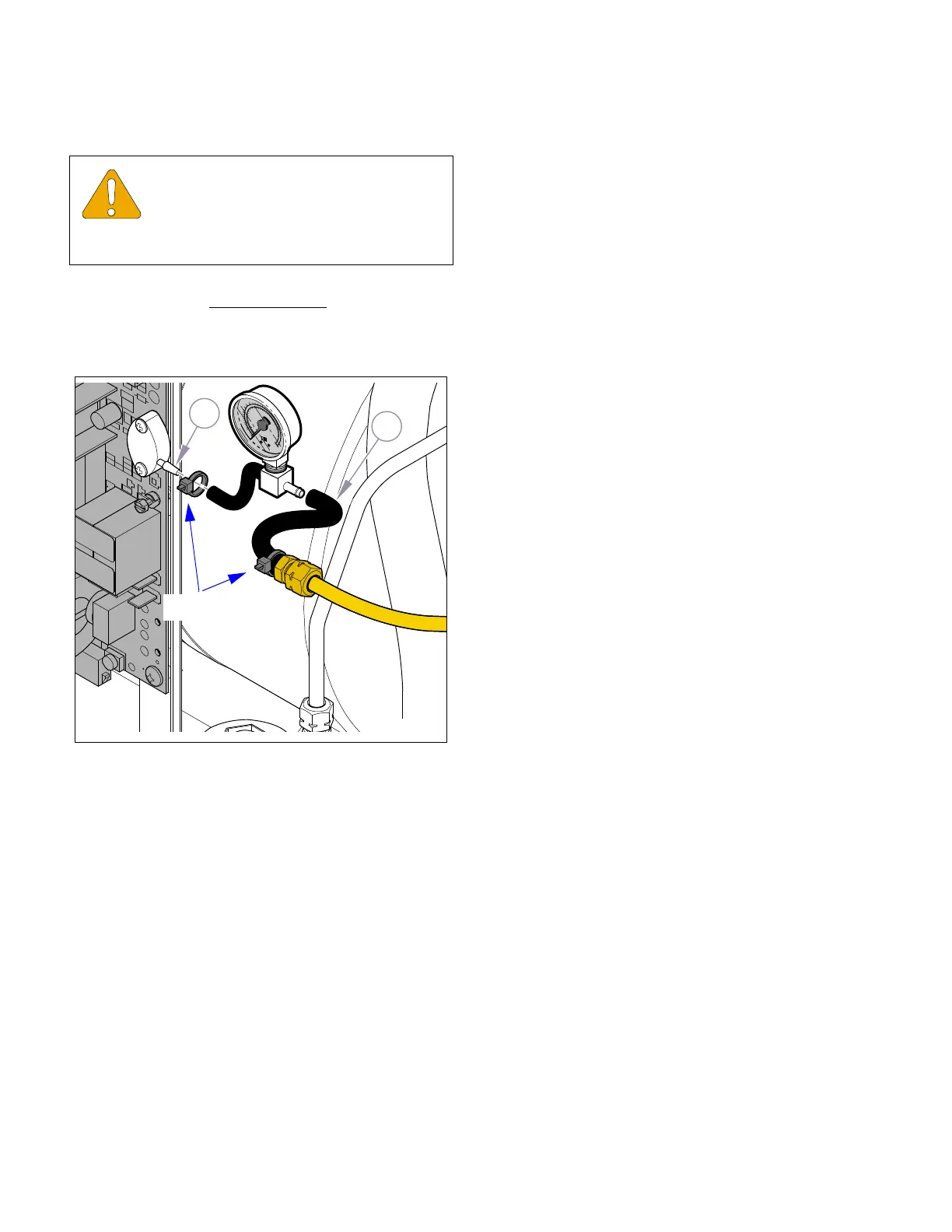

Figure 4-28. Pressure Gauge Test Harness
