SECTION VI
M9/M9D PARTS LIST
Always Specify Model & Serial Number
© Midmark Corporation 2000 SF-1803 Printed in U.S.A.
B
5
6
7
20
10
25
18
28
29
32
33
24
26
2
16
27
23
14
15
31
12
13
B
A
8
23
17
19
30
35
36
37
38
39
40
39
41
34
9
1
11
A
3
22
21
42
4
6-4
Rev 8/03

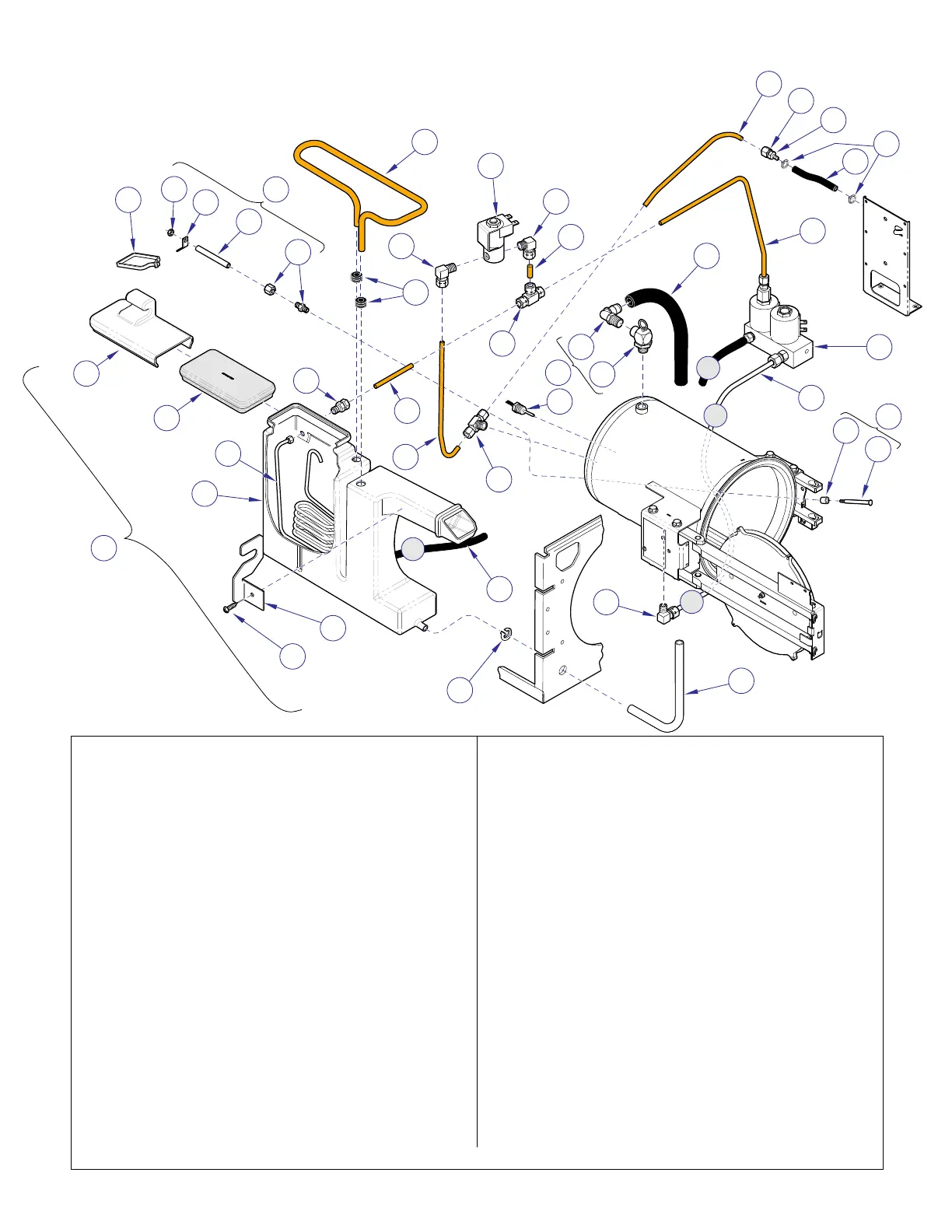

Plumbing and Sensor
Components
MA594103
Item Part No. Description Qty Item Part No. Description Qty
1 • 014-0412-00 • PCB Pressure Sensor Tube................ 1
2 • 014-0192-00 • Compression Nut ............................... 1
3 • 014-0217-00 • Compression Connector ..................... 1
4 • 015-0013-05 • Cable Tie (High Temp) ....................... 2
5 • 053-0404-05 • Tube PCB Connector......................... 1
6 014-0410-00 Tube ...................................................... 1
7 Manifold (Refer to “Manifold
Components”) .................................... 6-6
8 014-0370-00 Tube ...................................................... 1
9 053-1033-04 Tube ...................................................... 1
10 014-0184-01 Male 90° Elbow ..................................... 1
11 029-2753-00 Reservoir Tank Assembly(Includes Items
13 thru 21
12 • 053-1303-00 • Reservoir Tank Seal............................ 1
13 • 053-1257-02 • Reservoir Lid....................................... 1
14 • 053-1257-01 • Reservoir Tank .................................... 1
15 • 014-0421-00 • Condensing Coil Tube ........................ 1
16 • 014-0216-00 • Bulkhead Fitting .................................. 1
17 • 053-0394-03 • Grommet............................................. 2
18 • 014-0426-00 • Equalization Tube ............................... 1
19 • 053-0391-06 • Sight/Drain Tube ................................. 1
20 • 016-0748-01 • Hose Clamp ........................................ 1
21 • 050-5684-00 • Equalization Coil Bracket .................... 1
22 • 040-0010-75 • Screw ..................................................1
23 002-0358-00 Level Sensor Tube Kit
24 • 053-0390-01 • Tube ....................................................1
25 • 041-0006-02 • Nut.......................................................1
26 • 015-0595-00 • Terminal...............................................1
27 • 014-0183-01 • Compression Nut................................1
28 • 053-0407-00 • Spacer .................................................1
29 • 030-0858-00 • Level Sensor Assembly.......................1
30 015-1680-00 Temperature Probe Assembly................1
31 002-0359-01 Pressure Relief Valve Kit(Includes Items
33 thru 34)
32 • 014-0195-03 • Pressure Relief Valve ..........................1
33 • 014-0258-00 • Male Elbow..........................................1
34 053-0613-04 Neoprene Tubing1
35 014-0423-00 Union Tee...............................................1
36 014-0202-03 Male Branch Tee ....................................1
37 014-0409-00 Tube.......................................................1
38 014-0411-00 Tube.......................................................1
39 014-0184-00 Elbow .....................................................2
40 014-0419-00 Solenoid (115 volt) .................................1
014-0419-01 Solenoid (230 volt) .................................1
41 014-0424-00 Tube.......................................................1
42 015-0013-03 Wire Tie..................................................1
