SECTION VI
M9/M9D PARTS LIST
Always Specify Model & Serial Number
© Midmark Corporation 2000 SF-1803 Printed in U.S.A.
7
1
2
4
6
3
5
MA606000i
Item Part No. Description Qty Item Part No. Description Qty
029-2755-00 Manifold Assembly(115 volt)
029-2755-01 Manifold Assembly(230 volt)
1 • 014-0420-00 • Solenoid Valve Manifold (115 volt) ......1
• 014-0420-01 • Solenoid Valve Manifold (230 volt) ......1
2 ••014-0275-00 ••Solenoid Valve (Vent) (115 volt)........1
••014-0275-01 ••Solenoid Valve (Vent) (230 volt)........1
•••014-0236-11•••Replacement Plunger (not shown).1
•••014-0236-10•••Coil (115 volt not shown) ..................1
3 ••014-0236-00 ••Solenoid Valve (Fill) (115 volt).......... 1
••014-0236-01 ••Solenoid Valve (Fill) (230 volt).......... 1
•••014-0236-11•••Replacement Plunger (not shown). 1
•••014-0236-10•••Coil (115 volt not shown) ............... 1
4 ••Manifold Block..................................... 1
5 • 014-0347-00 • Barb Fitting.......................................... 1
6 • 014-0183-01 • 1/4 Fitting............................................ 1
7 • 014-0183-02 • 3/8 Fitting............................................ 1
6-6
Rev. 6/03

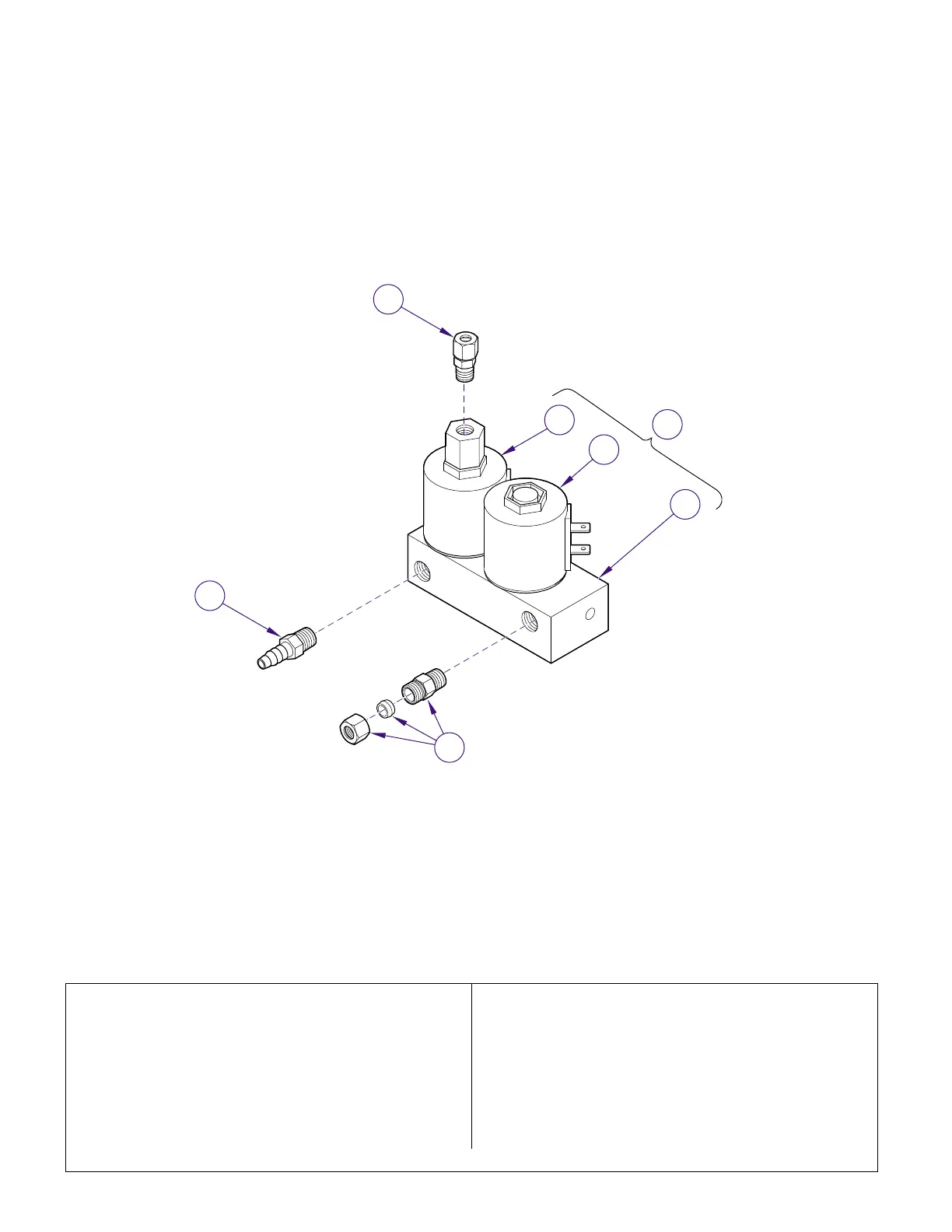

Manifold Components
