SECTION VI
M9/M9D PARTS LIST
Always Specify Model & Serial Number
© Midmark Corporation 2000 SF-1803 Printed in U.S.A.
6
7
2
1
4
12
14
15
16
19
20
28
18
9
11
13
10
29
27
23
22
26
28
28
21
25
24
5
8
30
8
17
8
30
3
Rev. 08/03
6-7.1

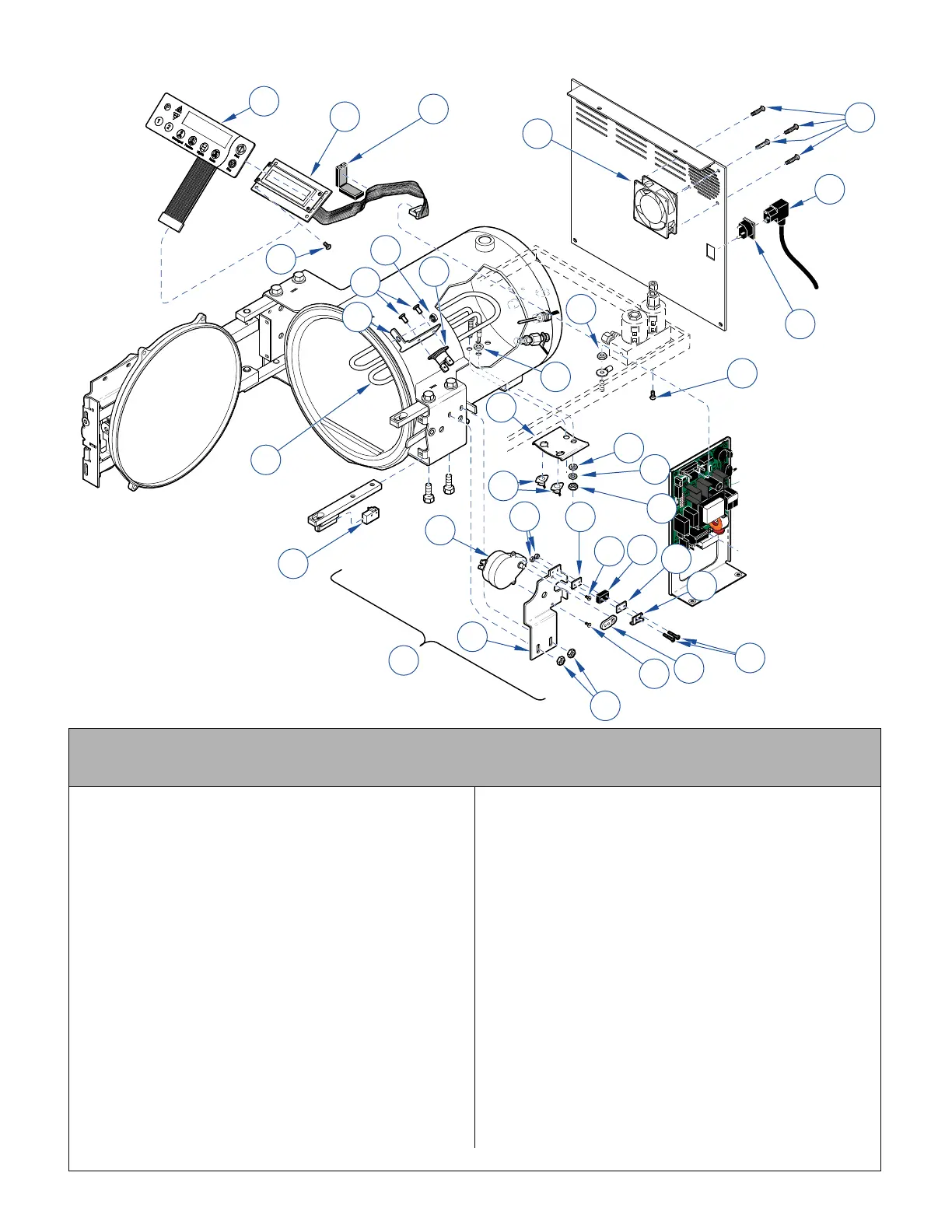

Electrical Components
MA594403i
Used on units with Serial Numbers: RN001185 thru RN001235 & RN001241,
RP001005, RR001369, RW001000 and RX001000 thru Present
Item Part No. Description Qty Item Part No. Description Qty
1 015-1551-00 Membrane Switch ................................. 1
2 015-1550-00 Display Assembly.................................14
3 015-1641-00 Suppression Coil....................................1
4 015-1368-00 Fan-{115 Volt}........................................ 1
015-1368-01 Fan-{230 Volt} ....................................... 1
5 040-0010-125 Screw .................................................... 6
6 015-0640-00 Power Cord (115 Volt) ............................1
015-0363-07 Power Cord (230 Volt)............................1
7 015-0639-00 AC Connector Receptacle..................... 1
8 041-0010-04 Nut..........................................................8
9 H98137 Insulator .................................................2
10 040-0010-75 Screw .....................................................1
11 050-5206-00 Plate .......................................................1
12 H97971 Washer...................................................2
13 045-0001-56 Lock washer ...........................................2
14 015-0976-00 Nut..........................................................2
15 015-1637-00 Thermostat.............................................2
16 040-0006-04 Screw .....................................................2
17 015-1430-00 Fan Control Thermostat .........................1
18 050-5459-00 Thermostat Bracket................................1
19 015-0645-00 Heating Element (115 Volt) ....................1
015-0645-01 Heating Element (230 Volt).................... 1
20 015-1556-00 Door Switch ...........................................1
Items #23 thru #30 refer to M9 units only.
21 029-3038-00 Door Motor Assembly (115 volt) ............ 1
029-3038-01 Door Motor Assembly (230 volt) ............1
22 • 041-0002-01 • Nut....................................................... 2
23 • 053-1348-00 • Insulating Membrane........................... 2
24 • 015-1672-00 • Switch.................................................. 1
25 • • Insulating Membrane........................... 1
26 • 015-1671-00 • Switch Actuator (Includes Items 21, 24,
and 26) ...............................................1
27 • 040-0010-75 • Screw .................................................. 2
28 • 042-0010-21 • Pop Rivot............................................. 4
29 • 050-5668-00 • Door Latch Motor Bracket ................... 1
30 • 015-1763-00 • Door Motor Assembly (115 Volt) ......... 1
• 015-1763-01 • Door Motor Assembly (230 Volt) ......... 1
