4.0 Description of Function
4.1 Door Switch (S24)
The Door Switch interrupts the main power circuit when the door is
opened.

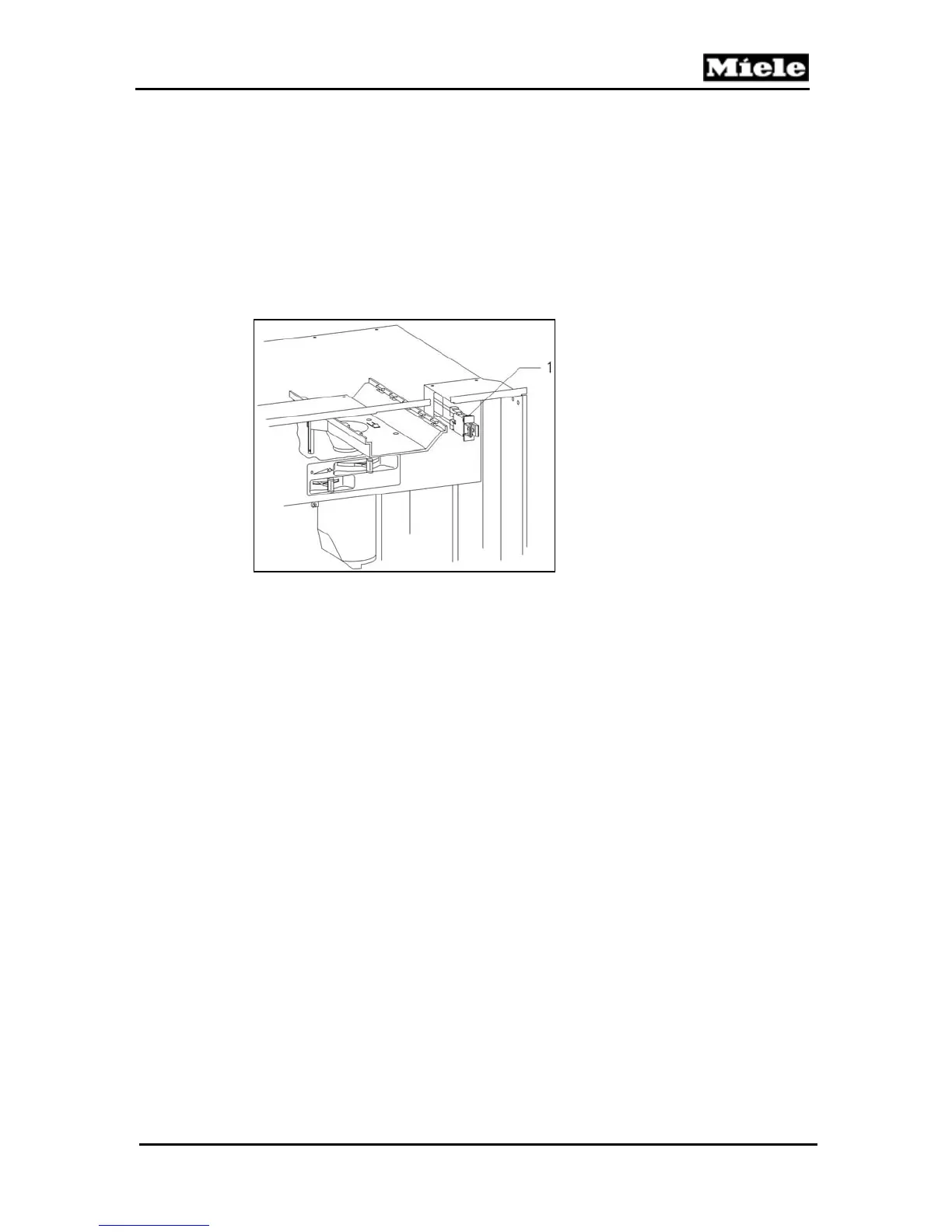

Figure 4-1: Door Contact Switch (S24)
4.2 Overflow Switch (B8/3)
The Overflow Switch is mounted to the bottom of the casing. The
associated float (with internal magnet) is located within the drip
tray. Should a leak develop, water flows into the drip tray. The float
rises and the Overflow Switch becomes actuated. The electronic
then displays the “Watersystem Fault” message.
