Technical Information
34
CVA610 Coffee System
1 Heater element
2 Connector
3 Temperature monitor
4 Temperature safety fuse
5 PTC Temperature sensor
6 Temperature safety fuse
7 Heater element - Small
8 Connector
9 Mounting
10 Outlet
4.17 Heaters
Refer to the figure 4-20…
The Coffee / Hot Water consist of a large heater element (Item 1)
and a smaller heater element (item 7). The Steam Heater has
consist of one heater element (figure 4-21, Item 3).
Each Heater uses a temperature sensor (Item 5) that provides
signals to the Electronic to monitor the temperature ; and control
the cycling (switching) of the Heater Element(s).
Additionally, each Heater assembly is equipped with a Temperature
Monitor (Item 3) connected electrically in series with the element.
Should the temperature become excessive, the device electrically
interrupts the power to the heater element.

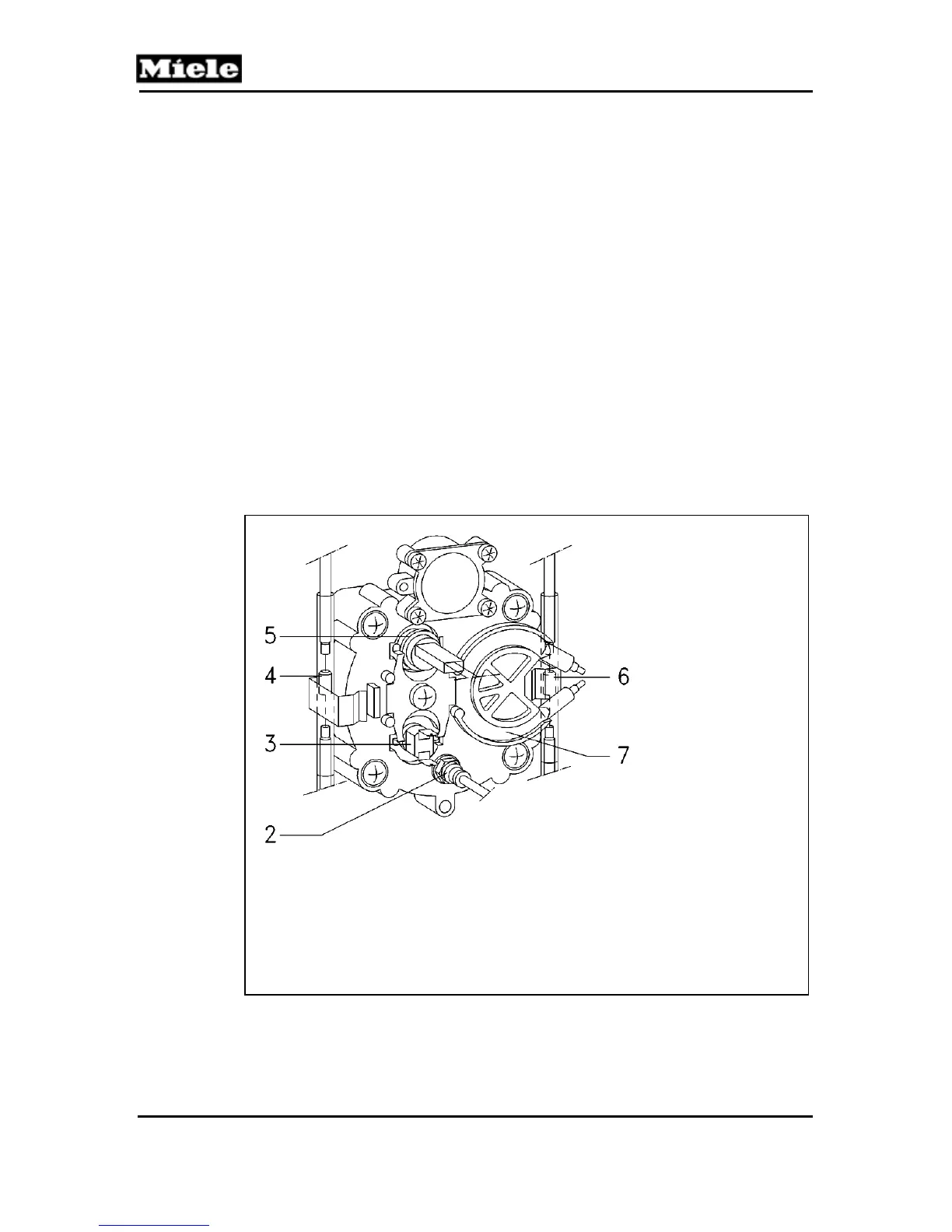

Figure 4-20: Hot Water / Coffee Heater (1R1 and 1R2)
