Miele CVA610 - Brew Unit Ram - Service

Technical Information
69
C
VA
6
1
0
C
offee
Sy
stem
5.33 Brew Unit Ram - Service
1. Remove the Brew Unit from the appliance.
2. Remove the funnel (5.32).
3. Remove the bottom filter screw and filter
(Figure 5-31, Items 1 &2).

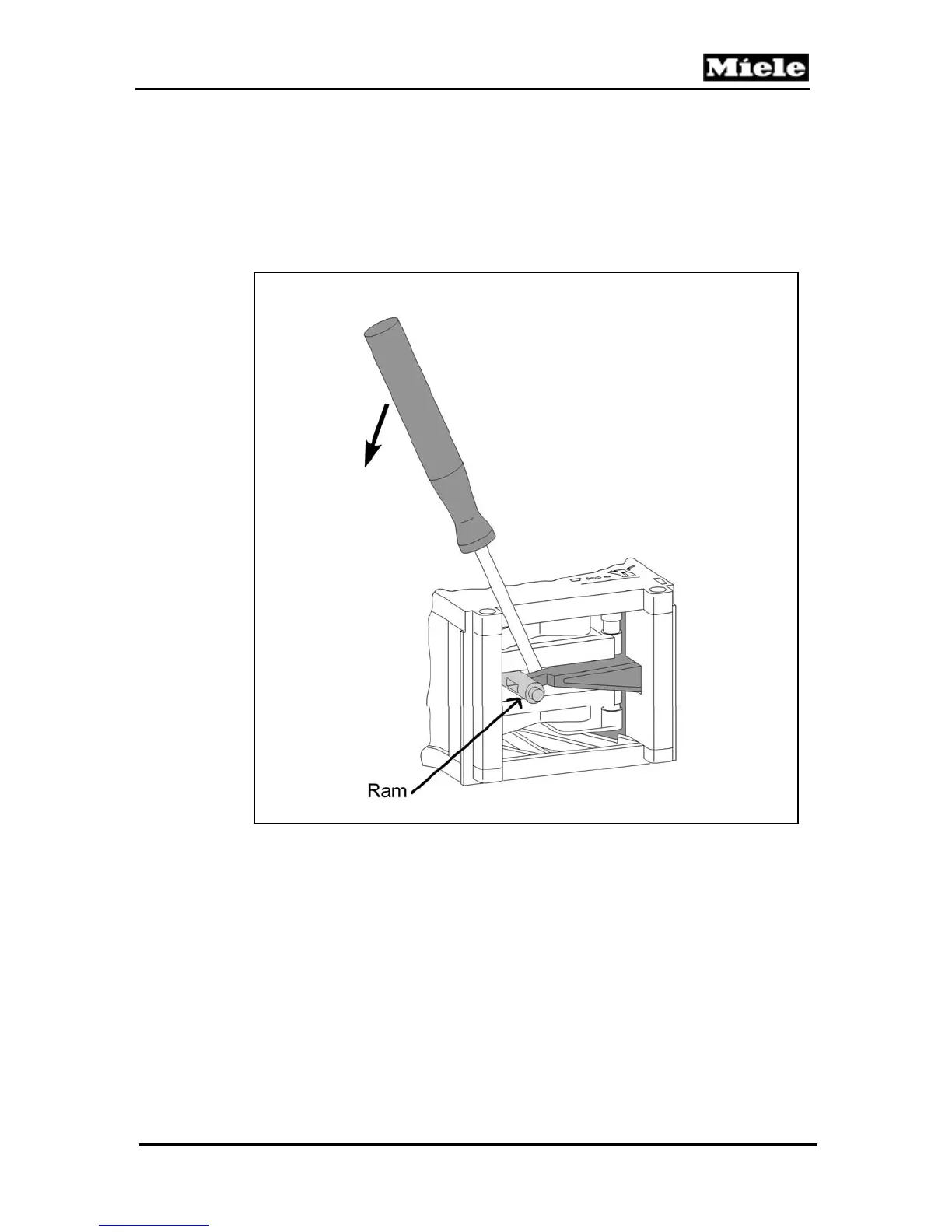

Figure 5-31: Releasing the ram from the bottom of the Brew Unit.
4. Unclip the lever from the ram.
5. Pull the ram outward to remove from the brew unit.
