Technical Information
70
CVA610 Coffee System
6. Clean the brewing chamber (Figure 32), ram and bottom filter by
hand with warm water without detergent, then dry.
7. Apply silicone grease to the ram lubrication points
(Figure 5-33, Item 3).

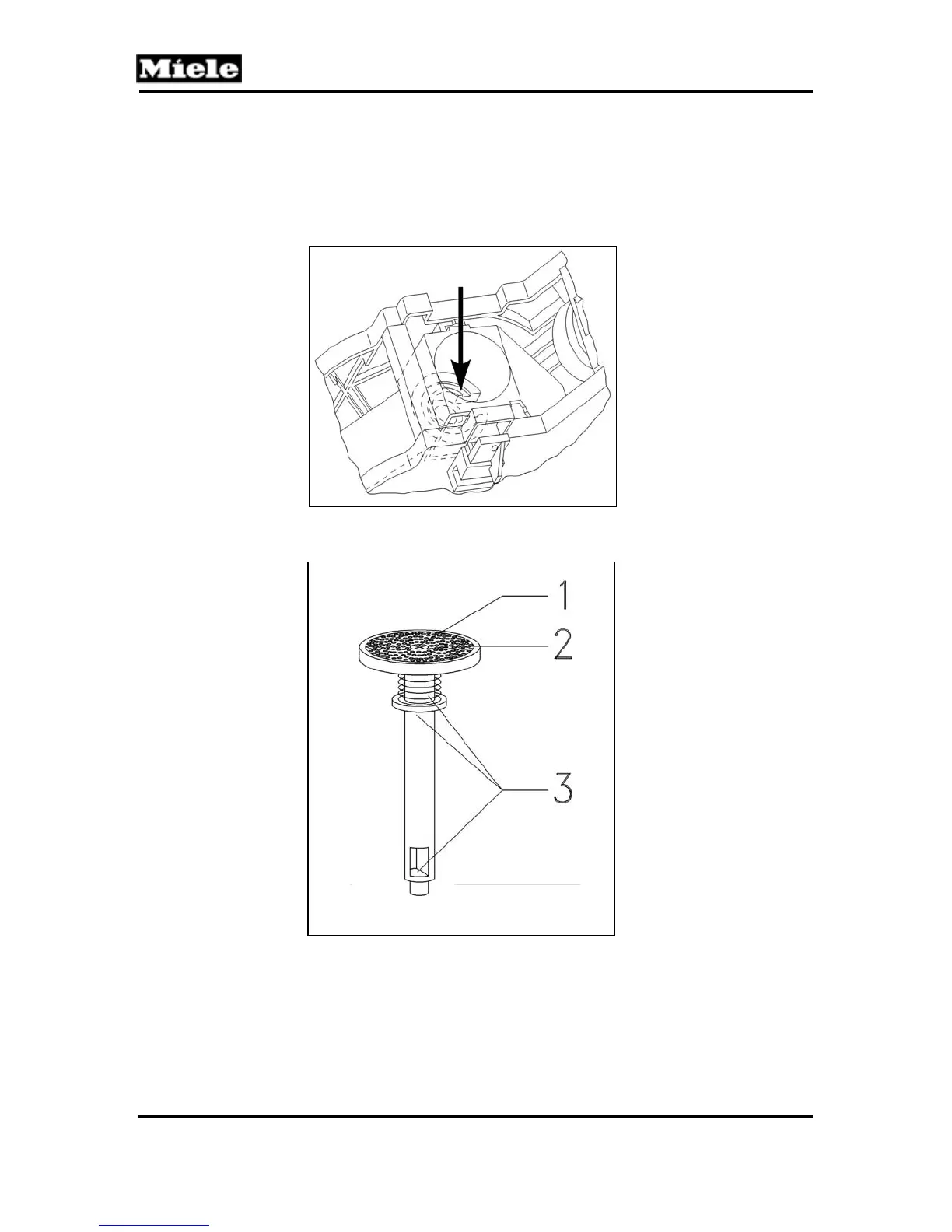

Figure 5-32: Brewing unit chamber inside the brew
unit assembly.
Figure 5-33: Ram assembly. (1) Filter Screw
(2) Filter (3) Lubrication points
