CVA610 Coffee System
5.32 Brew Unit Funnel - Removal
1. Remove the Brew Unit from the appliance.
2. Press the funnel locking lug (Figure 29, Item 1), so that the
funnel is no longer raised.
3. Lever the funnel upwards out of its holder (Figure 5-30).
Note
When refitting the Funnel, ensure the spring (Figure 5-30, Item 1)
is seated correctly.

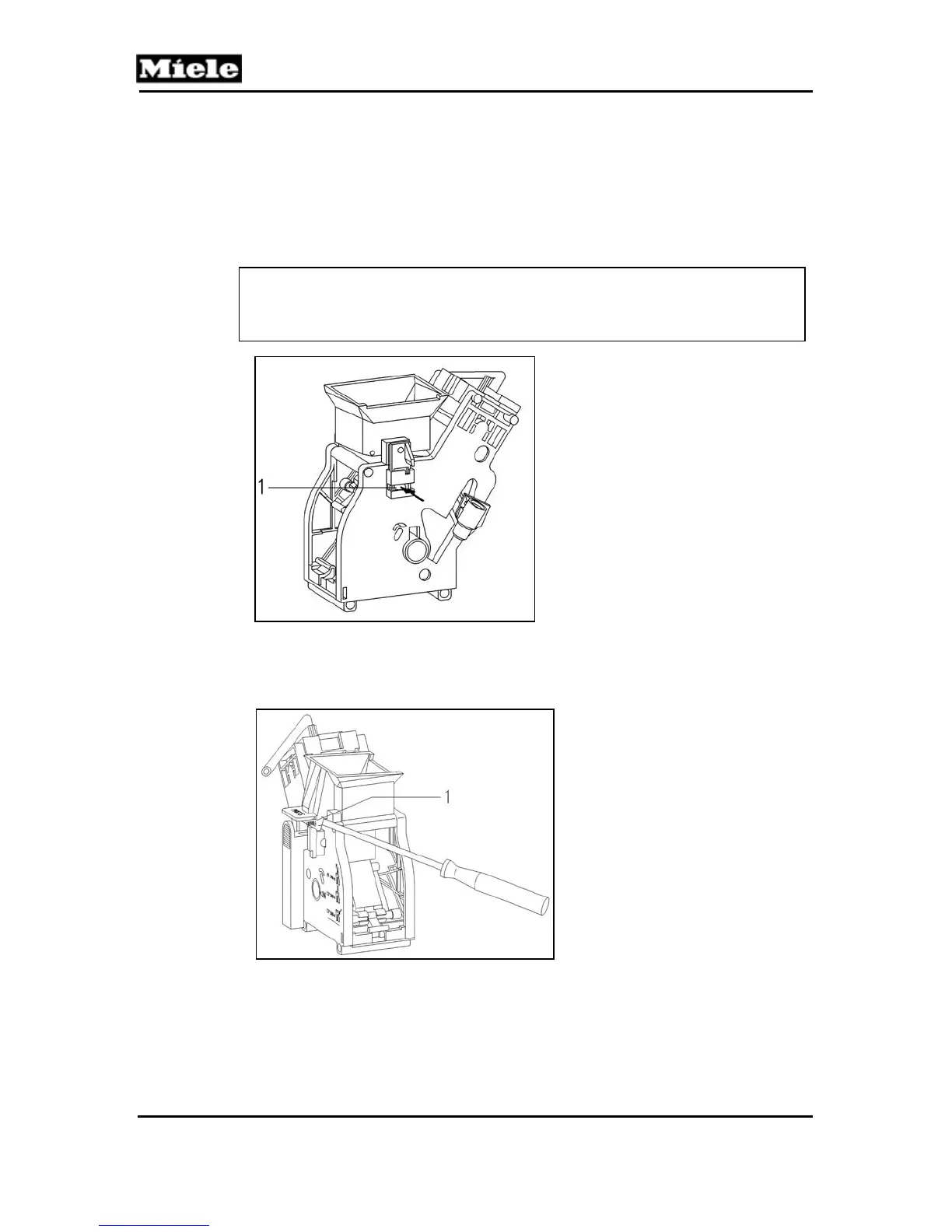

Figure 5-29: Rear of Brew Unit, highlighting the funnel lock
Figure 5-30: Front of Brew Unit, showing spring location and holder
