4.4 Brew Unit – Drive and Water Connections
Refer to figure 4-3.
When the Brew Unit is installed, it locks into position. The Locking
Mechanism Switch Lug (item 3), activates the Brew Unit Present
Switch (item 4). The Drive Shaft (item 6), engages with the Drive
Shaft Socket (item 1) to provide drive to the Brew Unit.
When the Brew Unit moves into the “Brewing Position” the Hot
Water / Water Connection Socket (item 2) connects to the Nozzle
on the Hot Water / Coffee Heater (item 5).

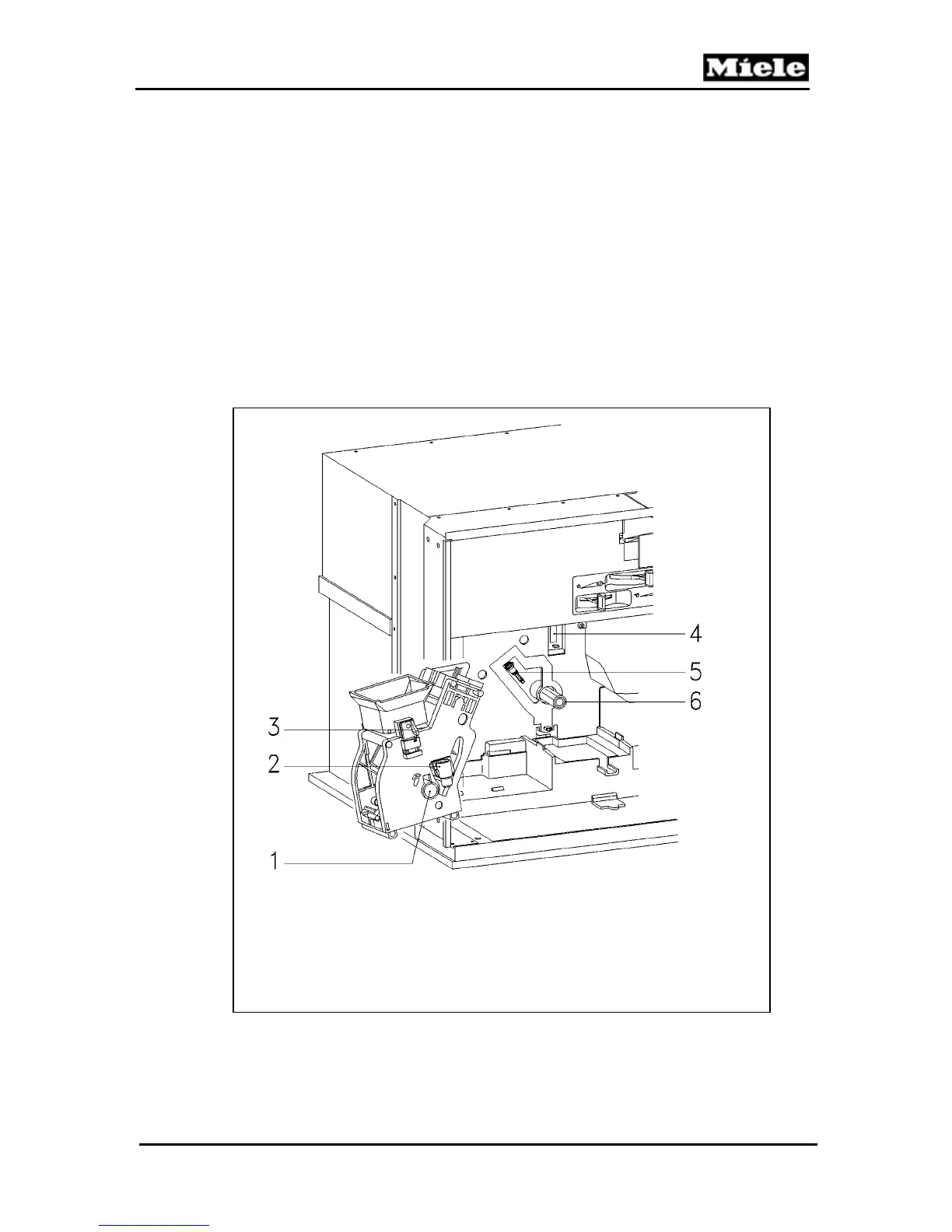

Figure 4-3: Brew Unit drive connections
1 Drive Shaft Socket
2 Water Connection Socket
3 Locking Mechanism Switch Lug
4 Brew Unit Present Switch
5 Water Nozzle
6 Drive shaft
