CVA610 Coffee System
4.18 Water Path

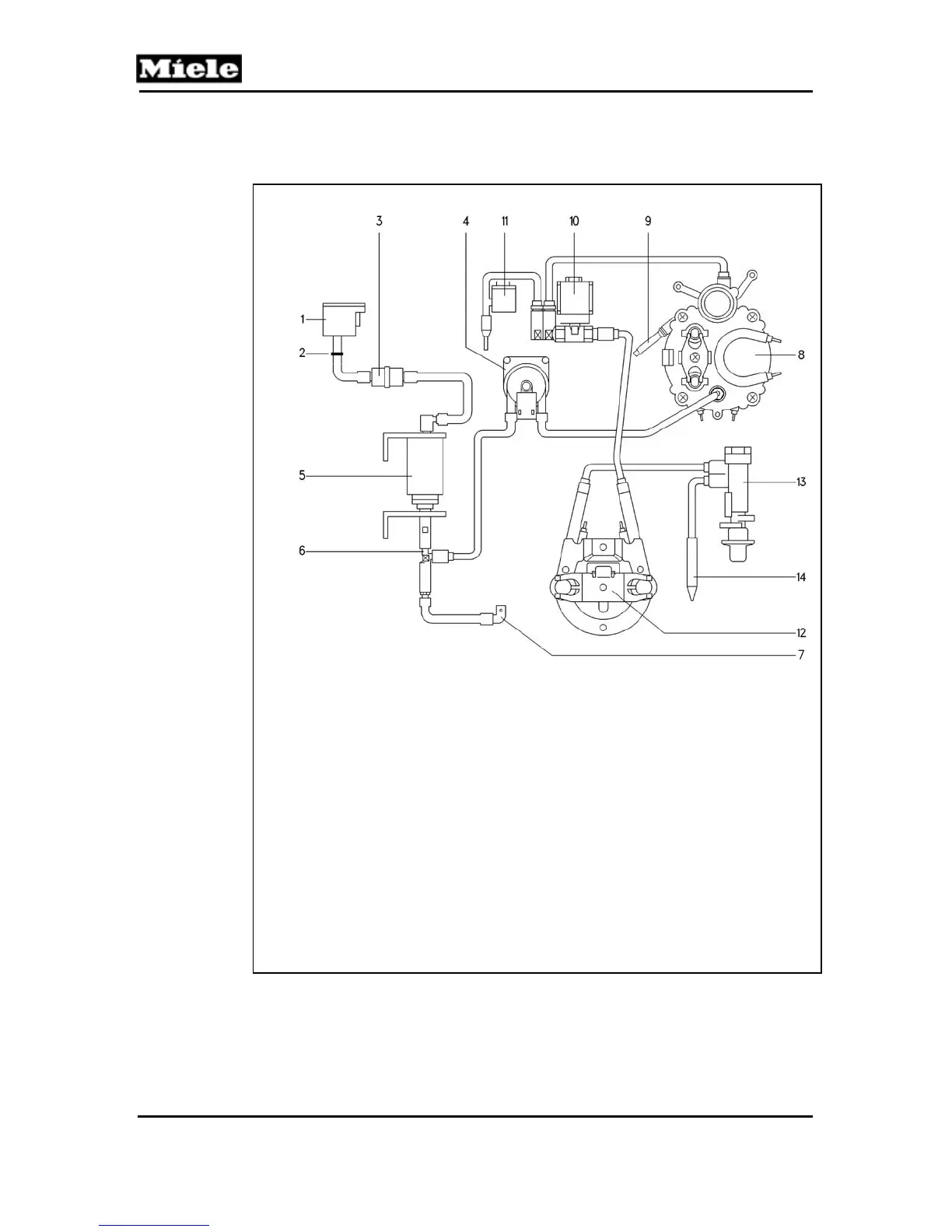

Figure 4-22: Water Path
1 Water tank
2 Sealing ring
3 Water filter
4 Flow meter
5 Pump
6 Valve - Safety
7 Drain hose - Excess pressure
8 Through-flow heater - Coffee
9 Outlet to brew unit (nipple)
10 Valve - Steam (solenoid valve)
11 Valve - Hot water (solenoid valve)
12 Through-flow heater - Steam
13 Valve - Steam (in door)
14 Frothing nozzle
