4.10 Grinder Assembly
Refer to figure 4-12.
The grinding grade depends on the gap between the Grinding
Cone (Item 1) and the Grinding Ring (Item 2).
The gap is set via the Adjustment Lever, (Item 5) on the
Adjustment Ring (Item 3). The smaller the gap, the finer the
grind of coffee will be.

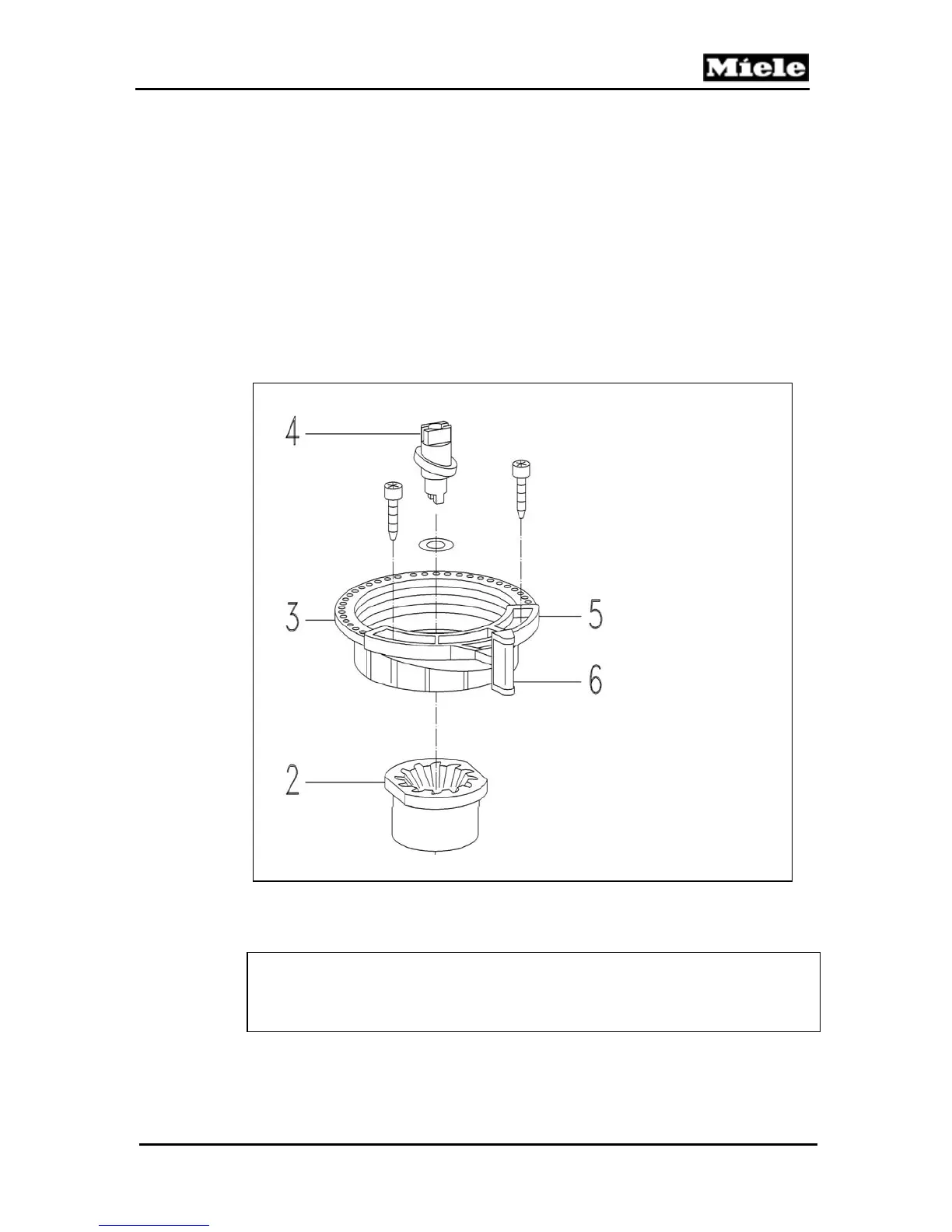

Figure 4-12: Grinder Assembly
Warning!
To avoid binding the grinder, adjustments should be made in small
steps.
1 Grinding cone
2 Grinding ring
3 Adjustment ring
4 Intake worm gear
5 Adjustment lever
6 Handle
