CVA610 Coffee System
11. Remove the plug from the Electronic.
12. Lift the grinder upwards from the dampers (Figure 5-45, Item 2).
1 Motor holder
2 Damper
3 Mounting plate

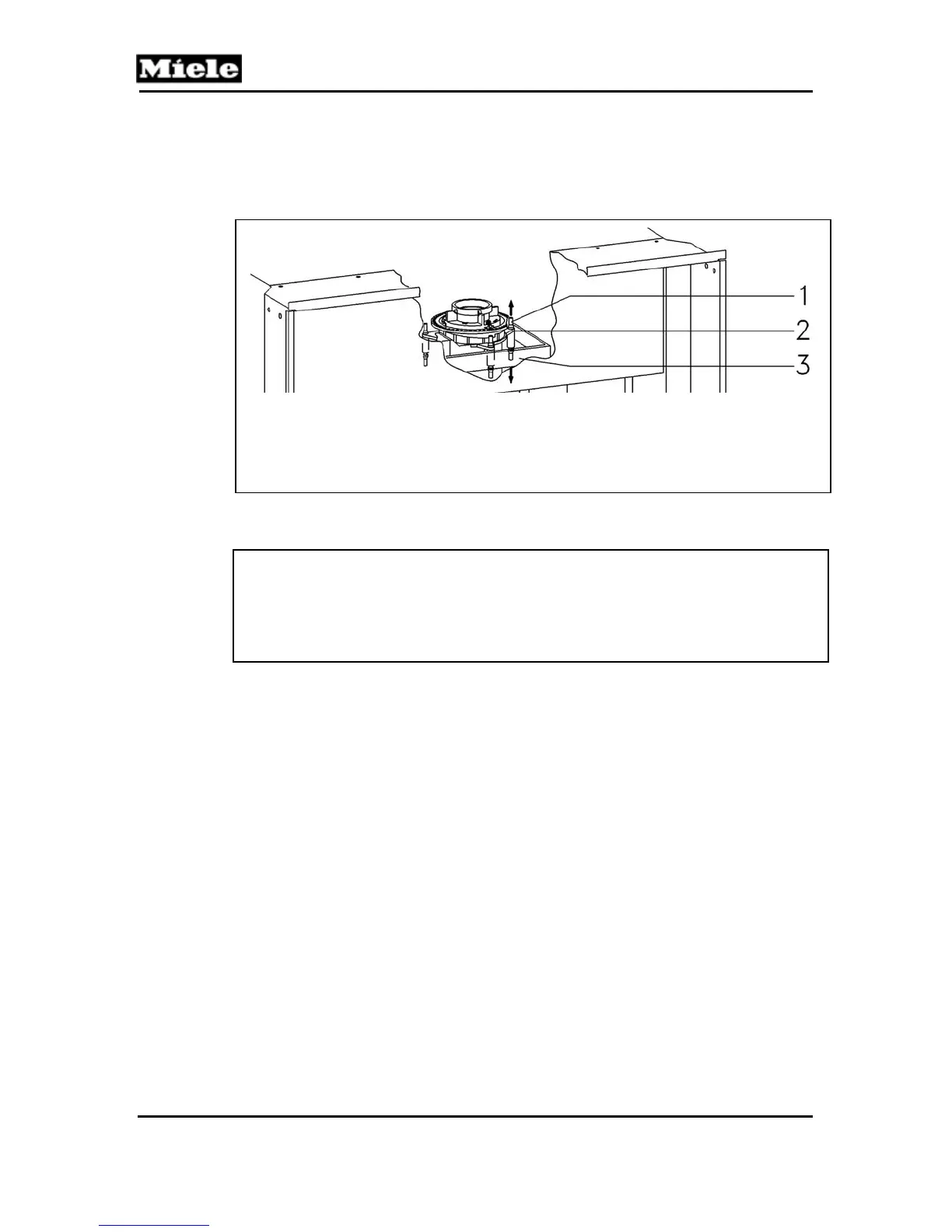

Figure 5-45: Grinder coupling
Note
When refitting the grinder, the dampers should be seated in the
mounting plate and motor holder to ensure the grinder coupling is
set to an optimal position and grinder noise is kept to a minimum.
