Technical Information
44
CVA610 Coffee System
5.5 Door Contact Switch (S24) - Removal
Refer to figure 5-5 below…
1. Remove the lid (5.1)
2. Open the door.
3. Disconnect the door switch connections.
4. Press the switch retaining lugs inwards with a small screwdriver.
5. Remove the door switch to the front.

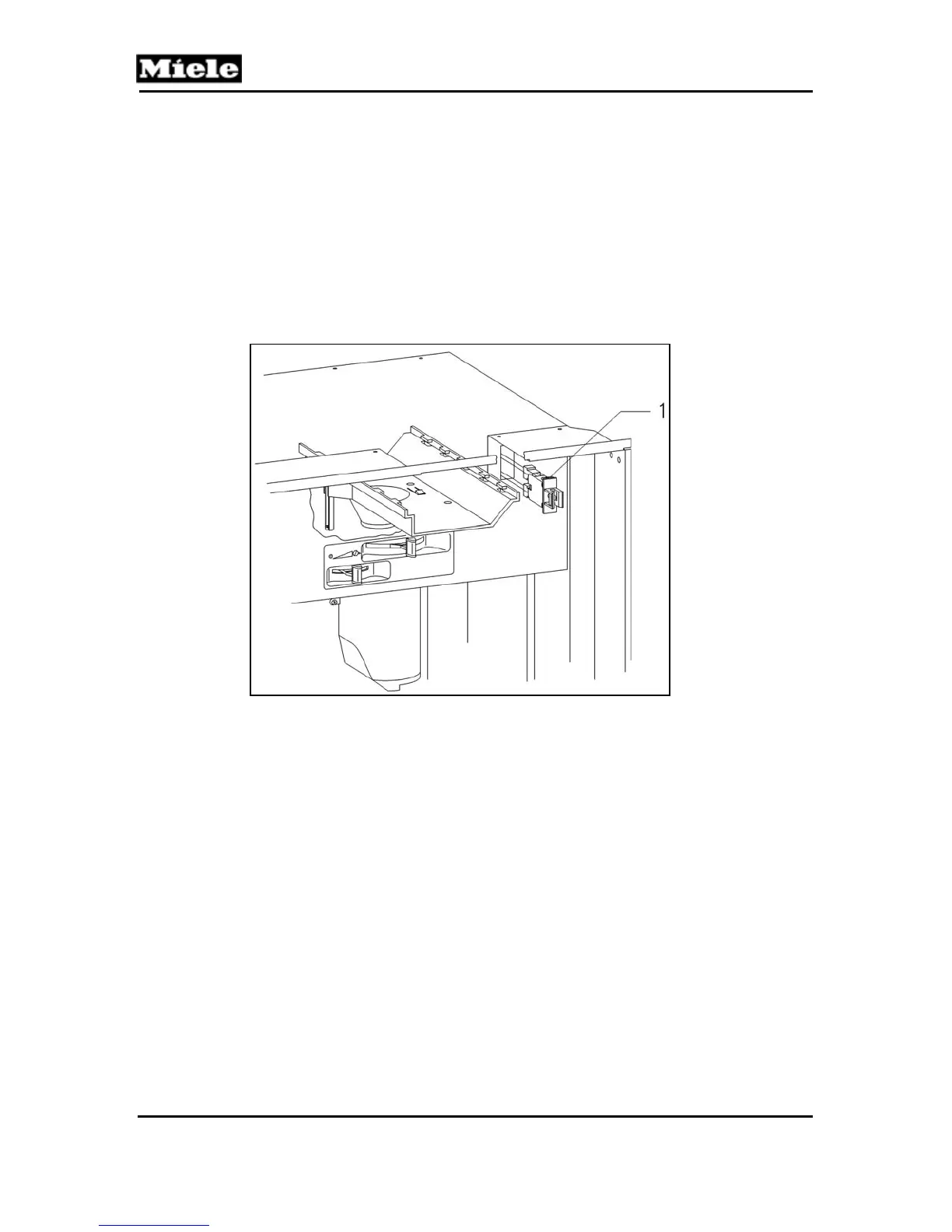

Figure 5-5: Door Switch (shown with appliance door in open position)
