5.39 Grinder Unit - Disassembly
Note
The grinder ring (Figure 5-41, Item 5), and grinder cone
(Figure 41 – Item 6), should always be replaced together.
1. Open the door.
2. Remove the Beans Container. (5.37).
3. Remove the Waste Container, Brew Unit and Water Tank.
4. Remove the Top Lid (5.1).
5. Remove the Beans Container Guide removal (5.38).
6. Set the Grinding Adjustment Lever to the mid setting.

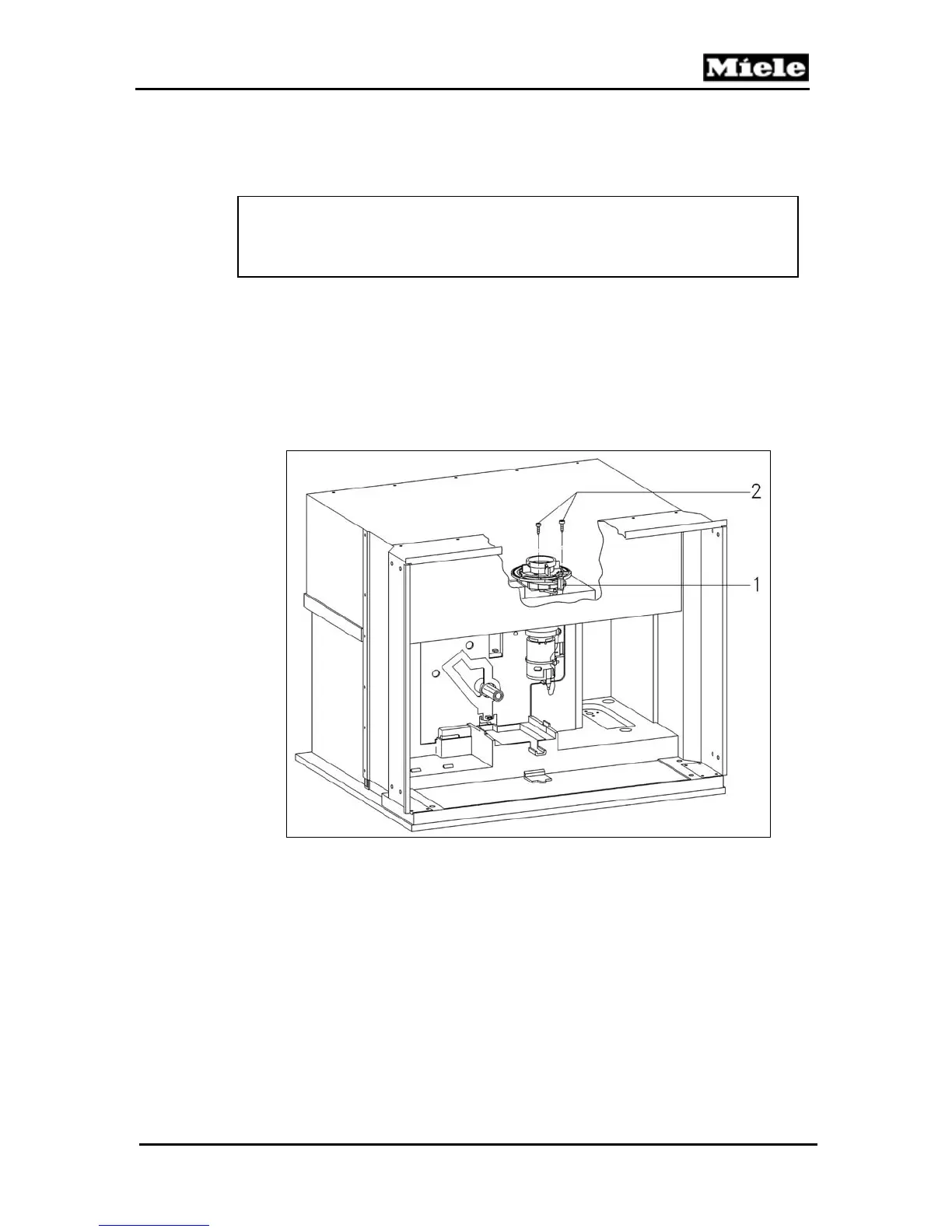

Figure 5-41: Accessing the grinder
7. Pull off the handle (Figure 5-41, Item 1).
8. Remove the adjustment lever fixing screws
(Figure 5- 41, Item 2).
9. Remove the lever.
