Refer to figure 4-5
5. The Brew Unit Drives move the Brew Unit into the “Brewing
Position” (as determined by the Brew Position Switch). The
grounds are compressed between the top filter (item 2) and
bottom filter (item 5).
6. The Water Pump is energized to pump the water through the
Hot Water / Coffee Nozzle and into the Brew Unit via the Water
Connection Socket (item 4). The hot water forces through the
brew unit and the compressed grounds (Pos 3) and exits the top
of brew unit via the drain spout (item 1).
With the door of the appliance closed, the drain spout makes
contact with the dispensing system on the front of the appliance.
The users cup is filled with coffee, as the coffee flow exits.

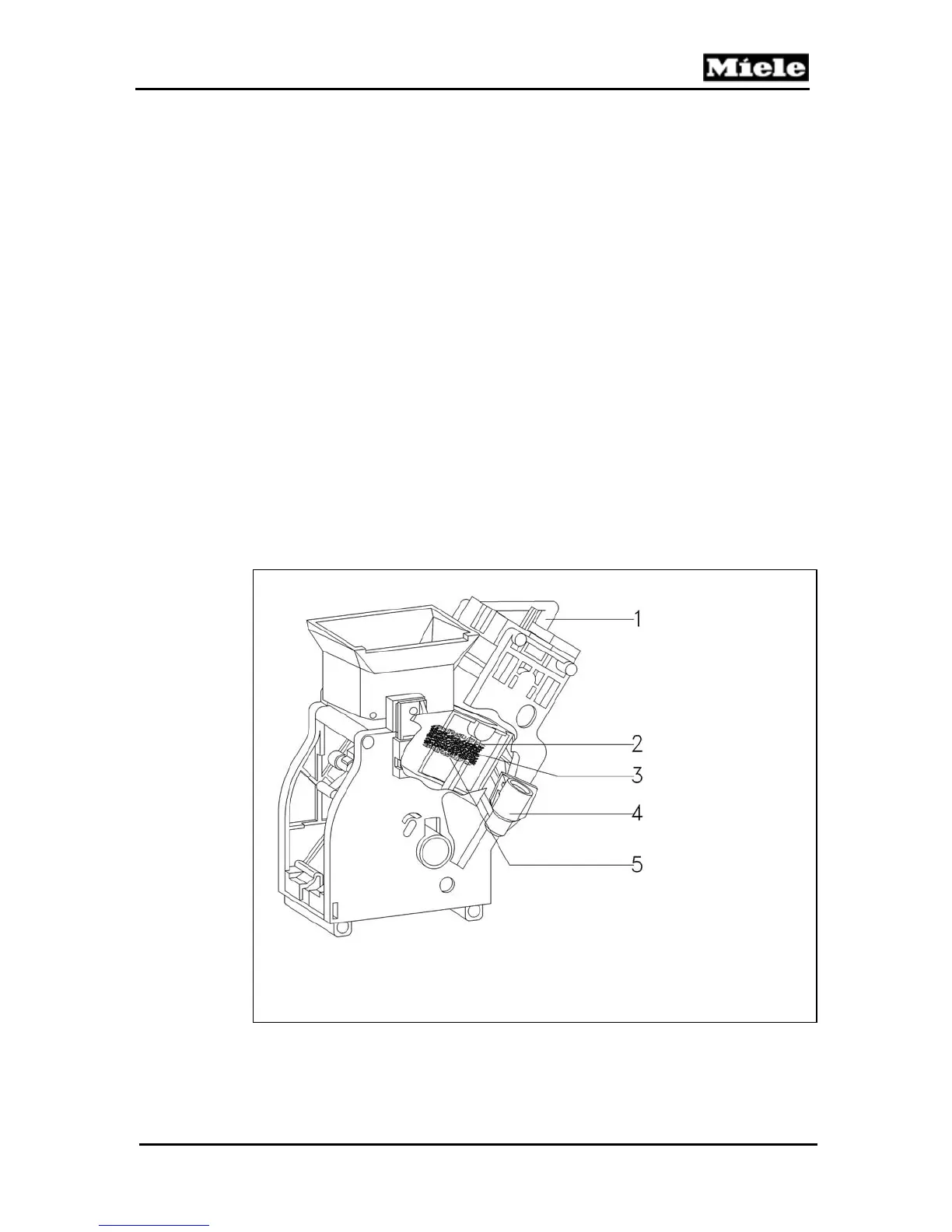

Figure 4-5: Brew Unit components.
1 Percolator Outlet
2 Top Filter
3 Compressed Coffee
4 Water Connection Socket
5 Bottom Filter
