Technical Information
20
CVA610 Coffee System
Refer to figure 4-6…
7. The drives are energized (in reverse) and move the Brew Unit
toward the “home position” position. As this action occurs the
coffee chamber moves upward and releases the used
compressed coffee grounds. (item1).
8. The drives continue, returning the Brew Unit to the “home
position” (as determined by the Home Position Switch.

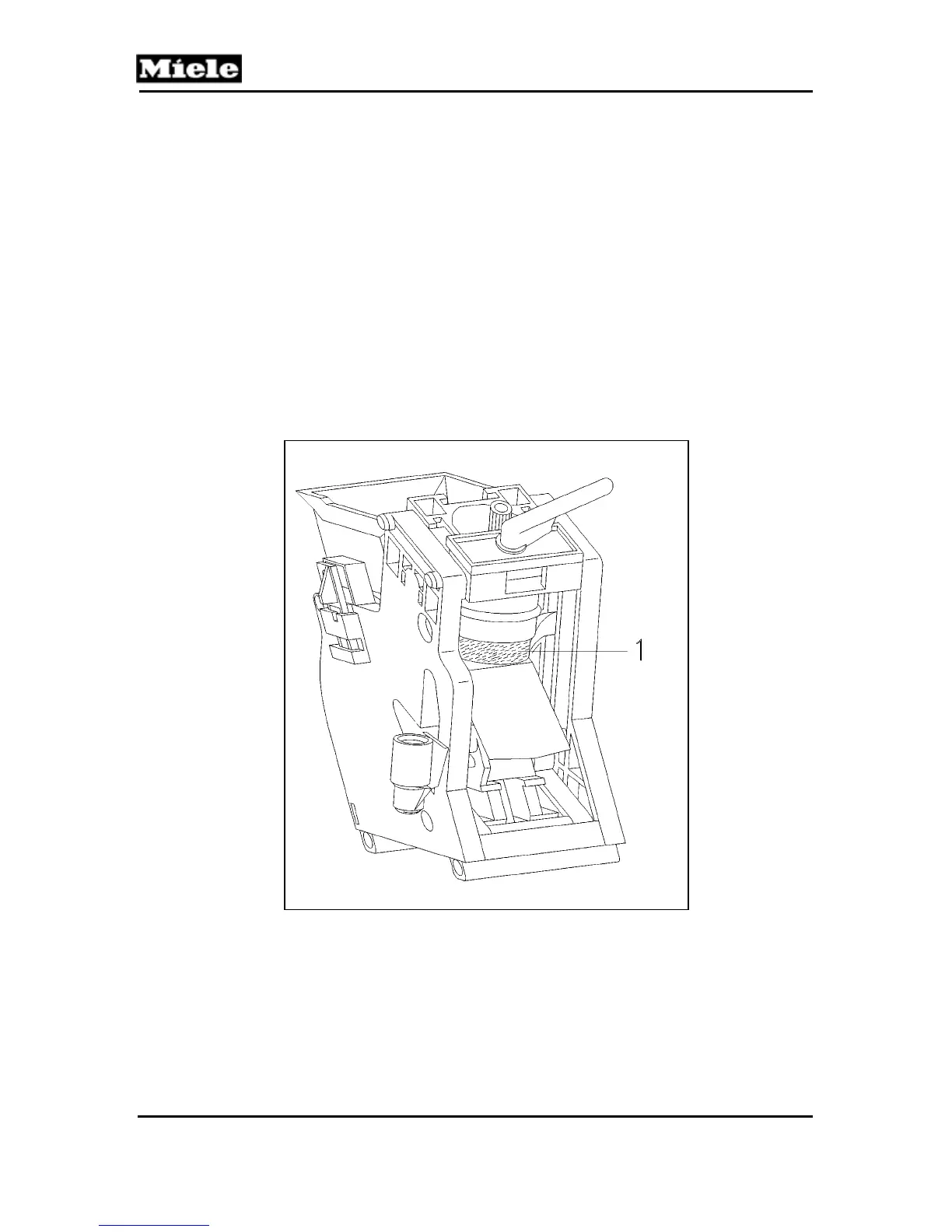

Figure 4-6: Brew Unit, showing compressed coffee “puck”.
