Technical Information
30
CVA610 Coffee System
4.13 Brew Unit Drives
Refer to figure 4-17…
The Brew Unit locks into position against the Drives Mounting
Plate. The locking mechanism Switch Lug (Item 3) activates the
Brew Unit Present Switch (Item 4). The Drive Shaft, (Item 6)
engages with the Percolator Drive Shaft Socket,

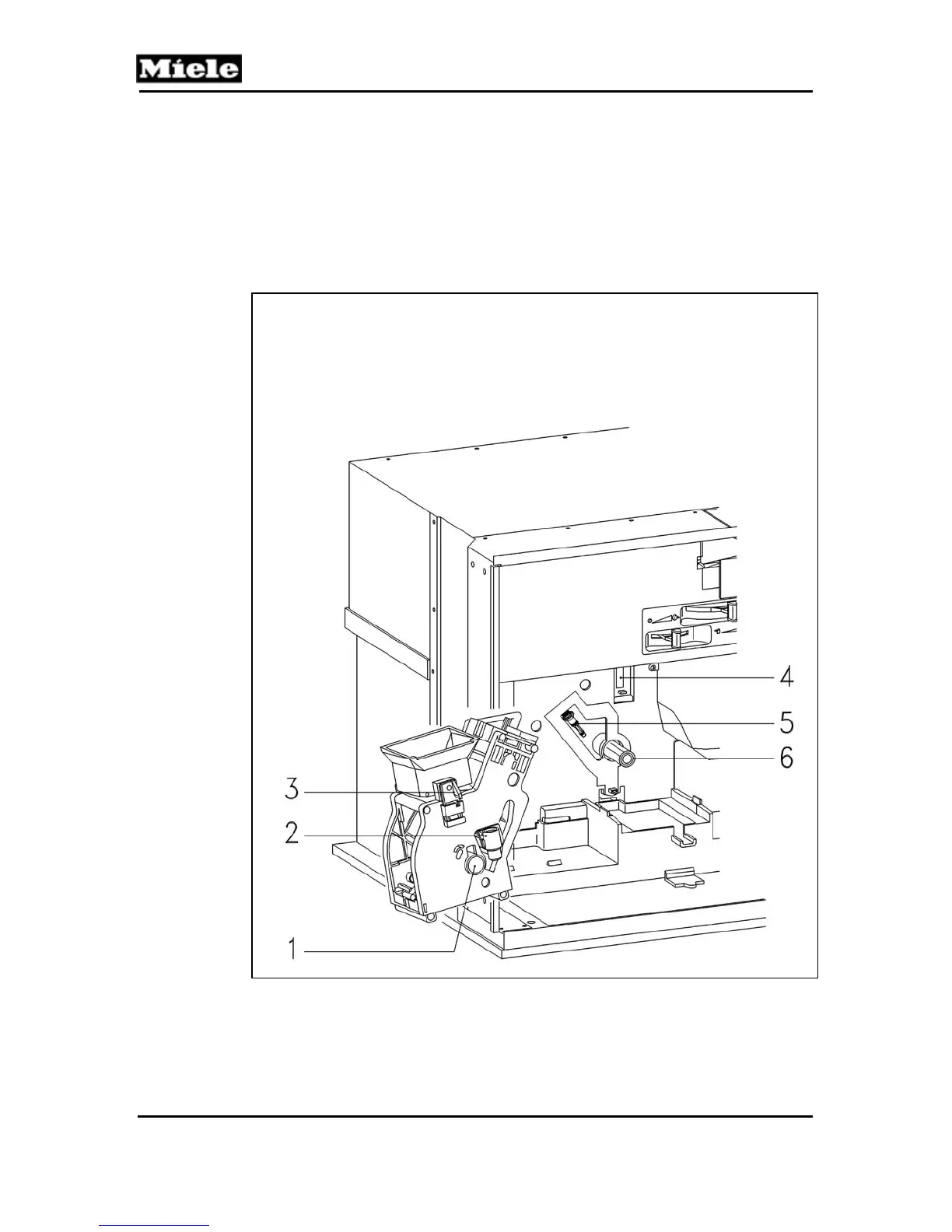

Figure 4-17: Components of the Brew Unit Drive Assembly.
1 Drive Shaft Socket
2 Socket
3 Locking Mechanism & Switch Lug
4 Brew Unit Present Switch
5 Coffee / Hot Water Heater Nozzle
6 Drive Shaft
