Miele CVA610 - Waste Unit; Waste Unit Present Switch

Technical Information
21
C
VA
6
1
0
C
offee
Sy
stem
4.6 Waste Unit
After coffee has been prepared, the compressed coffee grounds
“puck” falls into the Waste Unit. The electronic monitors the number
of the compressed “pucks”, until a specific value is reached. The
electronic then displays the “Empty Waste Unit” message to the
user.
4.7 Waste Unit Present Switch
The Waste Unit Present Switch is mounted to the bottom of the
CVA610 housing (behind the area of the Waste Unit) – as shown in
the figure 4-7.

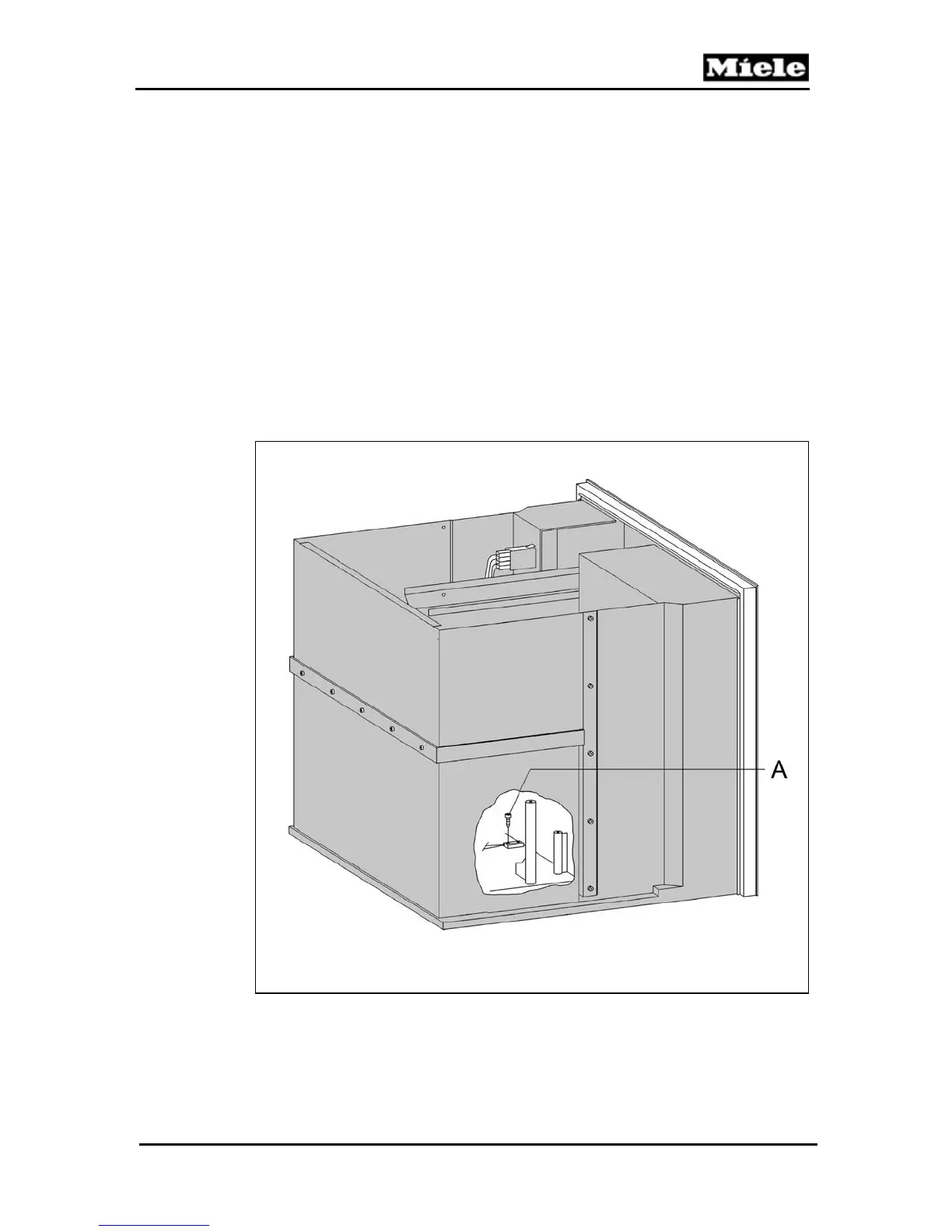

Figure 4-7: Waste Unit Present Switch.
