Miele CVA610 - Fluorescent Lamp - Removal; Lamp Starter - Removal

Technical Information
49
C
VA
6
1
0
C
offee
Sy
stem

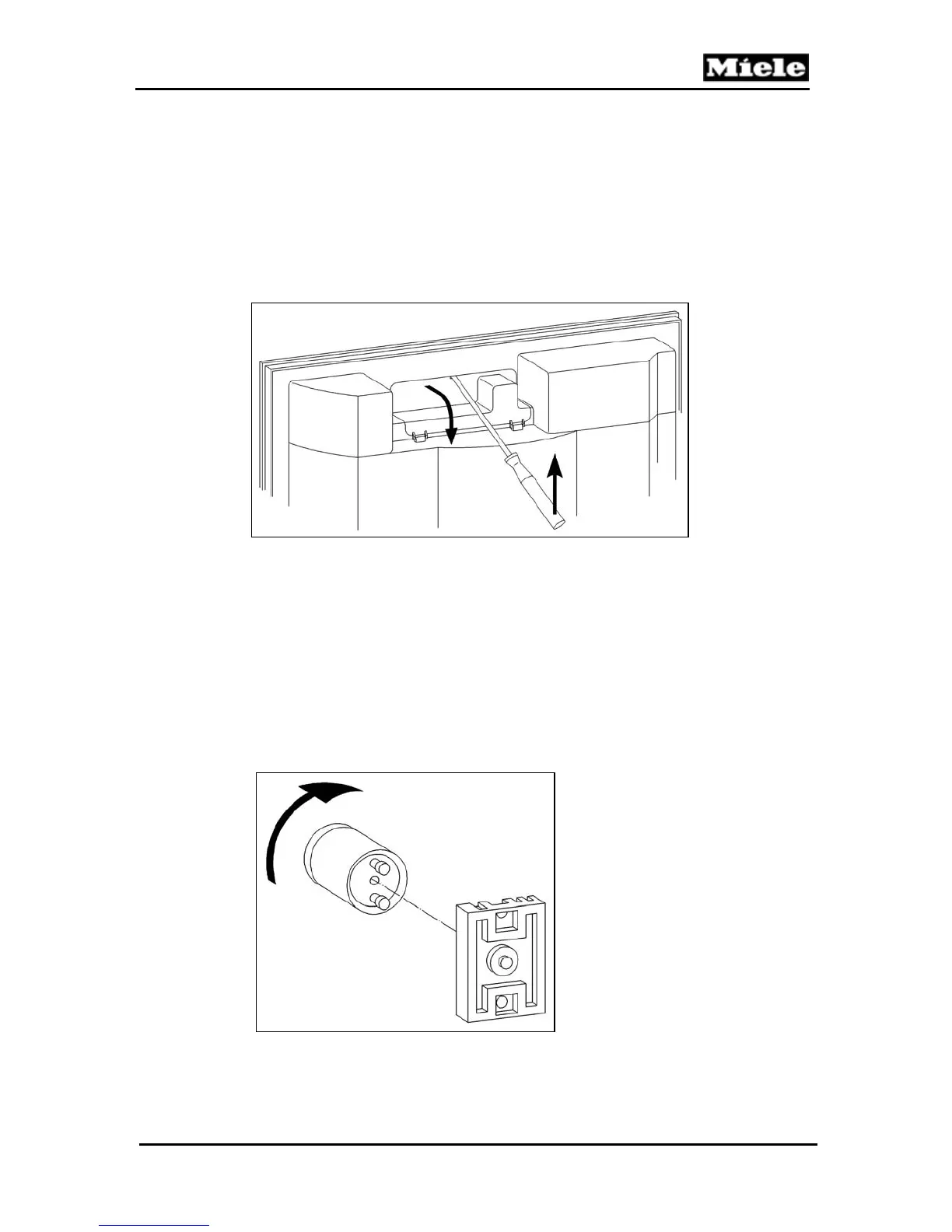

5.10 Fluorescent Lamp - Removal
Refer to the figure 5-10 below…
1. Open the door.
2. Unclip the cover and remove it.
3. Turn the lamp tube 90° in the direction to remove the lamp.
Figure 5-10: Fluorescent Lamp Access and Removal.
5.11 Lamp Starter - Removal
Refer to the figure 5-11 below…
1. Open the door.
2. Unclip the neon tube cover and remove it.
3. Turn the starter in the direction of the arrow.
4. Remove the starter.
Figure 5-11: Starter Removal
