CVA610 Coffee System
4.11 Grinder - Overload Protection
Should the grinder become blocked by a foreign object (i.e. stone /
pebble), the slip coupling interrupts the drive between the motor
and the grinder.
Refer to figure 4-13…
The Grinder Motor (item 1) drives the Mounting (item 3) via the
Carriers (item 2). This rotary force transfers through the Balls, (item
5) to the Grinder Cone (Item 6).

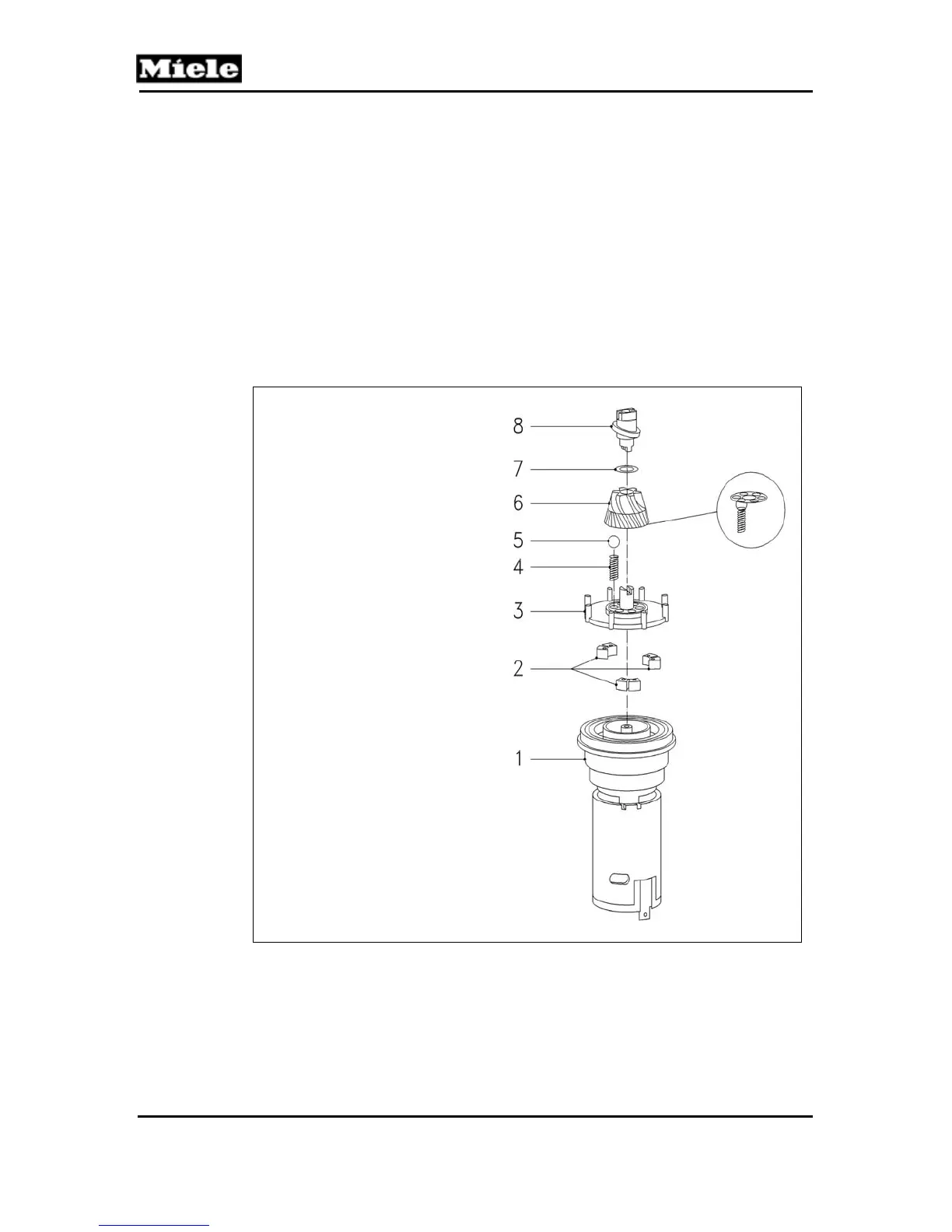

Figure 4-13: Components of the Grinder Overload Protection
1 Grinder motor
2 Carrier
3 Mounting
4 Spring
5 Ball
6 Grinding cone
7 Washer
8 Intake worm gear
