Miele S 528 - S 52 x and S 53 x Models Component Layout

Technical Information
12
S 500 & S 600 Canister Vacuums
2 S 52x and S 53x Models

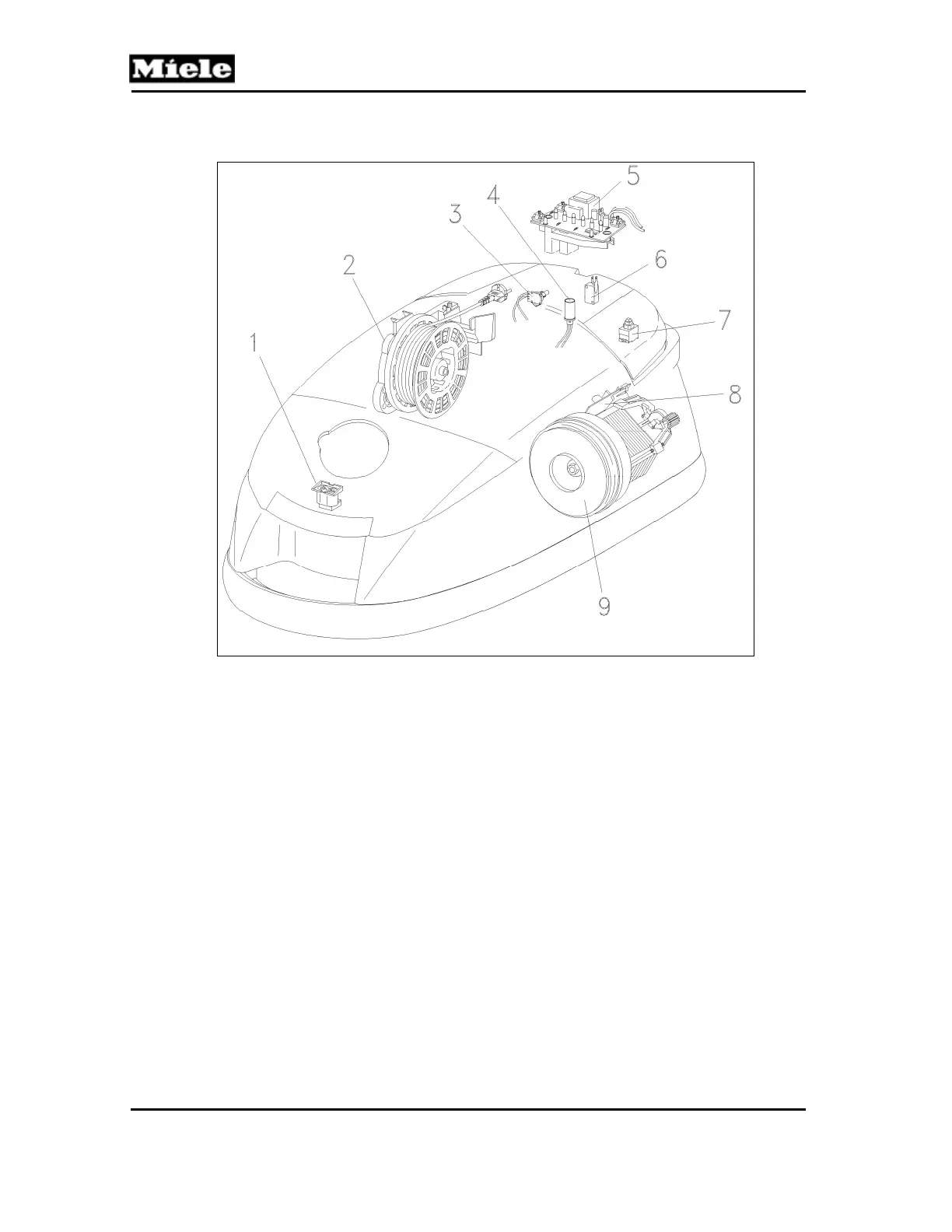

Figure D-2: S 52x and S 53x Component Layout
1
Accessory socket X1/7
6
Park System switch Q2
2
Cord reel W16
7
Main switch Q1
3
Motor speed control potentiometer R32/1
(S 52x only)
8
Motor electronic 1N2
4
Fault indicator H1/3
9
Motor M2
5
Electronic control 1N1 (not US models)
