Miele S 528 - Casing Top Catch Installation (S 500 Models); Casing Top Catch Installation (S 600 Models); Figure 020-14: Releasing the Catch; Figure 020-15: Spring Position (S 500 Models)

Technical Information
36
S 500 & S 600 Canister Vacuums

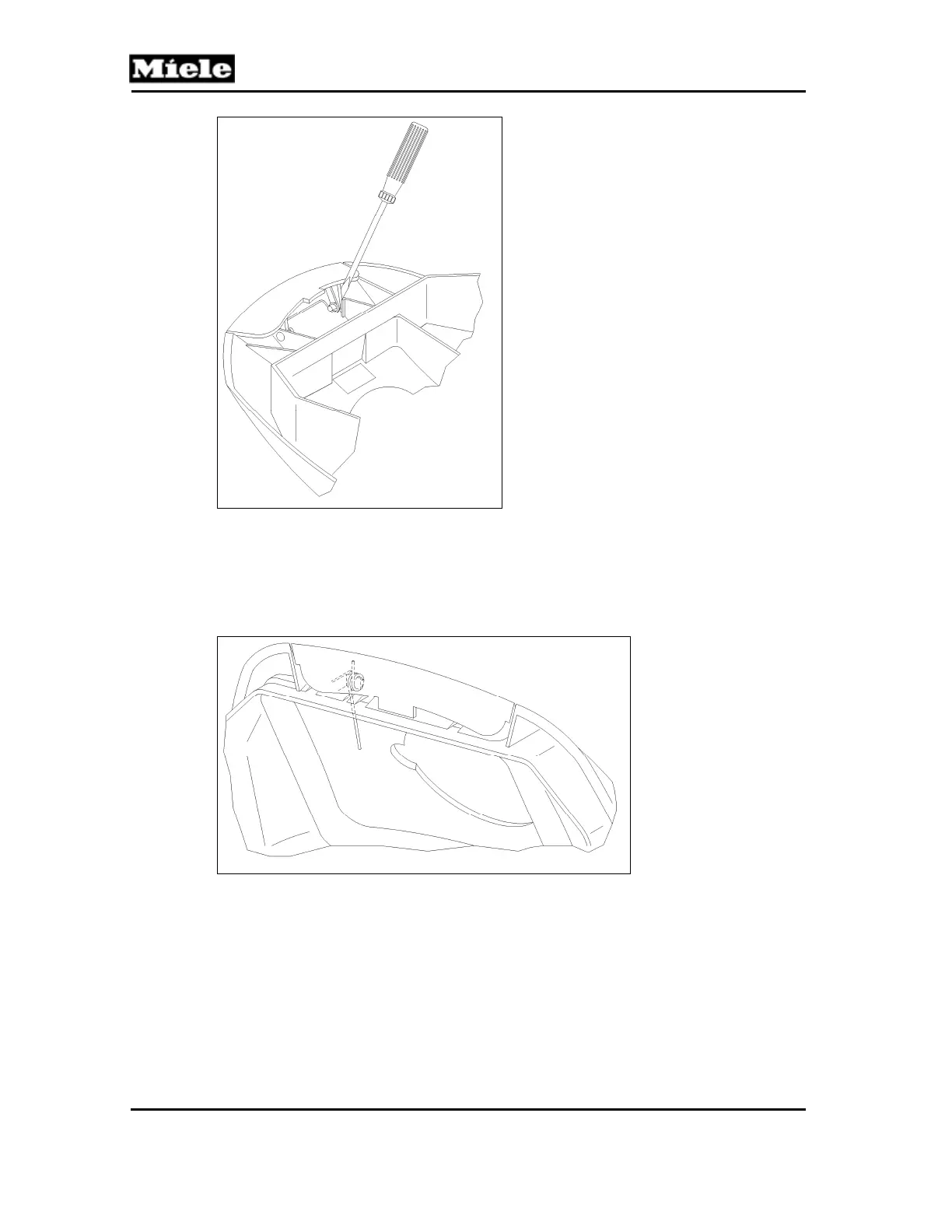

Figure 020-14: Releasing the Catch
4.12 Casing Top Catch Installation (S 500 Models)
1. Install the spring on its holder on the catch; see Figure 020-15.
2. Insert the spring through the slot and place the catch in position on the
casing top. See Figure 020-15.
Figure 020-15: Spring Position (S 500 Models)
3. For further assembly, see Slide Sleeve and Dust Channel Installation,
Section 020-4.8.
4.13 Casing Top Catch Installation (S 600 Models)
1. Install the spring on its holder on the catch; see Figure 020-16, Item 1.
2. Re-install the catch in the casing top.
