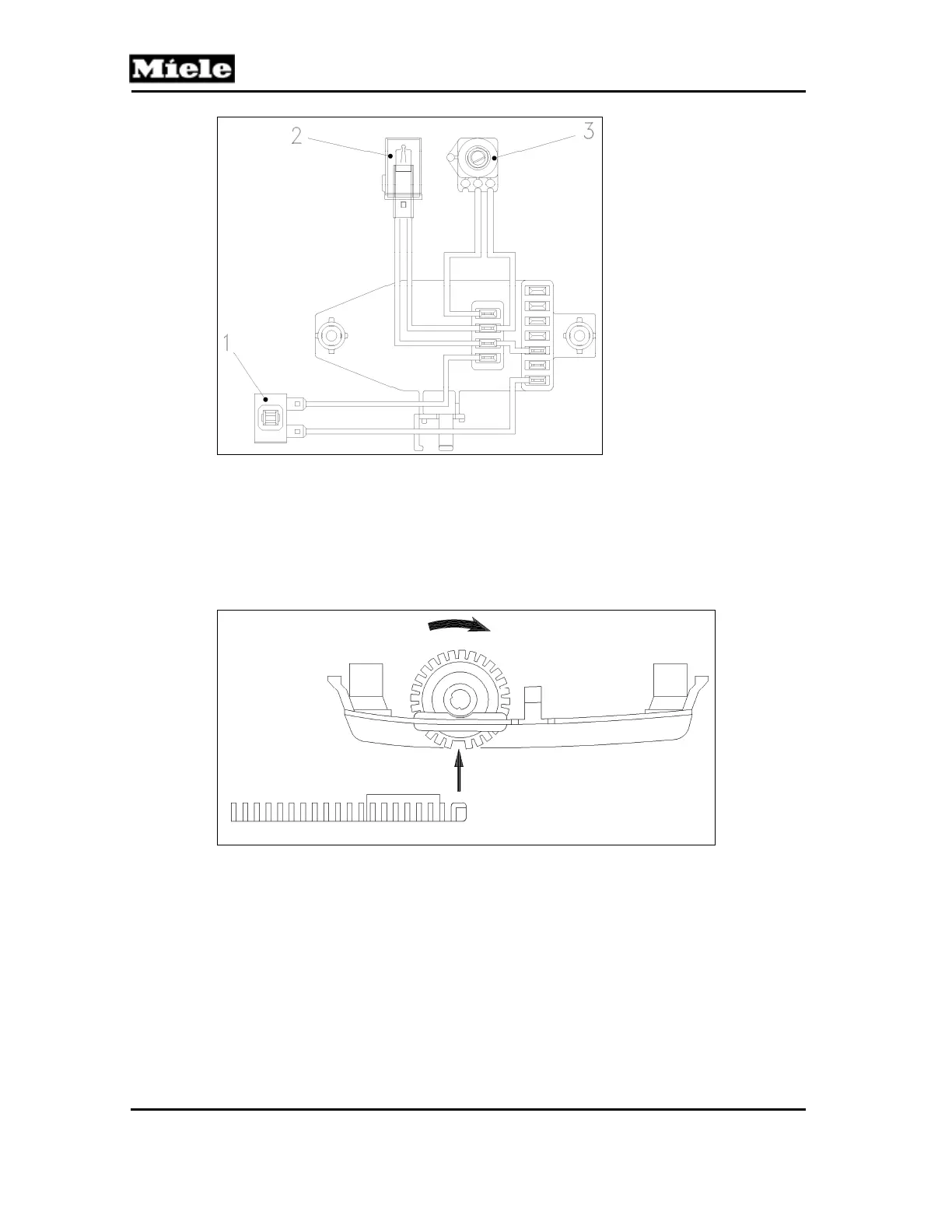

Figure 030-18: Plug Housing (S 52x, S 62x)
9. Slide the cog wheel loosely onto the potentiometer.
10. Locate both in the bracket, then slide the cog wheel firmly onto the
potentiometer.
11. Push the slide to the maximum setting and hold it there.
12. Turn the cog wheel to its end stop. See Figure 030-19. Hold it in position
and install the bracket.
Figure 030-19: Position of Gear Rack and Cog Wheel (S 52x, S 62x)
4.10 Gear Rack Removal and Installation (S 52x, S 62x)
1. Remove the plug housing. See Section 030-4.7.
2. Use a screwdriver to release the indicator light locking tabs. See Figure
030-17, Item 1. Remove the indicator light.
3. Use a screwdriver to release the 4 bracket locking tabs. See Figure 030-
17, Item 2. Remove the bracket.
4. Push the slide to a middle setting. Slide off the gear rack; see Figure 030-20.
1 Switch
2 Indicator light (if applicable)
3 Potentiometer
