S 500 & S 600 Canister Vacuums

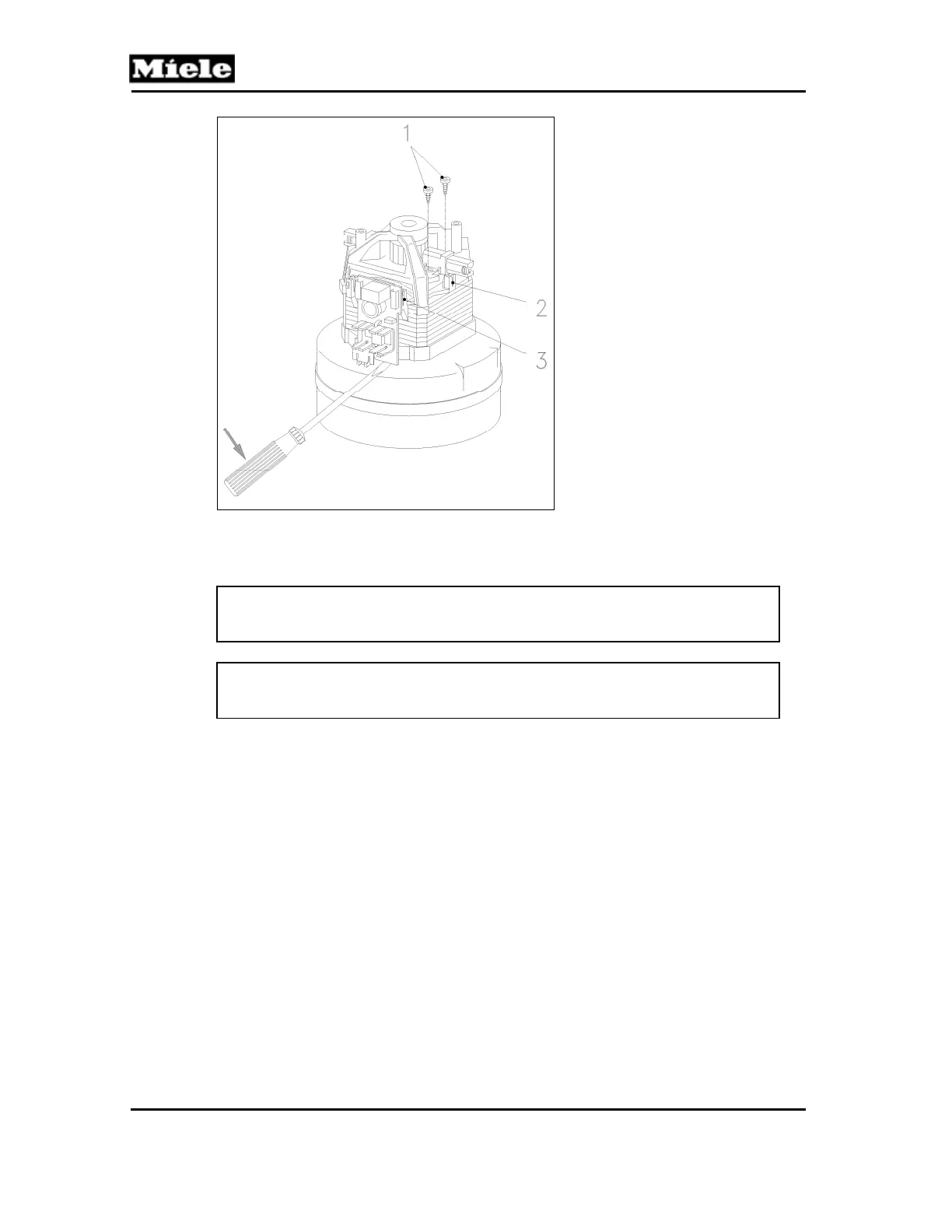

Figure 040-2: Carbon Brushes and Electronic
4. When installing, ensure that the plug contact (Figure 040-2, Item 2)
engages correctly.
Note:
Always replace both carbon brushes.
Warning!
Check the commutator for cord lines and burn marks.
4.4 Motor Electronic Replacement
1. Remove the motor. See Section 040-4.1.
2. Lever the electronic from the motor with a screwdriver; see Figure 040-2.
3. When installing, ensure that the plug contacts (Figure 040-2, Item 3)
engage correctly.
