Miele S 528 - S 65 x Models Component Layout

Technical Information
15
S
500 & S 600 Canister Vacuums
5 S 65x Models

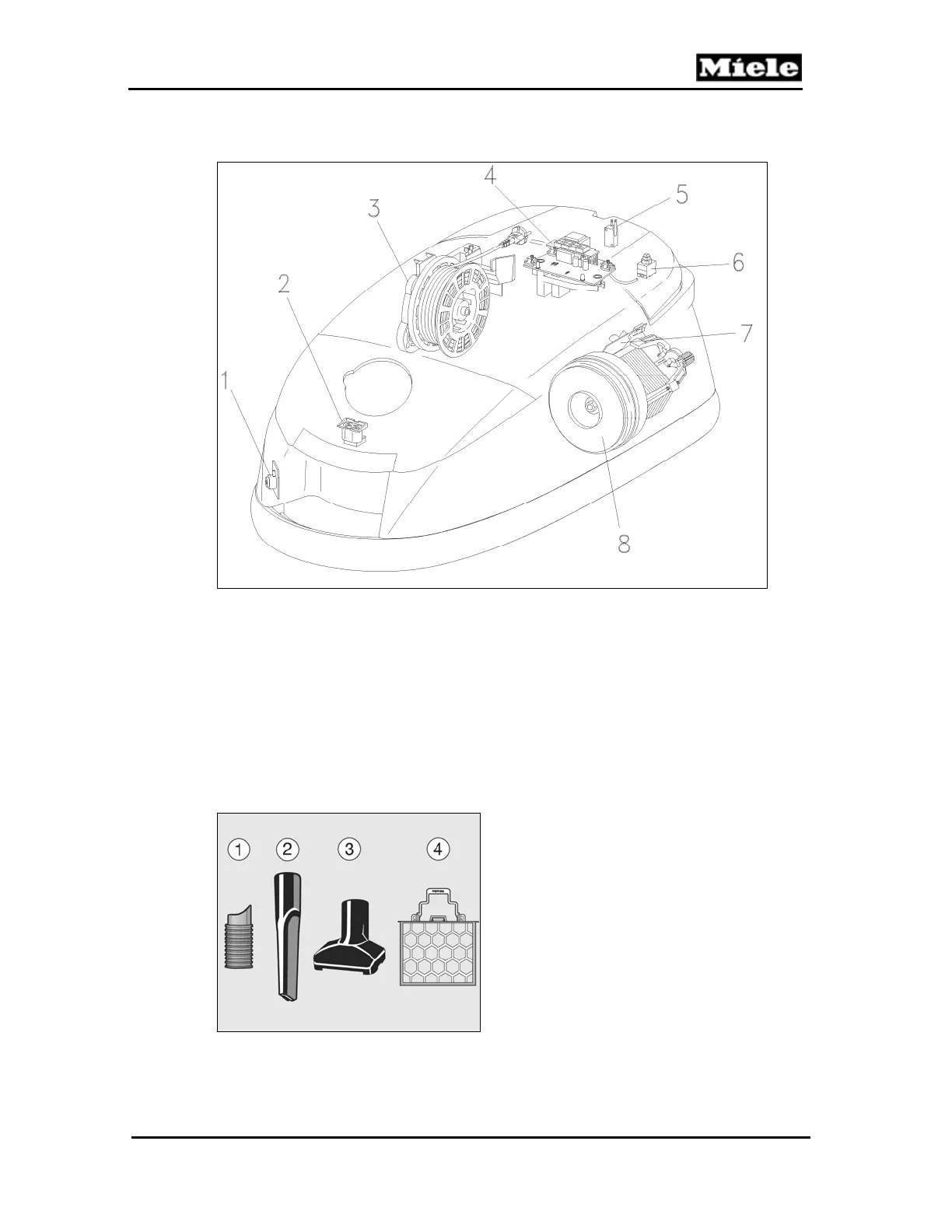

Figure D-5: S 65x Component Layout
1
Vacuum pressure monitor B9/2
(not US models)
5
Park System switch Q2
2
Accessory socket X1/7
6
Main switch Q1
3
Cord reel W16
7
Electronic power control 1N2
4
Electronic control 1N1
8
Motor M2
6 Accessories
The items shown in Figure D-6 are included with the vacuum cleaner.
Figure D-6: Accessories
1 Accessory adapter
2 Crevice nozzle
3 Upholstery tool
4 Filter frame
