Miele S 528 - Figure 020-24: Install the Cover on the Cord Guide; Figure 020-25: Laying the Wires in the Cord Guide

Technical Information
41
S
500 & S 600 Canister Vacuums
4. Feed the hinge and cord guide with cover through the opening and
connect them together. The hinge can only be passed through the opening
in the position shown in Figure 020-21.
5. Install the hinge. Turn the hinge so that the locking tab (Figure 020-20,
Item 1) lines up with the hinge slot (Figure 020-20, Item 2).
6. Turn the hinge upwards and install the cover on the cord guide. See arrow,
Figure 020-24.

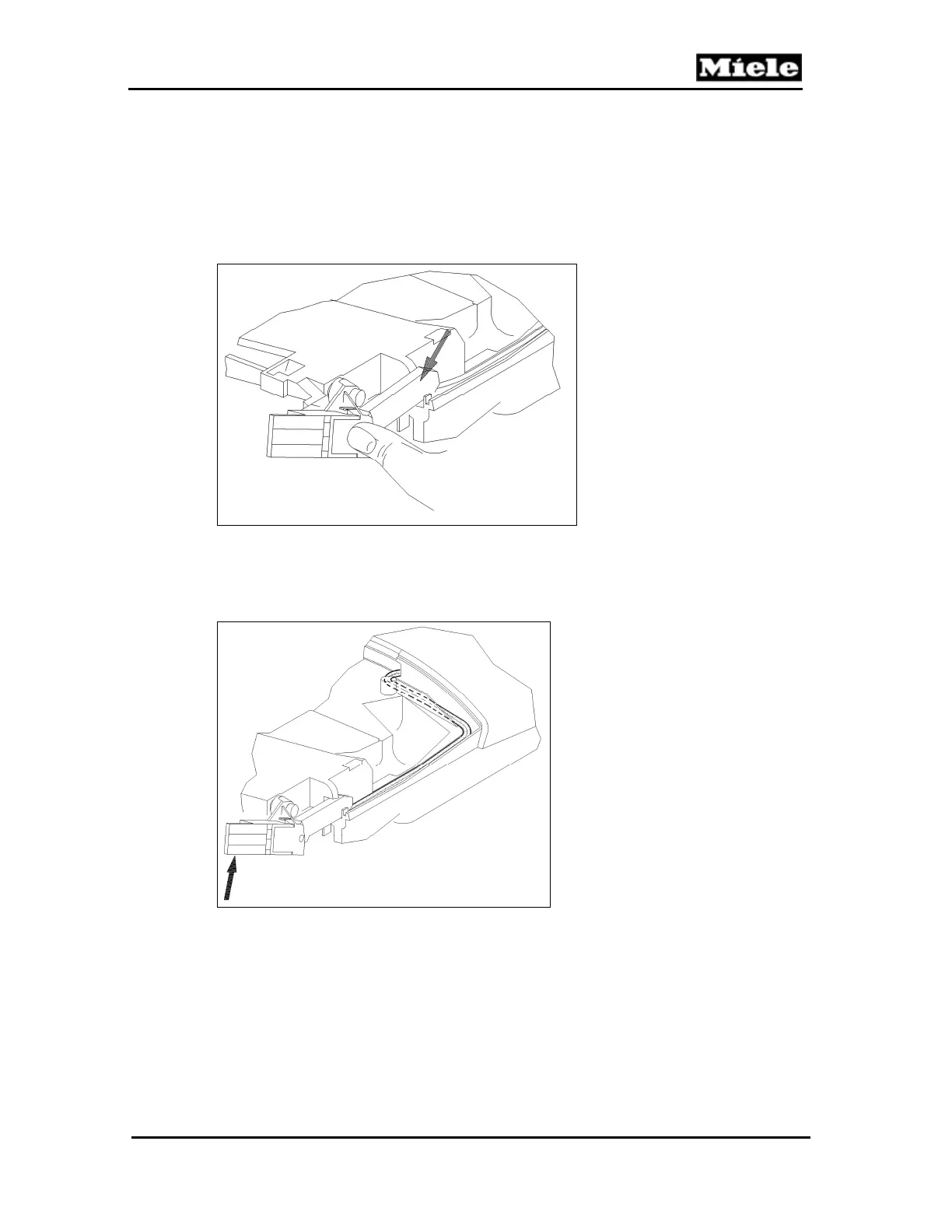

Figure 020-24: Install the Cover on the Cord Guide
7. Hold the hinge upwards and lay the wires in the cord guide; see Figure 020-
25. Install the cover strip by clipping its tabs into position in reverse order
(Figure 020-17, Items 3, 2 and 1).
Figure 020-25: Laying the Wires in the Cord Guide
