Miele S 528 - Casing Top Removal; Figure 020-4: Accessory Compartment Lid Removal; Figure 020-5: Casing Top Removal

Technical Information
29
S
500 & S 600 Canister Vacuums

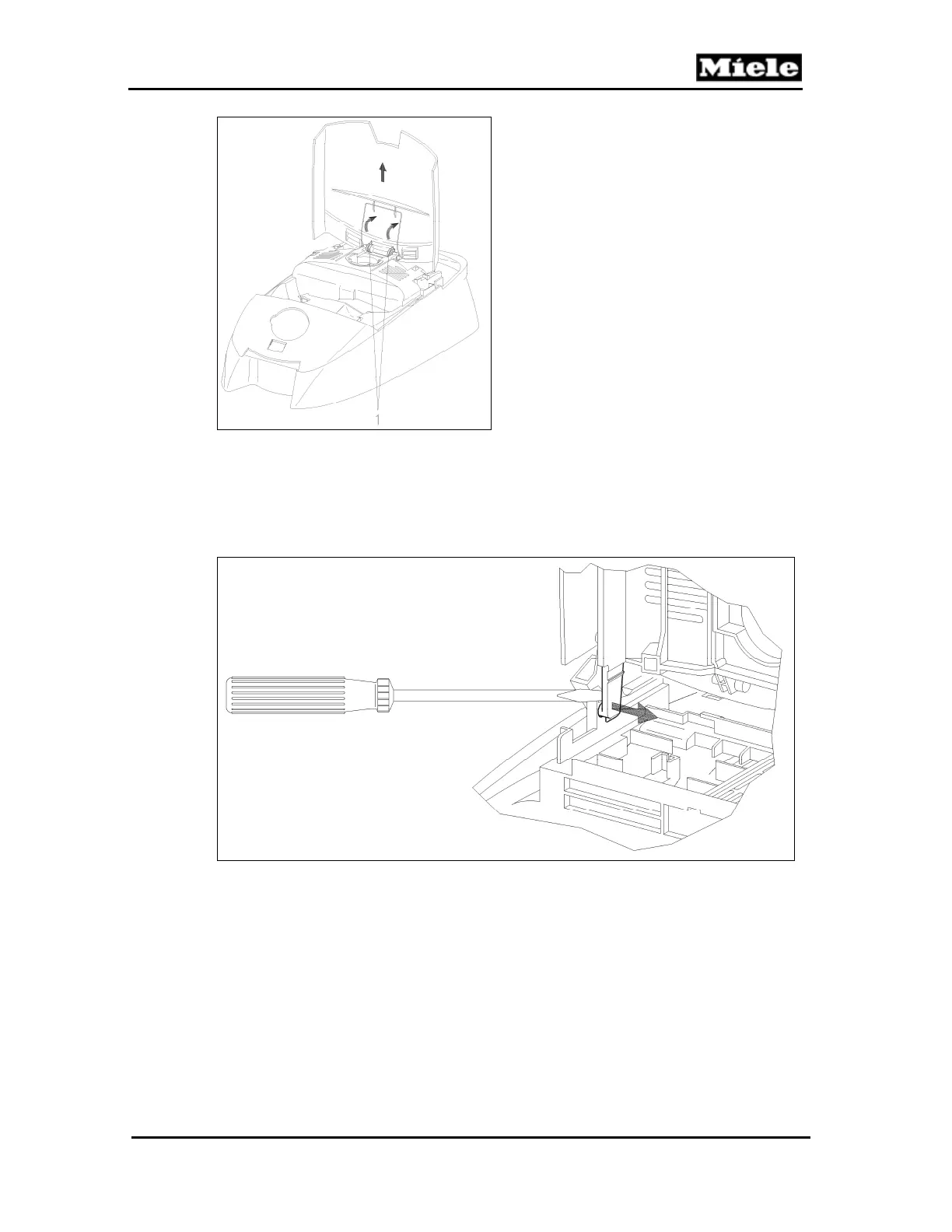

Figure 020-4: Accessory Compartment Lid Removal
4.2 Casing Top Removal
1. Open the casing top wide to its end stop.
2. Remove the filter.
3. Use a screwdriver to lever the hinge arms free, Figure 020-5.
Figure 020-5: Casing Top Removal
